KOMUNICA PWR-D-3000 Compact discone antenna 75 Mhz to 3 Ghz PL connector

PWR-D-3000

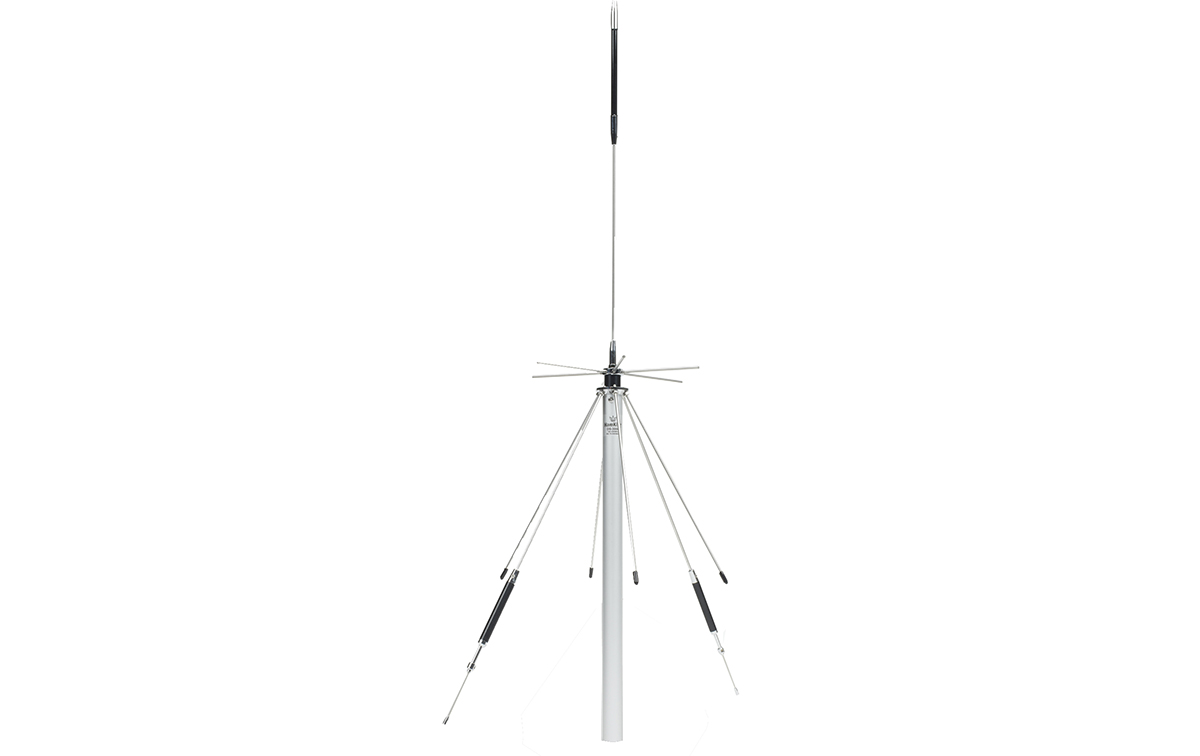

The Komunica PWR-D-3000 base antenna is a discone designed for the reception of signals in a wide range of frequencies, from 75 MHz to 3000 MHz. This antenna is especially useful for scanners and receivers that want to pick up a variety of frequencies, such as those used in amateur radio, emergency communications, radio broadcasting and other similar applications.

The main features of this antenna are:

Frequency Range: 75 MHz to 3000 MHz, covering a wide range of frequencies used in various communications.

Antenna Connector: The antenna has a PL female connector (also known as a SO-239 or UHF female connector), which means it can be connected to coaxial cables with PL male (UHF male) connectors.

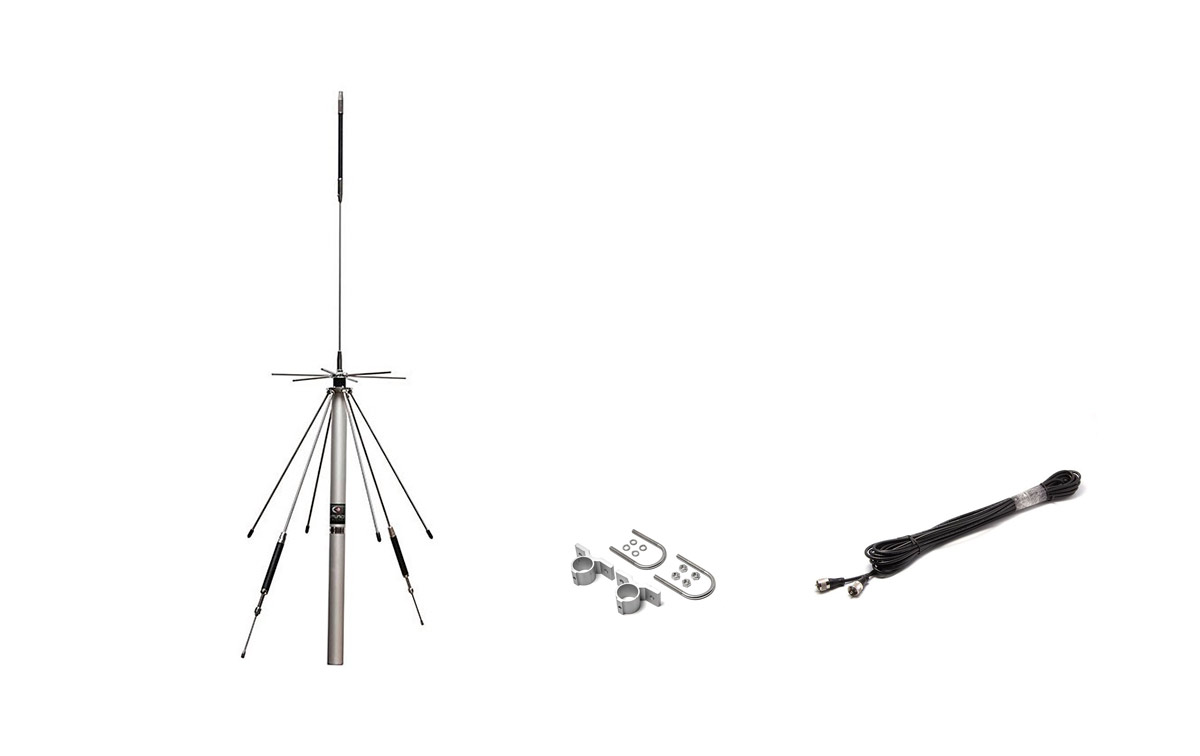

Cable Length: Supplied with a 10 meter long coaxial cable. The cable is RG-58 type and has male PL connectors at both ends. RG-58 is a type of coaxial cable commonly used in radio frequency applications.

Antenna Type: This antenna is a discone, which is a type of broadband antenna that provides a relatively uniform response over a wide range of frequencies.

The Komunica PWR-D-3000 base antenna is a convenient option for those looking for a broadband antenna for signal reception in the frequency range of 75 MHz to 3000 MHz. Its disconne design and 10-meter coaxial cable with Female and male PL connectors make it suitable for scan and receive applications on a variety of bands and frequencies.

Characteristics

• Reception frequency 75 Mhz- 3 Ghz
• Transmission frequency 144/ 430 / 1200 MHz
• maximum power 50 watts
• length 87cm
• Impedance 50 ohms
• female PL connector
• Weight 690 grams.
