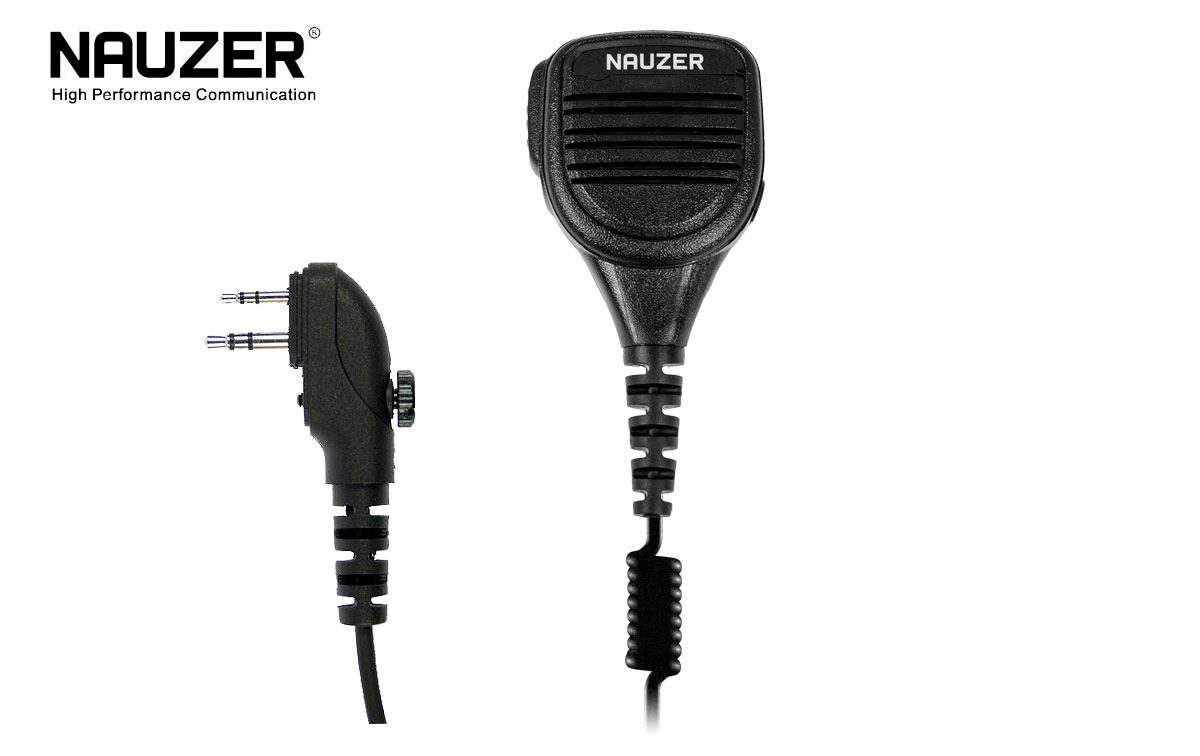

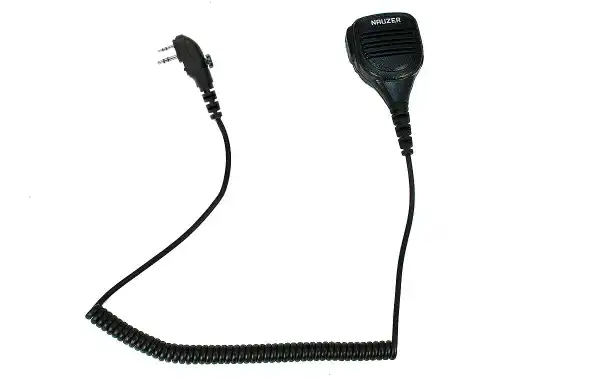

MIA120H3 NAUZER micro-speaker for HYTERA HYT ZODIAC D80 and D400

MIA120H3 NAUZER micro-speaker. For HYTERA BD500, BD505, BD505LF, BD612i, BD615, BD556 walkies. BD566 UL913, PD505LF, PD530,PD560, PD565, PD505, PD415, PD485, TD500, TD560, TD580. ZODIAC D80 and D400 and the old HYT: TC610, TC-620, TC-700

Make the first review
NOTIFY
not available

Description NAUZER MIA120H3

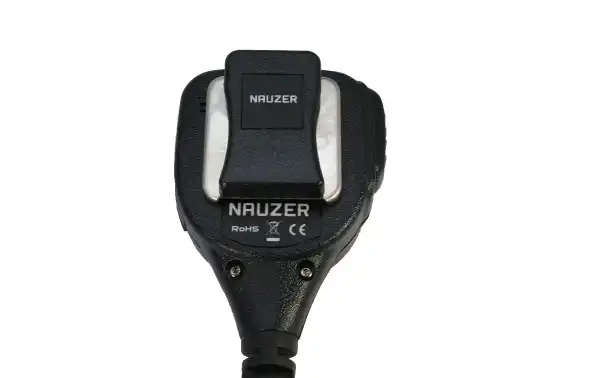

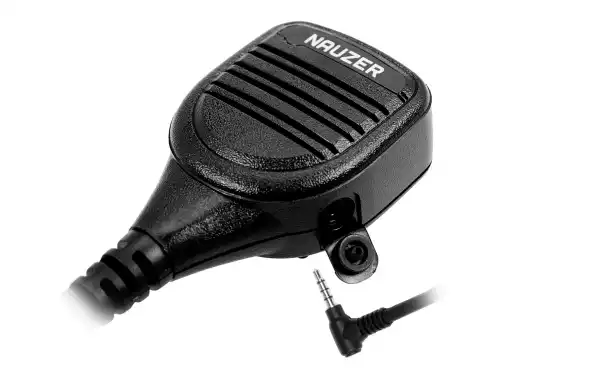

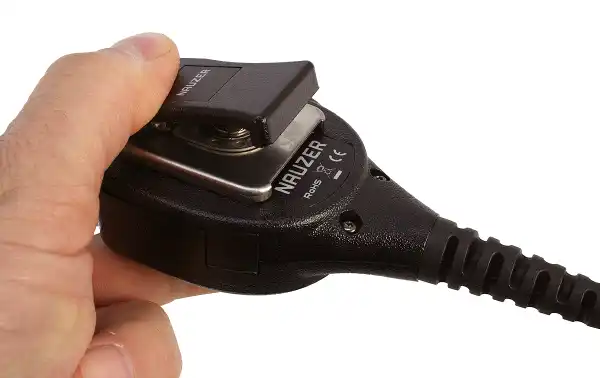

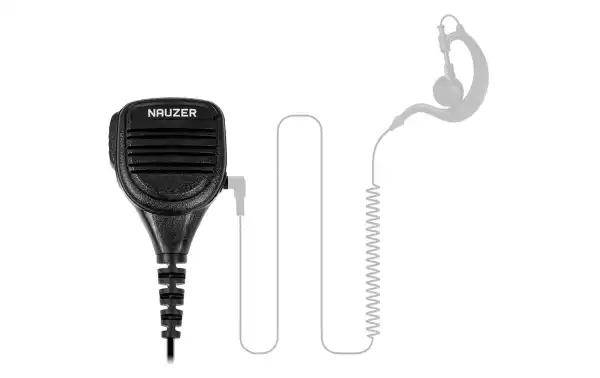

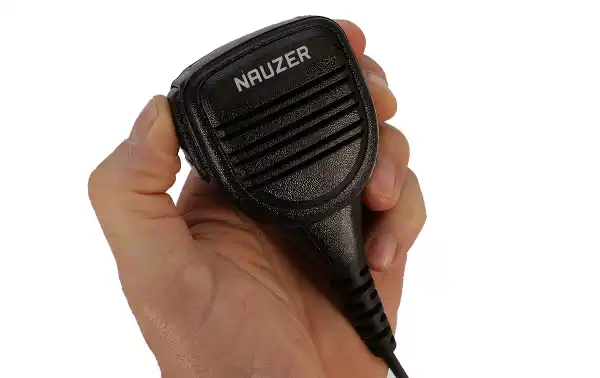

MIA120H3 NAUZER micro-speaker. For HYTERA BD500, BD505, BD505LF, BD612i, BD615, BD556 walkies. BD566 UL913, PD505LF, PD530,PD560, PD565, PD505, PD415, PD485, TD500, TD560, TD580. ZODIAC D80 and D400 and the old HYT: TC610, TC-620, TC-700 High quality professional speaker microphone with oversized PTT button. Includes 3.5 mm connection for external headphones. The extra-resistant housing of this microphone combines perfectly with its rotating stainless steel clamp, turning the MIA120 into an accessory prepared to withstand the harshest working circumstances. The 5.5 mm PU cable of this microphone incorporates a spiral part for greater comfort of movement and to ensure maximum resistance to pulling. The MIA120 series has been manufactured in compliance with the IP54 level sealing protection regulations. External earphone connection type ref. PIN09AS and PIN10AS
Note: The earpiece is not included with the microphone.

mia120h3 nauzer micro-altavoz. para walkies hytera bd500, bd505, bd505lf, bd612i, bd615, bd556. bd566 ul913, pd505lf, pd530,pd560, pd565, pd505, pd415, pd485, td500, td560, td580. zodiac d80 y d400 y los antiguos hyt: tc610, tc-620, tc-700

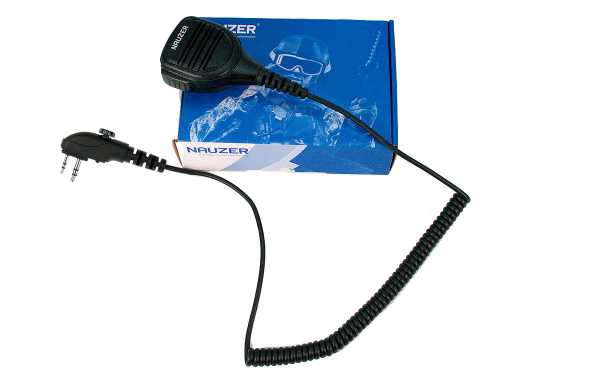

Kit content
  • 1 MIA120-H3

mia120tph700 nauzer micro-altavoz para matra eads jupiter tph-700 tetrapol

Characteristics

  • Speaker:
  • Diameter: 45mm
  • Output Level: 94dB
  • Input power: 2W
  • Output impedance: 8 Ohms
  • Microphone:
  • Element type: Electric capacitor
  • Diameter 6 x 2.7 mm
  • Sensitivity: -40 dB
  • Output impedance: 2.2K Ohms
  • Frequency 20-16000hz

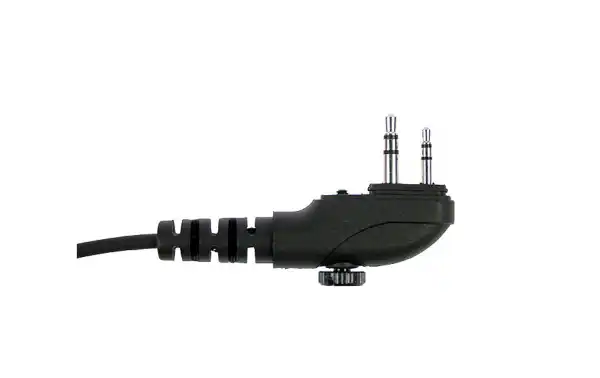

  • 2 pin type connector
