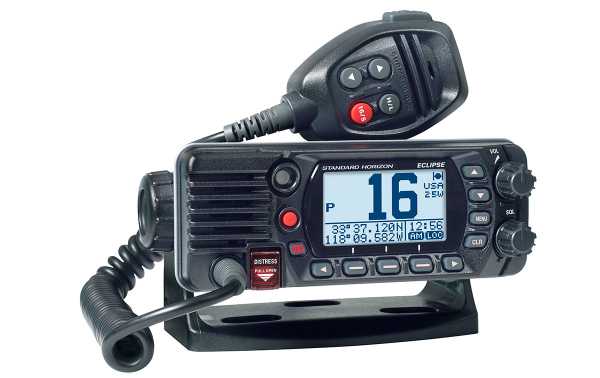

STANDARD HORIZON GX-1400 GPS/E Nautical Station VHF GPS DSC

GX-1400-GPS BLACK

STANDARD HORIZON GX-1400-GPS-BLACK. Nautica station. Color Black. For the practice of nautical sports it is advisable to properly equip ourselves with the safety elements that allow us to enjoy our hobby without worries. Marine band mobile transceiver Approved by the European Union ITU Class-D DSC and by the General Directorate of the Spanish Merchant Marine, DGMM The GX1800G provides DSC. With an internal 66 channel GPS built into the front panel, there is no need to connect the radio to a GPS for DSC
Easy DSC installation!
The GX1400G facilitates DSC. With an internal 66 channel GPS built into the front panel, there is no need to connect the radio to a GPS for DSC. Out of the box and ready to go, DSC calls and position swapping can be done with just a few simple steps.
ITU-R M493-13 Class D digital selective calling
The GX1400 Eclipse series is an ITU-R M493-13 Class D VHF with a separate 70 channel receiver, allowing DSC calls to be received even when listening to communications.
The DSC DISTRESS function when activated transmits a digital MAYDAY that includes the vessel identification, latitude / longitude and time, to facilitate a quick response. Additional calls that can be made are Individual, Urgency, Security, Position Report, and Send.
New dot matrix display
The high resolution dot matrix display makes navigating the radios many functions smooth and easy. Now with a new brighter backlight for better screen contrast
Easy to operate E2O menu system
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.

Coverage:
RX RECEPTION: 156.025 - 161.600 Mhz
TX TRANSMISSION: 156.050 - 163.275 Mhz

Characteristics

• Integrated 66-channel WAAS GPS receiver
• Power 25 watts / 1 watts
• Voltage 12 volts
• Impedance 50 ohms
• PL female antenna connector
• Ultra-compact and affordable Class D fixed mount VHF radio
• Complies with ITU-R M493-13 Class D DSC (Digital Selective Calling)
• Replaces older Eclipse and Eclipse DSC models
• Radio controls on the microphone
• Easy-to-operate menu / icon system E2O
• Large full dot matrix display (31mm x 55mm)
• Built-in separate receiver for CH70 (receiving DSC calls)
• DSC test call and automatic DSC channel change selection
• GPS position and time displayed on a full dot matrix display
• NMEA input and output connections to a compatible GPS chartplotter
• Programmable soft keys
• Automatically poll the GPS position of up to 6 boats using DSC
• Submersible IPX8 waterproof rating (1.5m or 4.92ft for 30 minutes)
• All US / International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA Weather Channel Selection with Weather Alert
• Programmable scan, priority scan, and dual watch

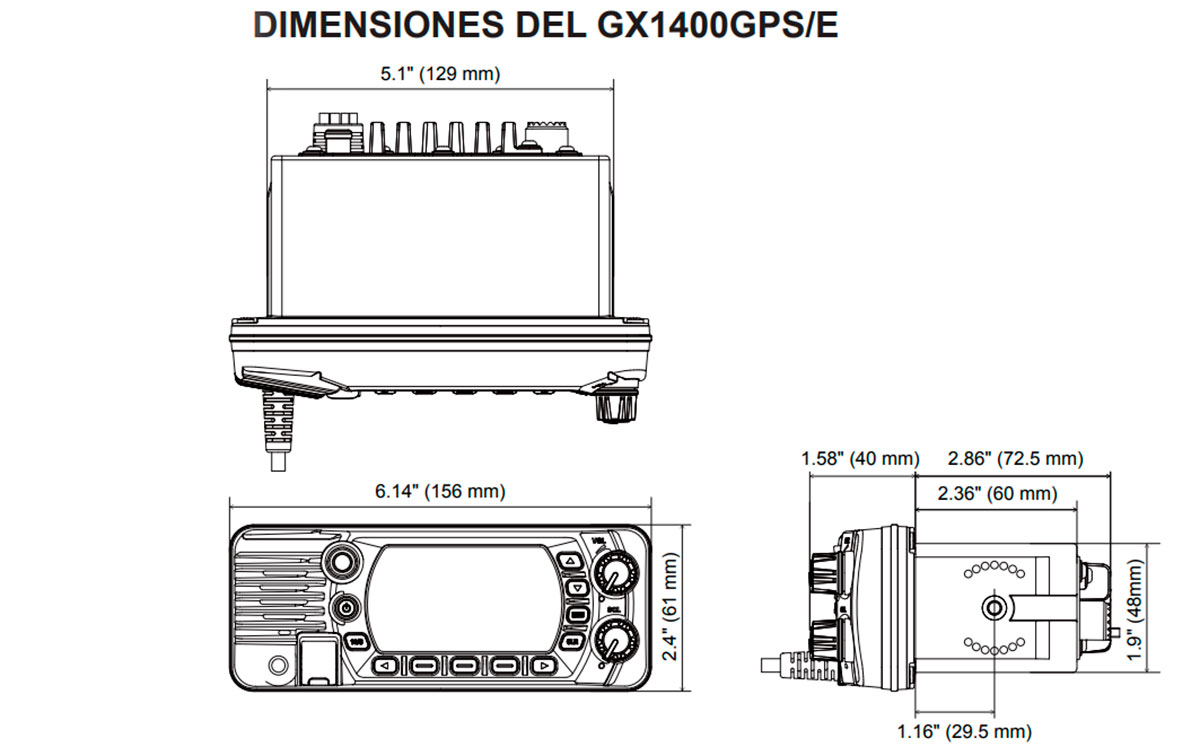

• Dimensions 156 x61 x 100 mm
• Weight 800 gr.
