COMET
Reference H422 | COMET

H-422 COMET ANTENNA. HF rigid dipole Frequencies: 7-14-21-28 Mhz

H-422 COMET ANTENNA. HF rigid dipole Frequencies: 7-14-21-28 Mhz Frequencies: 7, 14, 21, 28 Mhz Power: 1Kw SSB Length: Horizontal: 10.3 meters In V: 7.4 meters SWR: 1.5:1 Weight: 5.4 Kg. Wind resistance: 35m/sec Mast diameter

discontinued

Description COMET H422

Comet H-422

H-422 COMET ANTENNA. HF rigid dipole HIGH QUALITY !! Frequencies: 7, 14, 21, 28 Mhz Power: 1Kw SSB Length: Horizontal: 10.3 meters In V: 7.4 meters SWR: 1.5: 1 Weight: 5.4 Kg. Wind resistance: 35m / sec

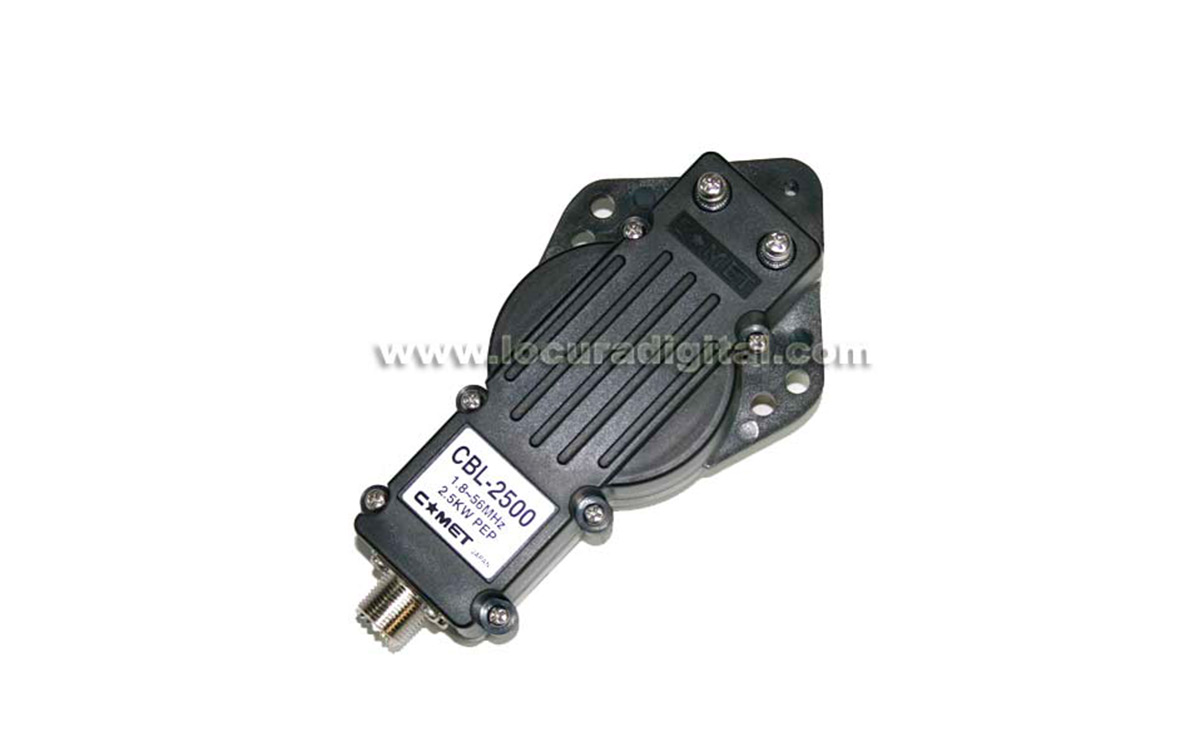

Includes COMET CBL-2500 balum Impedance 50 ohm Ratio: 1: 1 PL Female Connector Frequency: 1.8? 56 MHz

The adjustment sections are different, the longest goes to the left.

H-422 COMET ANTENNA. Dipolo rigido HF Frecuencias: 7-14-21-28 Mhz

Kit contents
  • 1 COMET H-422 Dipole Antenna
  • 1 BALUM
  • Mast mounting flanges

H-422 COMET ANTENNA. Dipolo rigido HF Frecuencias: 7-14-21-28 Mhz

Includes COMET CBL-2500 balum Impedance 50 ohm Ratio: 1: 1 PL Female Connector Frequency: 1.8? 56 MHz

Incluye COMET CBL-2500 balum Impedancia 50 ohm Relación: 1:1 Conector PL Hembra Frequencia: 1.8 ? 56 MHz

Characteristics

  • Frequencies 7/14/21/28 Mhz
  • Bands 10/15/20/40 meters

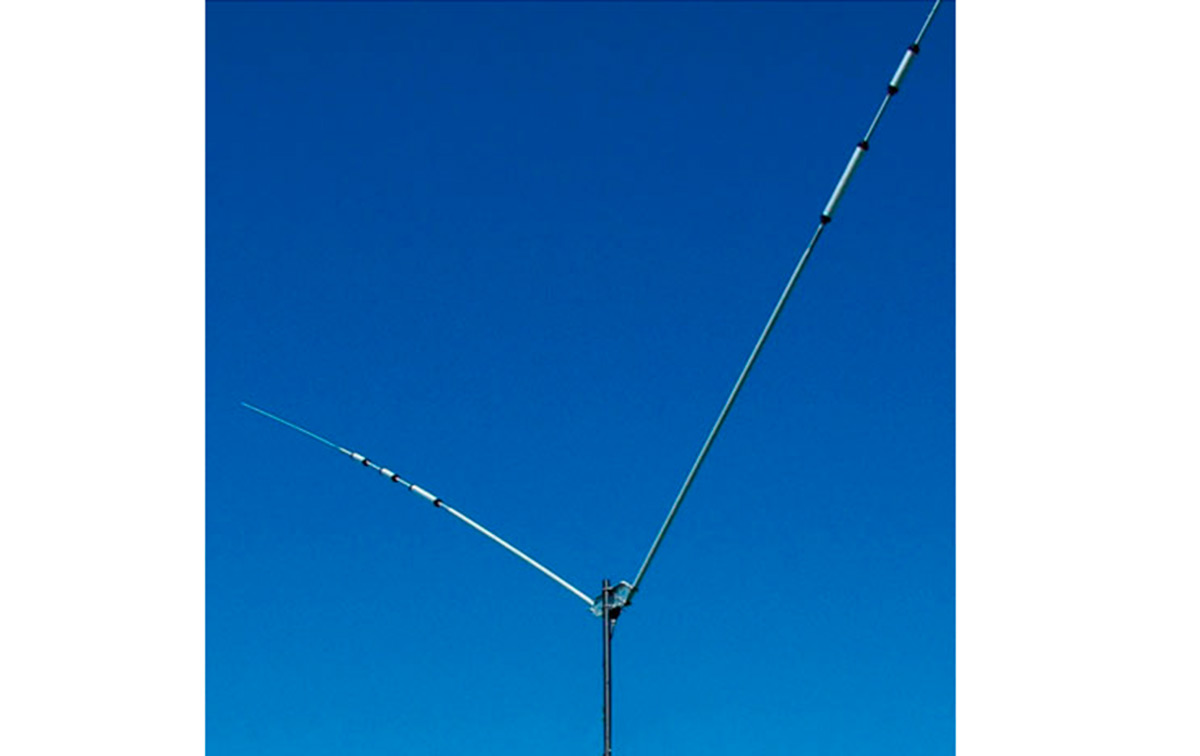

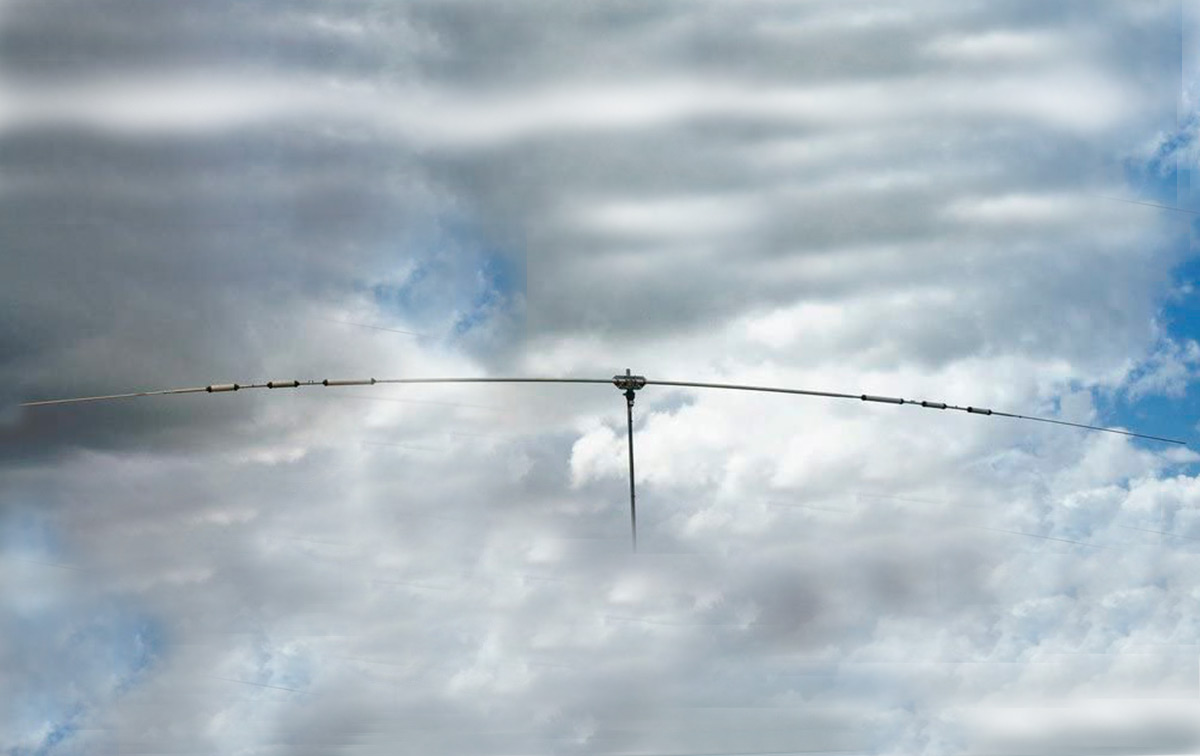

  • V or Horinzontal mttage
  • Impedance 50 ohms
  • SWR 1.5: 1
  • Maximum power 1000 watts
  • Maximum element length 10.3 meters in Horinzontal
  • Length of elements in V 7.4 meters
  • Mast mounting 38-62 mm
  • Weight 5.4 kg
  • Rigid dipole format
  • Balum PL female connector
  • Includes Balum 1.1 CBL-2500

Equivalents COMET H422
