NAGARA TV-416J V-shaped dipole antenna for HF: 7, 14, 21, 28, 50 Mhz
The Nagara TV-416J is a compact, lightweight and carefully designed HF V-dipole antenna for use at frequencies of 7, 14, 21, 28 and 50 MHz. It can be installed both horizontally and in the form of a V-dipole, since either at 90 or 120 degrees. Its ma
Make the first review438,17€ VAT included 362,12€ excl. VAT
Description NAGARA NAGARATV416J
Nagara TV-416-J
NAGARA TV-416J V-dipole antenna for HF: 7, 14, 21, 28, 50 Mhz.

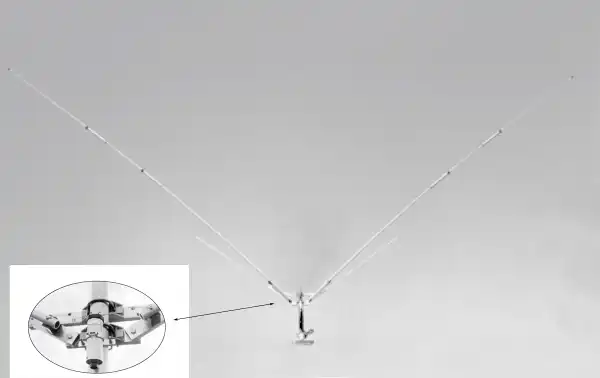

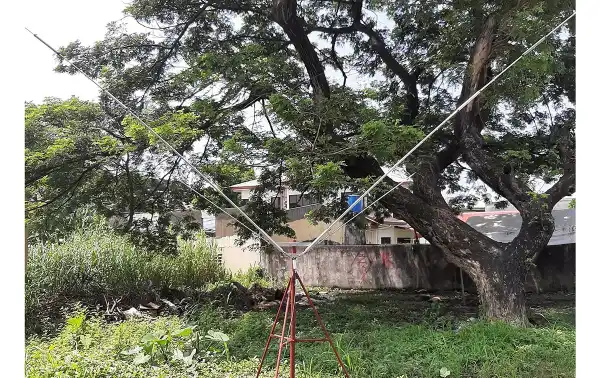

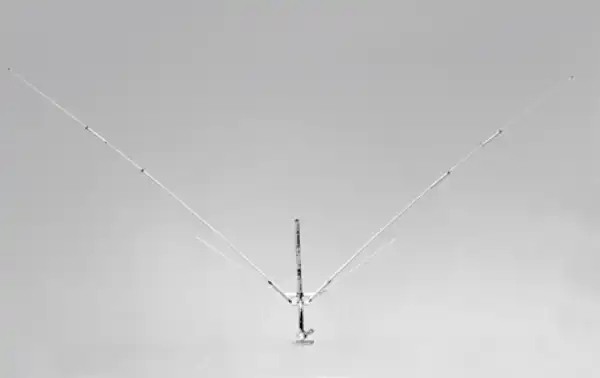

The Nagara TV-416J is a compact, lightweight and carefully designed V-dipole HF antenna for use at the frequencies of 7, 14, 21, 28 and 50 MHz. It can be installed both horizontally and in the form of a V-dipole, either be it at 90 or 120 degrees. Its maximum input power is 300 watts in SSB.
The Nagara TV-416J is an excellent alternative to the popular Comet H-422, which is unfortunately out of production. The main difference between these two antennas lies in their ability to handle power, although for most cases, 300 watts in SSB is sufficient.
Nagara antennas are manufactured entirely in Japan and are widely recognized in the Japanese market for their high quality.
- Nagara Antenna
Characteristics
- Frequencies: HF: 7, 14, 21, 28, 50 Mhz.
- Bands: 40/21/14/10/ 6 Meters
- 7 MHz: 1.3 dBi / 14 MHz: 1.65 dBi / 21 MHz: 1.95 dBi
- 28 MHz: 2.15 dBi / 50 MHz: 2.15 dBi
- Length V 120º L9.32 meters
- Length V 90º L7.64 meters
- Horizontal Length 10.63 meters
- SSB power 300 watts

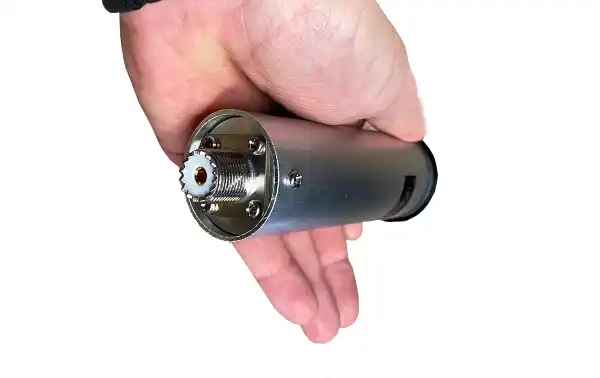

- Female PL connector
- Impedance 50 ohms
- 1/2 wave format

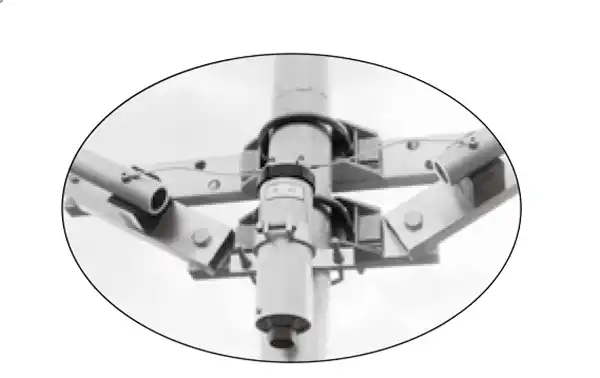

- Mast Mount
- Mast 38 to 60 mm
- Weight 5.6kg
