K-PO DX-5000 V6. 10m Band HF transceiver

K-PO DX-5000 V6. Amateur radio 10m Band HF mobile transceiver more Manufacturer: kpo Reference DX5000V6 EAN 8718375100028

kpo
DX-5000 V6 HF 28-29.700 MHz POTENCIA 12 WATIOS AM/ FM. Y BANDAS LATERALES 21 WATIOS
discontinued

KPO DX-5000 V6

NEW VERSION V6 !!

!! PROGRAMMABLE BY COMPUTER CHANNELS, MEMORIES, FUNCTIONS, ETC .. !!

Cable and software are required to perform this computer function, not included with the station.

HOMOLATED AT 28,000 Mhz to 29,700 Mhz.

KPO DX-5000 V6 HF 28,000 -29,700 MHz POWER 12 WATIOS AM / FM. AND SIDE BANDS 21 WATIOS
28 to 29 Mhz frequency meter mode
Mode: AM / FM / LSB / USB / CW / AP
7-digit frequency meter
12W of power in AM, FM, 21 W. SSB
10 Hz / 100 Hz / 1 kHz / 10 kHz step selection

DX-5000 V6

Kit contents

  • DX-5000 V6 transmitter
  • 1 Microphone for the Maas DX5000 station
  • 1 Bracket type
  • 1 power cord

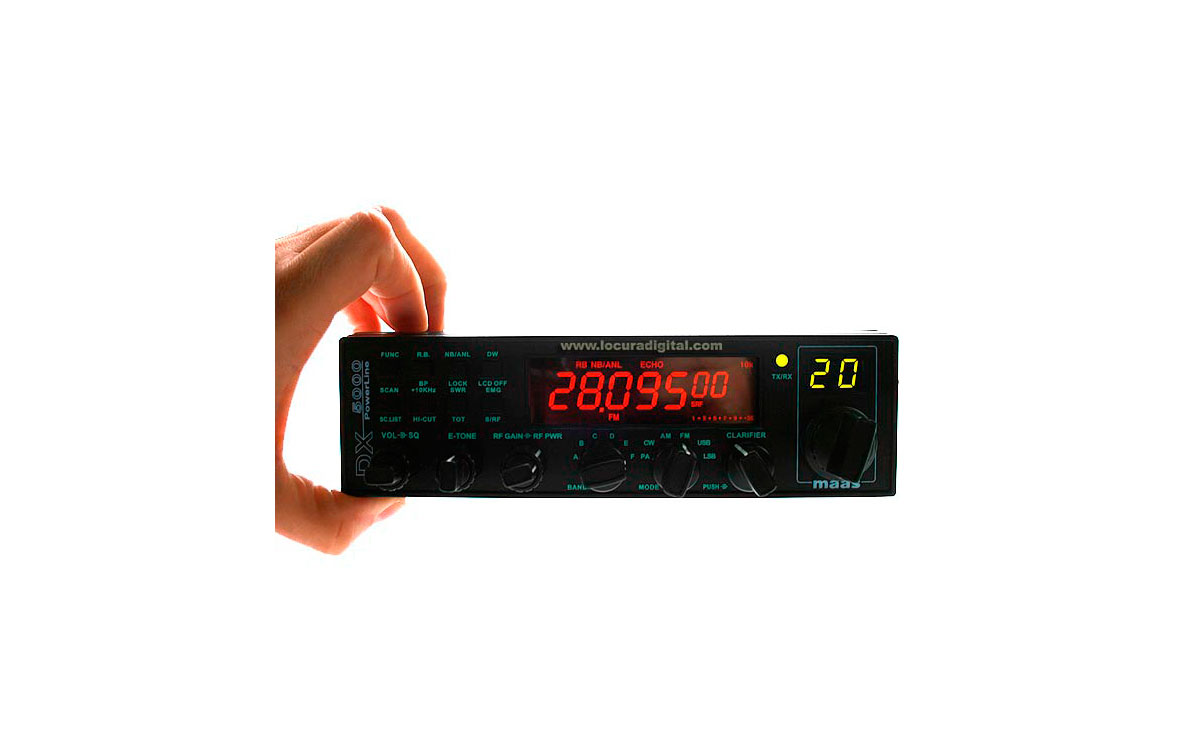

Front View DX-5000

maas dx-5000 hf

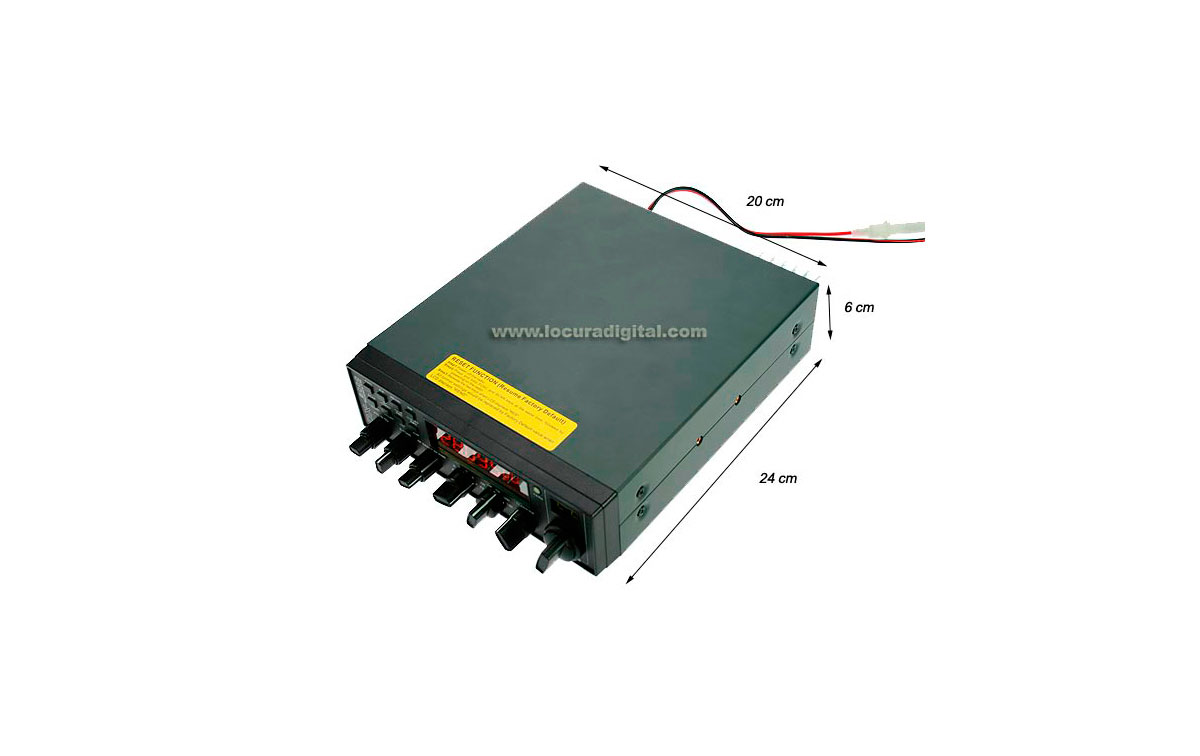

Measurements DX-5000

maas dx-5000 hf

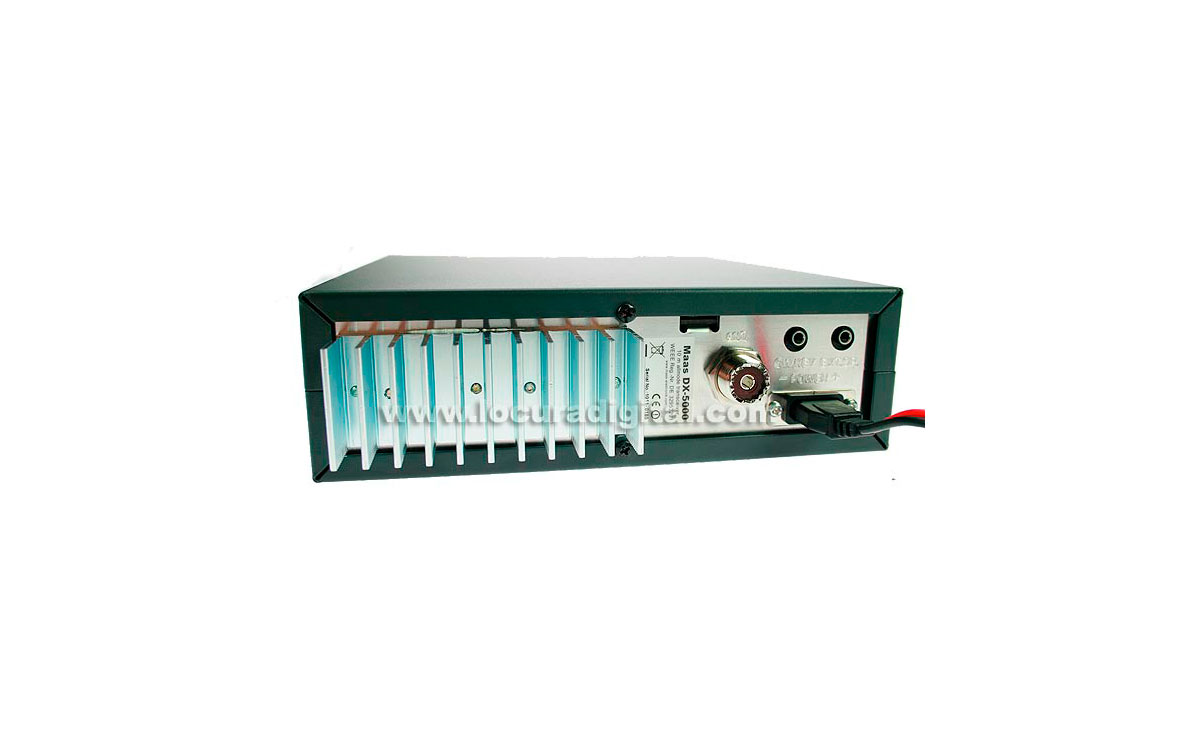

Maas DX-5000 HF transmitter rear view

maas dx-5000 hf

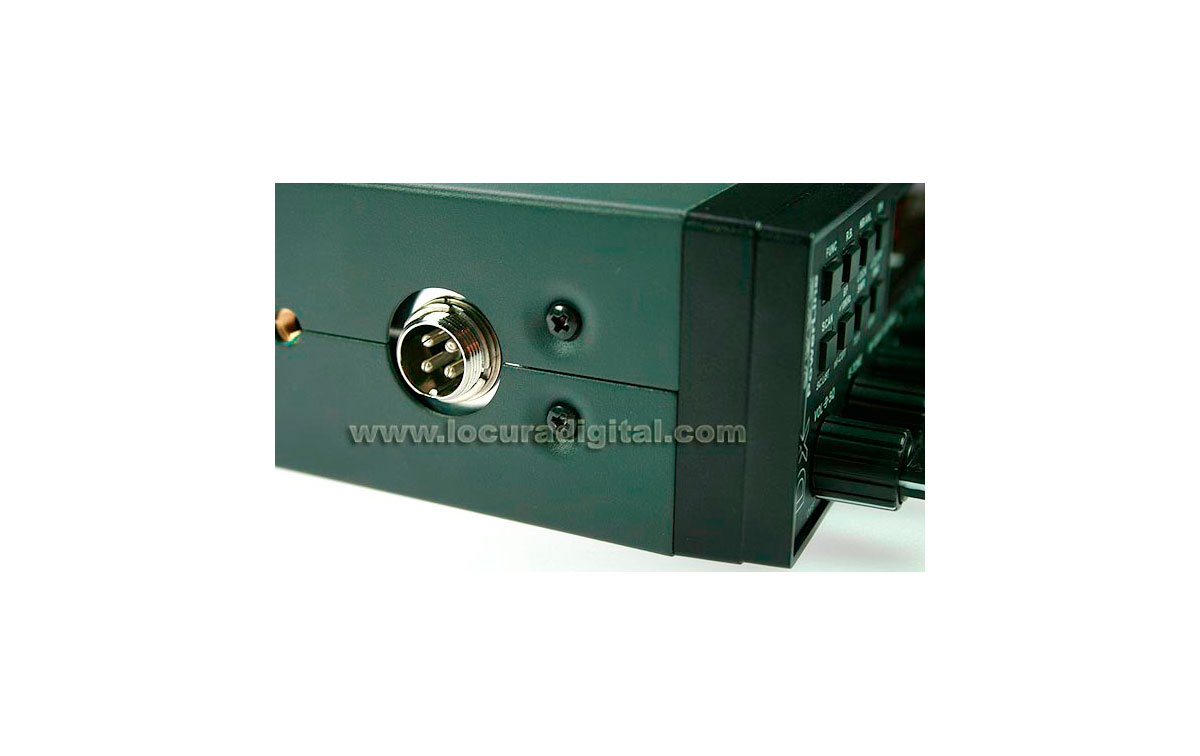

The Maas DX5000 incorporates a 6 PIN microphone connector

maas dx-5000 hf

The DX5000 can be programmed by PC

maas dx-5000 hf

MAAS DX-5000 HF

Click here to download the software version 6.00

Features

  • Clarifier programmable controller
  • S-Meter
  • Roger beep
  • Continuously adjustable output power (by AM / FM)
  • Scan function
  • The echo function can be activated
  • Dual Watch (Dual Watch)
  • SWR meter
  • Protection against excess input voltage
  • 10 KHz
  • Programmable via PC uA RX / TX for each channel separately programmable ( software and cable not included, available as an option)
  • 3.5mm jack for external speakers
  • Jack for Tastset CW
  • 300 Hz - 3 kHz tone side CW, adjustable in 10 Hz steps
  • Take by PA
