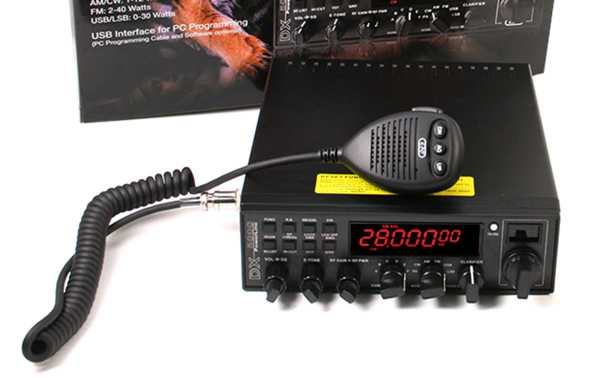

K-PO DX 5000 PLUS NCR HF transmitter 28 Mhz 10 M band

KPO DX-5000 PLUS NCR

APPROVED AT 28,000 Mhz to 29,700 Mhz.

KPO DX-5000 PLUS NCR --- NOW WITH NOISE CANCELING FILTER (Noise Canceling Reception)
It is a compact and multimode 10 meter transceiver with AM, FM, LSB, USB, CW and cw, it has adjustable power from 1 to 20 Watts in SSB and from 1 to 12 w in AM, FM and CW, it has a SWR meter , SWR meter and frequency steps are: 10 Hz covers HF frequencies 28.000 -29.700 MHz 7-digit frequency meter mode. 10 Hz / 100 Hz / 1 kHz / 10 kHz step selection
Software download here : DX5000PLus


The new DX-5000 PLUS NCR Transmitter has improvements with respect to the previous version DX-5000V6 and the DX-5000 PLUS

New Features DX-5000 PLUS NCR:

- NCR NOISE SUPPRESSOR FILTER
-VOX
- Undertones CTCSS/DCS codes
- RX compander
-Noise Gate
- RX noise reduction (extra PCB inside the radio)
- Microphone type can be selected: electret or dynamic
- Programmable via PC / RX / TX for each channel separately programmable (software and cable not included)
- Ventilation with holes in the upper and lower cover.

NEW NCR PLUS VERSION!!

!! PROGRAMMABLE BY COMPUTER CHANNELS, MEMORIES, FUNCTIONS, ETC .. !!

It is necessary cable and software to perform this computer function, not included with the transmitter. Software download here : DX5000PLus

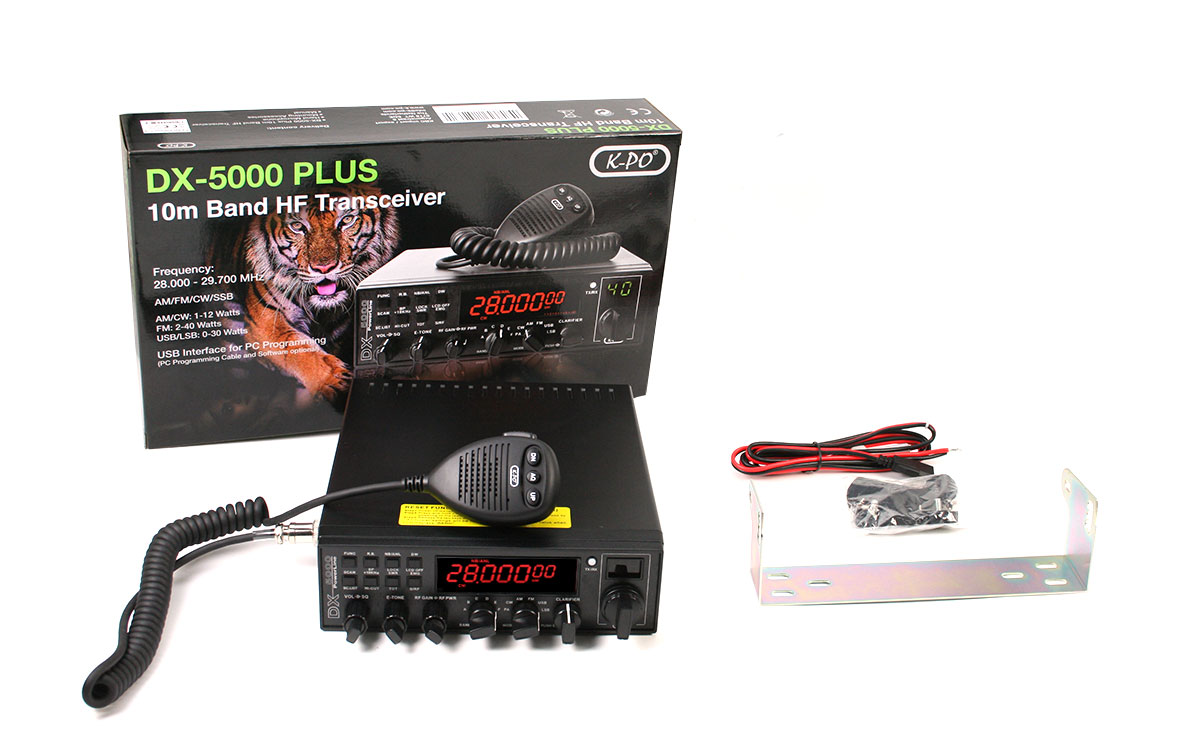

kit content

Features

• NCR NOISE SUPPRESSOR FILTER
• Clarifier Controller
• 7 digit frequency meter
• S Meter
• roger beep
• 4 PIN microphone connector
• Continuously adjustable output power (by AM / FM)
• scan function
• The echo function can be activated
• Dual Watch (Dual Watch)
• SWR meter
• VOX function
• RX compander
• It has a total of 6 bands (A, B, C, D, E and F)
• Frequency setting range can be: 10Hz, 100HZ, 1kHz and 10kHz.
• DW dual watch feature
• HI-CUT function
• SWR protection (SWR)
• Power with voltage protection
• DW dual watch feature
• Undertones CTCSS/DCS codes
• Input over-voltage protection
• 10KHz button
• noise gate
• Programmable via PC uA RX / TX for each channel separately programmable (software and cable not included, available as an option)
• 3.5mm jack for external speakers
• Jack for Tasteset CW
• CW tone side 300 Hz - 3 kHz, adjustable in 10 Hz steps
• Take by AP
• voltage 12 volts

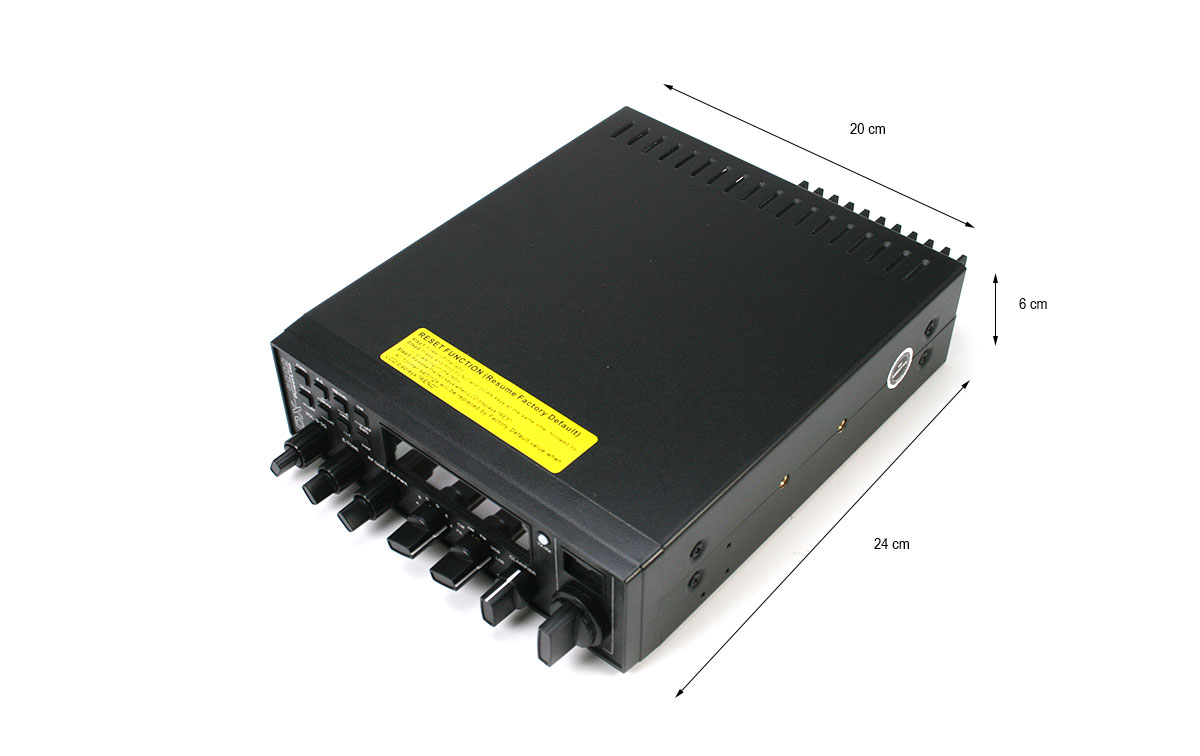

• Dimensions: 24 x 20 x 6 cm
• Weight 2.8kg
