Reference SRH815S | DIAMOND EAN 4936312590006

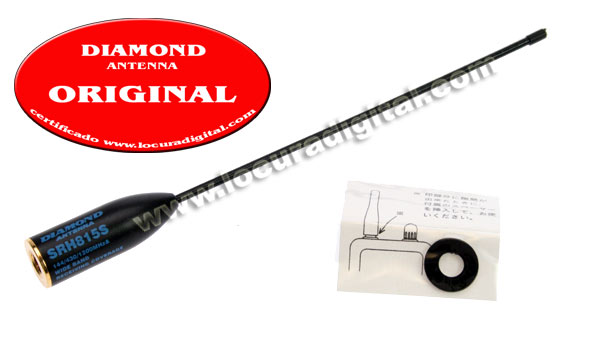

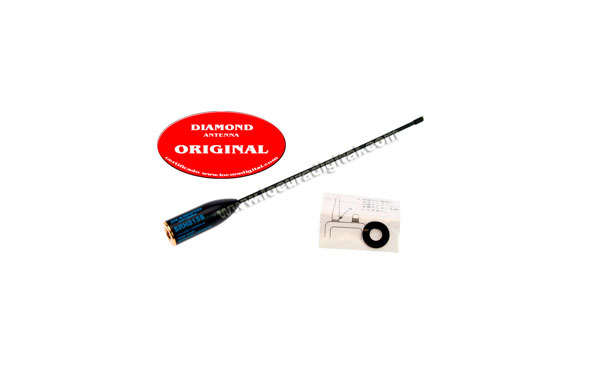

DIAMOND SRH815S Antenna for walkie SMA, 144/430 and 1200 Mhz. 15 cm.

DIAMOND SRH815S Dual-band antenna 144/430 and 1200 Mhz. With a gain of 2.15 dBi With a length of 15 cm, and maximum 6w of power SMA CONNECTOR

Make the first review

19,57€ VAT included 16,17€ excl. VAT

You've seen it cheaper Request a quote

available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€

Description DIAMOND SRH815S

DIAMOND SRH815S walkie antenna
Bands (144MHz), (430MHz), (1200Mhz) TX
RX reception: 150/300/450/800/900 Mhz.

REF. SRH815S

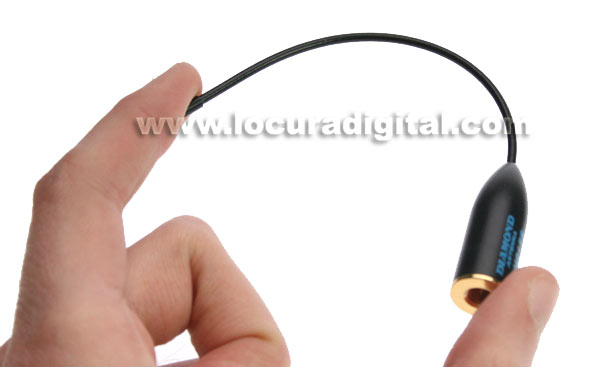

Super flexible antenna with SMA connector, ideal to get the most out of Tri-band walkies, example: Kenwood TH F7 , Yaesu VX 7 , etc ..
It is also valid for scanning:
Example:
Alinco DJX 3 , Yaesu VR 120 , Icom IC R5 etc.

Note:
TX is transmission
RX is reception

DIAMOND SRH815S

FEATURES

FEATURES:

Power Power: 6W

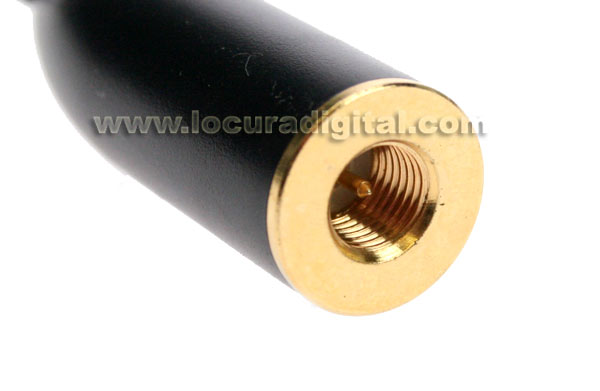

-Connector Connector: SMA

-Impedance Impedance: 50 ohms

-Gain .: 2.15 (1200Mhz)

-Weight Weight: 10gr

-Wave lenght wavelength: 1/4 (144 / 430MHz), 1/2 (1200MHz)

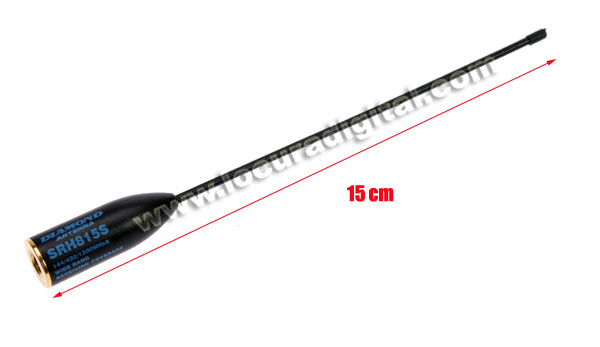

-Length Lenght: 15cm
