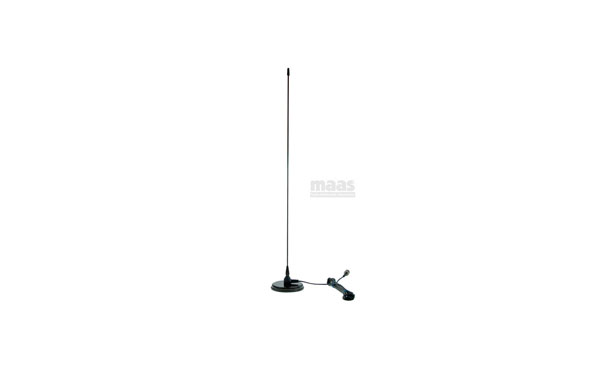

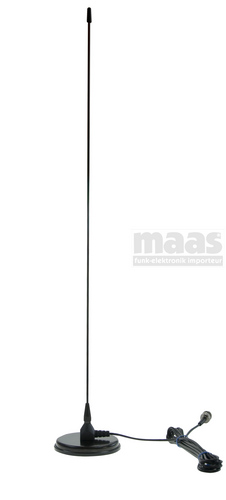

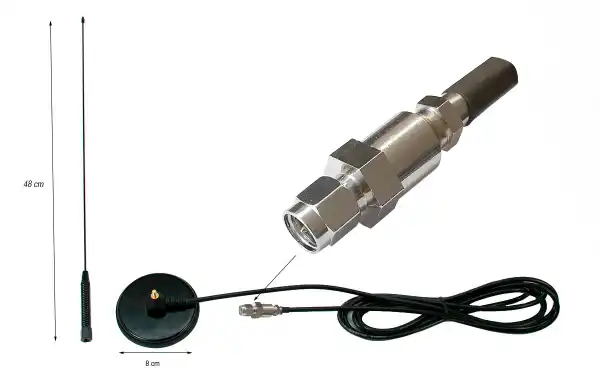

UT308UVSMA Dual band antenna 144 / 430 Mhz magnetic and SMA male connector

UT-308 UV-SMA Dual band mobile antenna 144 / 430 Mhz with magnetic base and SMA male connector. Antenna length: 53 cm. TX power: 25w. Cable length: 3 meters of RG-174. Cable connector: SMA Male Base diameter: 80 mm. It is also a great reception anten more Manufacturer: nagoya Reference UT308UVSMA

available
35,44 incl. VAT
29,29€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

UT-308-UV-SMA


The UT-308 UV-SMA Nagoya is a mobile dual-band antenna designed to operate on the 144 and 430 MHz frequencies. Here are some key features of this antenna:
Frequency range: The antenna is capable of transmitting and receiving signals in the VHF (144 MHz) and UHF (430 MHz) bands.

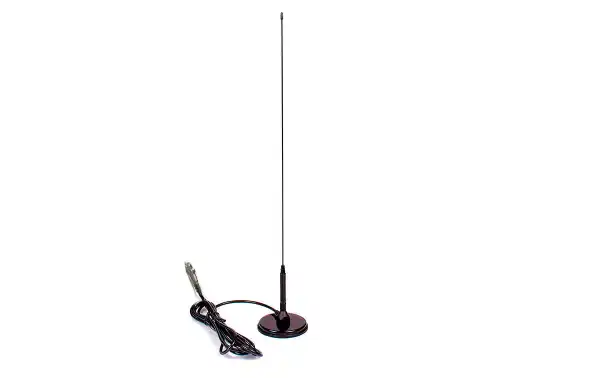

Antenna Length: The antenna has a length of 53 cm, making it suitable for use in mobile and portable applications.
Transmit Power (TX): The antenna can handle transmit power of up to 25 watts, allowing efficient communication over longer distances.

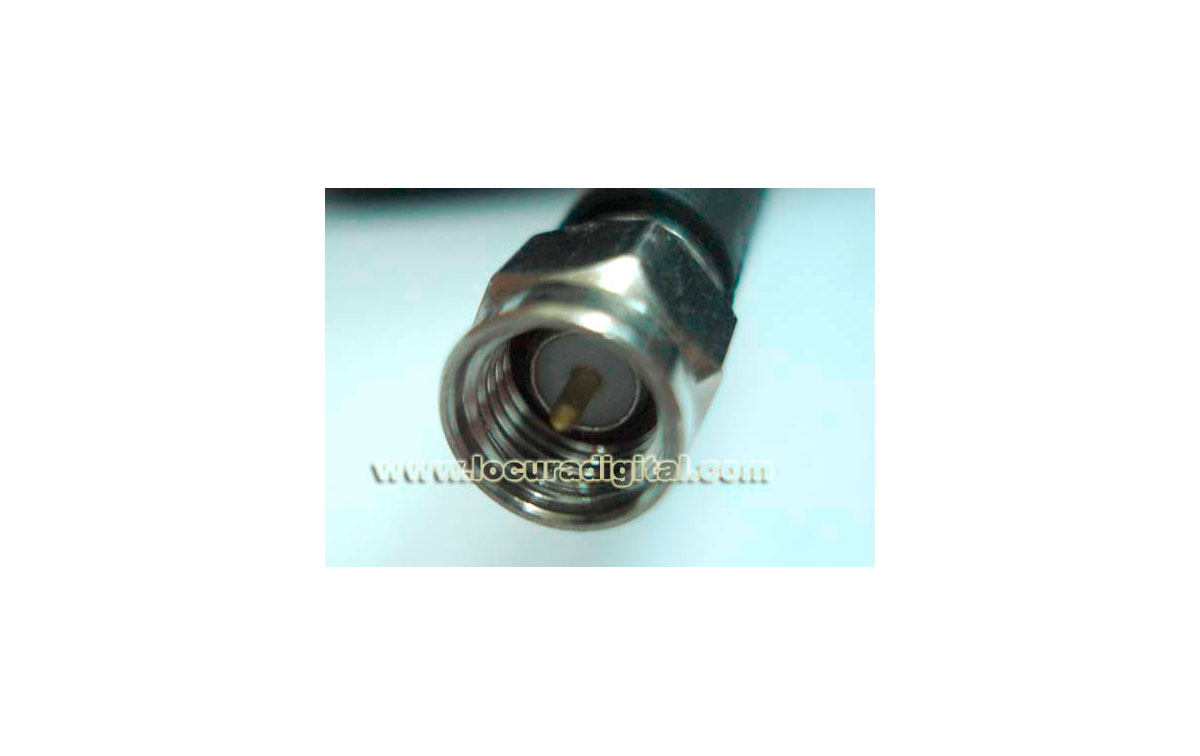

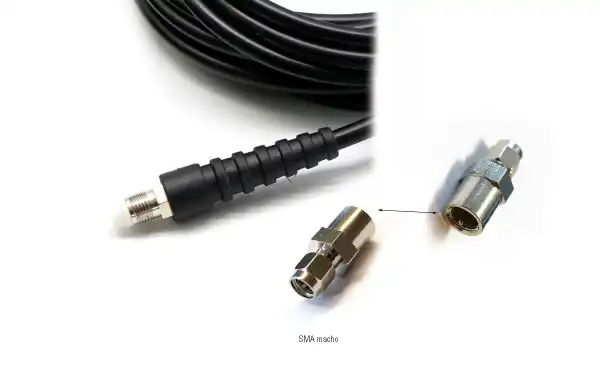

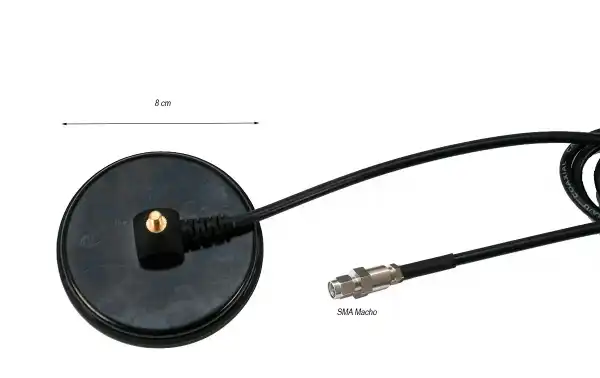

SMA Male Connector: The antenna comes with a SMA male connector, making it compatible with many radios and equipment that use this type of connector.

Magnetic base: The antenna is equipped with a magnetic base that provides a secure hold on metal surfaces.

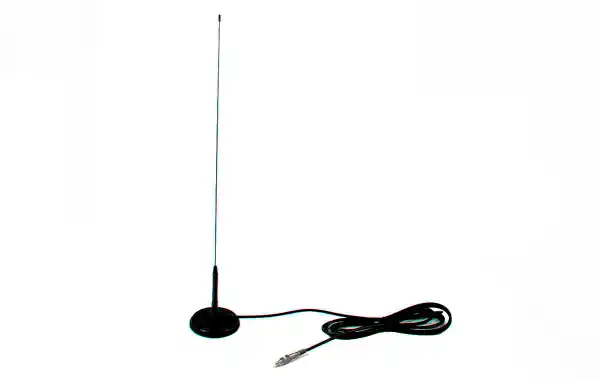

Cable Length: The antenna comes with a 3 meter long cable, which is made of RG-174, a type of coaxial cable commonly used in RF applications.
Great scanner antenna: In addition to its use as an amateur radio antenna in the VHF/UHF bands, the UT-308 UV-SMA is also suitable for the reception of scanner signals in a wide frequency range, from 50 MHz to 1200 MHz.

This antenna is a popular choice for those who need a mobile antenna that can work on two main bands (VHF/UHF) and is also useful for listening to a wide range of frequencies with a scanner. Its compact design and magnetic base make it easy to install on vehicles or other metal surfaces, making it a convenient and versatile option for a variety of communication applications.


La UT-308 UV-SMA Nagoya es una antena bibanda móvil diseñada para operar en las frecuencias de 144 y 430 MHz. Aquí tienes algunas características clave de esta antena:

kit content
  • 1 UT-308 SMA antenna
  • 3 MTS Cable RG 58
  • 1 SMA Male Connector

Rango de frecuencia: La antena es capaz de transmitir y recibir señales en las bandas de VHF (144 MHz) y UHF (430 MHz).

Characteristics

  • Frequency 140/430
  • Gain 2.5db
  • SWR 1.5
  • Impedance 50 ohms
  • RG58 cable
  • Antenna length 50 cm
  • Antenna length + base 53 cm
  • SMA Male Connector
  • Max. power 25W
  • Length 3 meters. RG58 cable
  • Magnet base diameter 8 cm
  • Antenna color black
  • Steel rod
