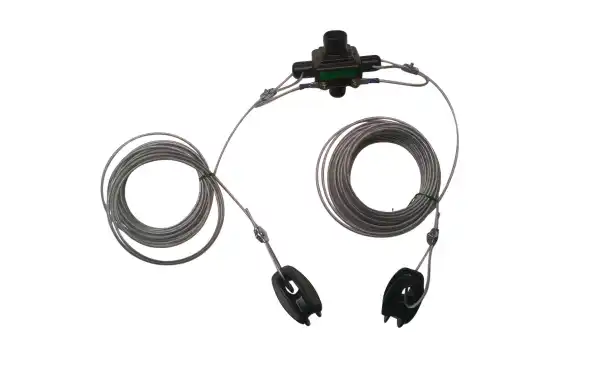

TAGRA DDK-20 WINDOM HF Antenna with 41,40m cables

DDK-20

WINDOM type dipole antenna DDK-20 bands 80-40-20-15-10 meters / 3.7-7-14-21-28 MHz

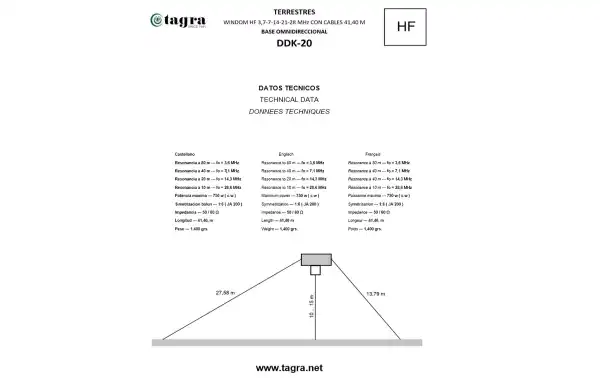

First section length 27.58 cm second section length 13.79 cm

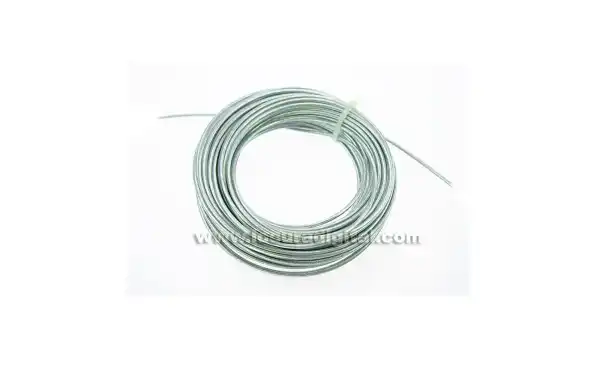

It is made of DIPOFLEX MESSI & PAOLONI cable. Special M&P cable for making dipoles
Special cable for wire dipole antenna, made of geometrically braided pure copper. The cable covering is polyethylene with anti-UV additives in the compound that guarantee greater longevity even in extreme conditions. It is composed of 19 geometric and concentric copper wires. It is also valid for grounding radials since the cable can be buried, the outer cable covering is completely waterproof PE.

Total length, 41.4 meters
Maximum power 1000w
Impedance 50 ohm

Characteristics

• Type - Type - Type Windon
• Frequency - Frequency - Fréquence 3.7-7-14-21-28 MHz
• Power - Power - Puissance 1000 W
• Gain - Gain (dB) - Gain 0 dB
• Polarization - Polarization - Horizontal Polarization
• Impedance - Impedance - Impédance 50 Ohm
• Adjustment type - Adjust type - Type d'ajustage Adjusted/Adjusted
• ROE - SWR 1.3:1

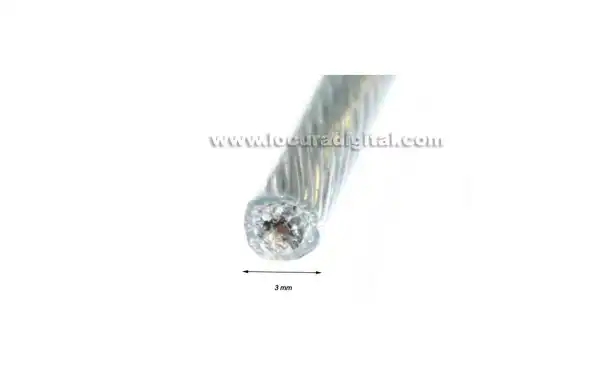

• Cable diameter 3 mm, copper central wire
• Length - Lenght (meters) 41.1 meters
• Connection type - Type of conn. - Type of conn. PL type female
• Gross weight - Gross weight (gr.) 1563 gr. (1pcs)
• Dimensions - Package dimensions (cm) 23 x 19 x 13 cm
