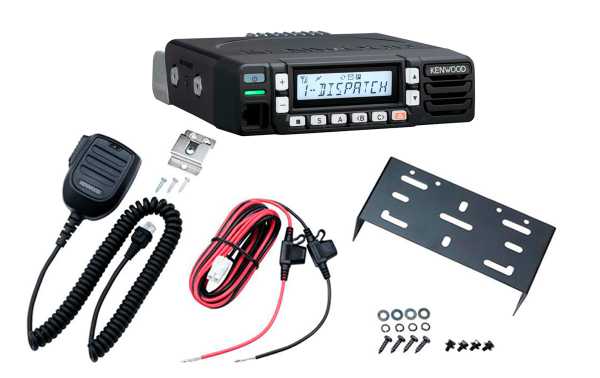

KENWOOD NX1700AE Analog Mobile Transceiver VHF 146-174 Mhz

Kenwood NX-1700AE

KENWOOD NX1700AE Analog Mobile Transceiver VHF 146-174 Mhz. Easy-to-read white backlit LCD display: Alphanumeric, 10 digits, 13 character frame.
Digital/Analog mode upgradeable by software option (no need to update firmware) White backlit LCD display: 10-digit alphanumeric frame and 13 characters (aliases and icons) 7-color LED indicator used to display various states of the radio Acknowledged KENWOOD audio quality: 6W (maximum) audio and tunable TX/RX audio profile: Audio equalizer, automatic gain control (TX/RX) and microphone type setting Maximum 260 channels, 128 zones of maximum 250 channels
Power 5-25W
! Analog VHF 146-174 Mhz transmitter!

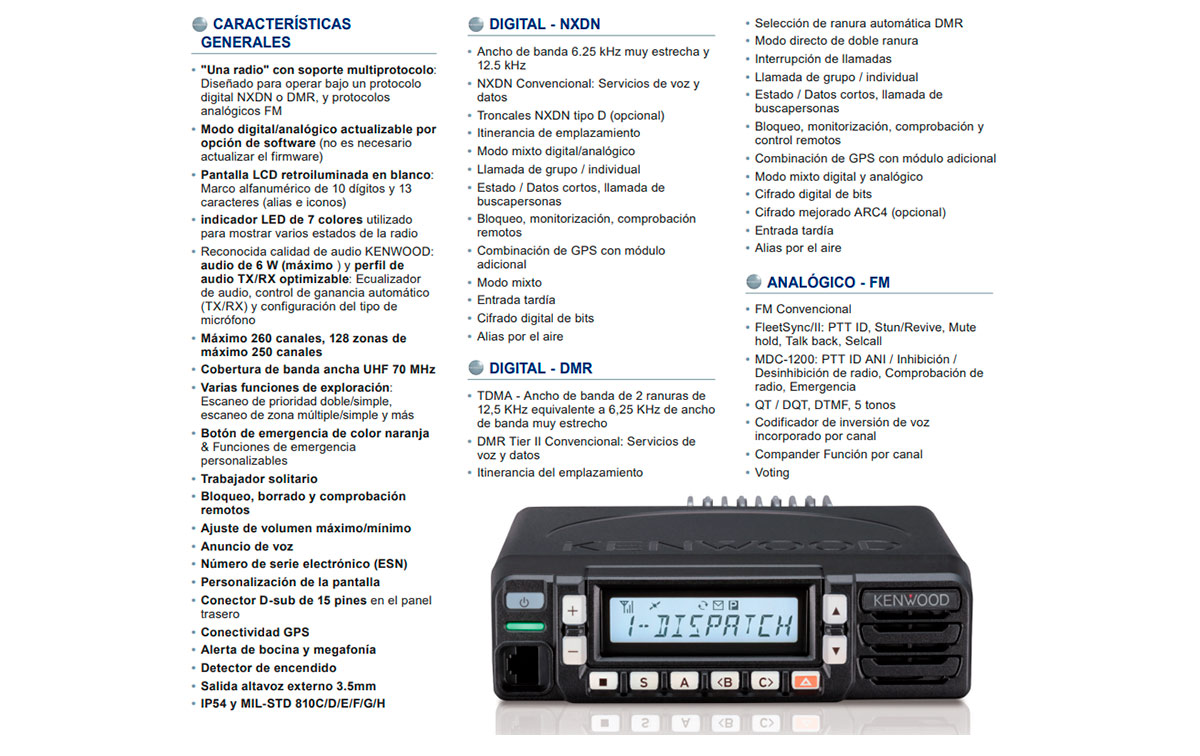

Features

• ANALOG VHF frequency 146-174
• Power 5-25W
• channels 260
• Number of zones 128
• AMBE 2 VOCODERS
• Fleetsync Compatibility
• Port options D-sub 15
• Complies with the ETSI European Standard, analogue and digital
• Alphanumeric display 13 segments, 10 characters
• Priority Scan
• encryption
• QT / DQT Tone, DTMF, 5-Tone
• PC programmable
• Emergency call
• Status/Text Messages
• Remote Control Lock/Eraser/Trial
• emergency key
• 7-color LED indicator used to display various states of the radio
• Multi-protocol digital radio:
• Designed to work in NXDN or DMR digital protocol and analog FM
• Optional GPS (Using the 15-pin D-SUB connector)
• KENWOOD Audio Quality revamped with Active Noise Reduction (ANR) using its DSP
• IP54 and MIL-STD-810 C/D/E/F/G/H certified
• Maximum 260 Channels per radio, 128 Zones per radio and 250 Channels per zone
• Sound output 6 W (max) / 4 W (nominal) at 4 ohms
• Operating voltage 13.2 VDC ±15%
• PL female antenna connector
• Dimensions 160 x 43 x 137.7 mm (projections not included)
• net weight) 1.21kg
