Kenwood NX-1300DE3

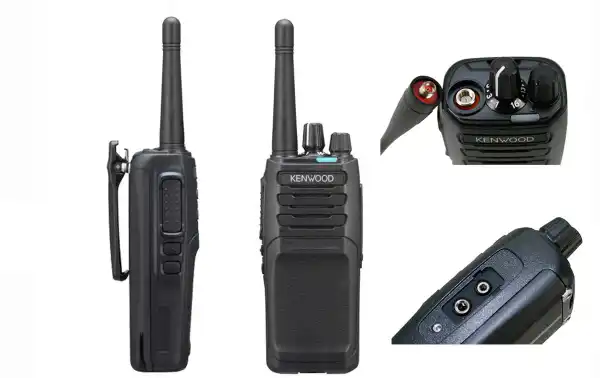

Kenwood NX1300DE3 walkie without display Analog and Digital UHF 400-470 Mhz DMR
Multiprotocol Digital Radio - Designed to operate on Analog and Digital protocols
Mixed digital and FM analog operation allows gradual migration at your convenience
7-color light bar indicator on top panel
KENWOOD Audio Quality - TX / RX Audio Profile with Digital Optimization Processor
Emergency Function: Customizable Emergency Profiles

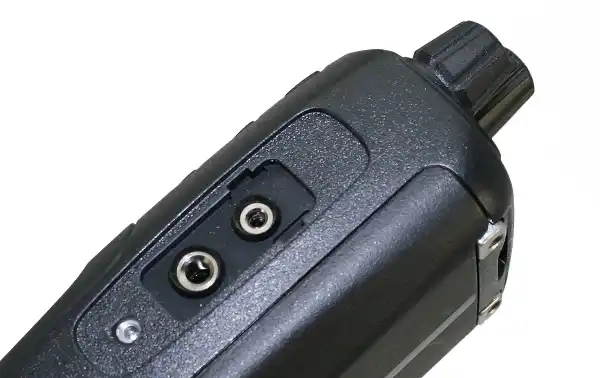

Audio Connector Accessory 2-pin

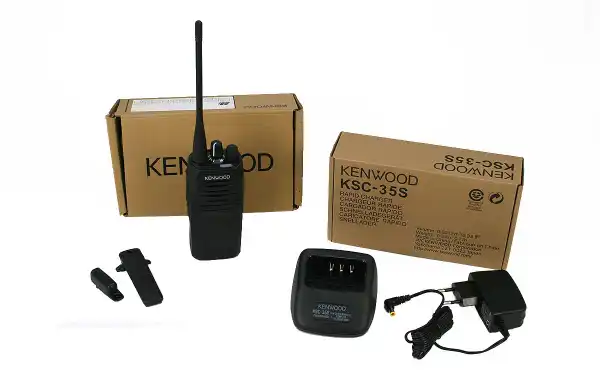

Kit Contents
- 1 NX1300D3 Walkies

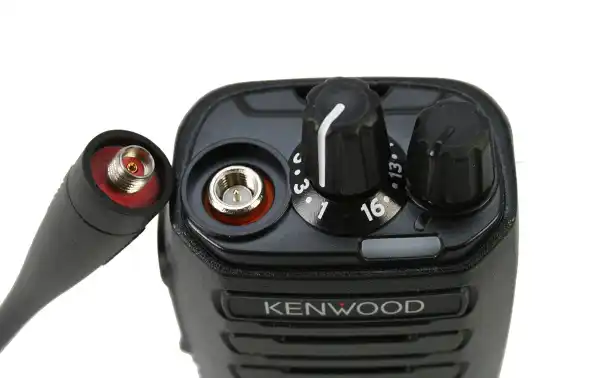

- 1 KRA27M Antenna
- 1 KSC-35 desktop charger
- 1 KNB-45L lithium battery capacity 2000 mAh
- 1 Belt clip
- 1 Accessory cover
- 1 Pinganillos connection protector
characteristics
- Frequency range 400 - 470 MHz
- Number of channels 64
- Number of Zones 4
- Power 5 watts
- Call to all groups
- AMBE 2 Vocoder
- Emergency call
- Individual call
- Alias Via-el-aire
- Alert call
- Priority monitor IDs
- Radio Access Number (RAN)
- Remote monitoring
- Remote lock / unlock
- Short and long data messages
- Status messages
- Channel Spacing - Analog - Wide / Medium / Narrow 25 kHz / 20 kHz / 12.5 kHz
- Channel Spacing - Digital - Wide / Narrow 12.5 kHz / 6.25 kHz
- 1W audio output power
- Radio frequency output power 5W / 4W / 2.5W / 1W
- Dimensions With KNB-45L: 54.0x123.0x33.5mm. With KNB-53N: 54.0x123.0x33.5mm.
- Dimensions With KNB-69L: 54.0x123.0x37.5mm. Only transceiver: 54.0x123.0x33.5mm
- Operating temperature -30 ° C to 60 ° C
- Operating voltage 7.5 V DC ± 20%
- Audio Connector Accessory 2-pin
- Weight (net) With KNB-45L battery: 295g. With KNB-53N battery: 365g.
- Weight With KNB-69L Battery: 310g. Only the transceiver: 175g.
