M&P C.SMA.HYF5M-CR SMA male connector to crimp cable diameter 5.4 mm

The M&P C-SMA-HY5MCR connector is an SMA male crimp connector designed for use with 5.4mm diameter cables. This connector is used to make safe and reliable connections in communication systems that require an SMA connector. more Manufacturer: m&p Reference CONSMAHYF5MCR

available
7,77 incl. VAT
6,42€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

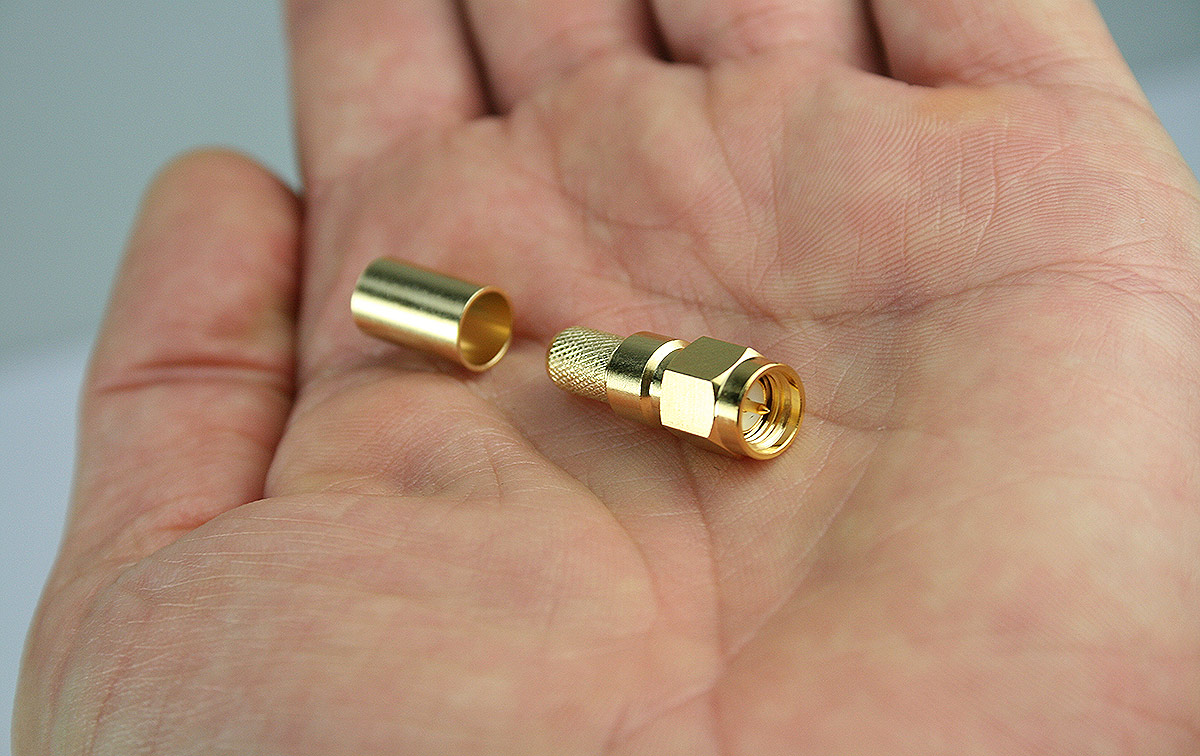

CON-SMA HY5-MCR

The M&P C-SMA-HY5MCR connector is an SMA male crimp connector designed for use with 5.4mm diameter cables. This connector is used to make secure and reliable connections in communication systems that require an SMA male connector. The SMA male connector is a type of RF connector widely used in communication applications and electronic equipment. SMA male connector to crimp:
The SMA male connector is a type of RF connector used to establish secure and reliable connections in communication systems and electronic equipment.

The term "male" refers to the type of connector that has a center pin or pin that inserts into the corresponding female connector. The term "crimp" indicates that this connector is assembled to the cable using a crimp tool that ensures a strong and electrically efficient connection.

Cable Diameter: The M&P C-SMA-HY5MCR connector is designed for use with 5.4mm diameter cables. This means that it is compatible with cables that are that specific size, allowing for a proper and secure connection.

Use in communication systems: SMA male connectors are widely used in communication systems that operate in the radio frequency range, such as telecommunication systems, antennas, transmitting and receiving equipment, laboratory instrumentation, and more. They provide a robust connection and constant impedance in high frequency applications.

Features and benefits: SMA connectors offer several advantages, such as a compact, threaded design that ensures a secure and robust connection, which is especially important in mobile applications or in harsh environmental conditions. Additionally, SMA connectors maintain a constant impedance throughout the connection, minimizing signal loss and RF reflection.

Compatibility: It is important to ensure that both the SMA male connector and the female connector are of the same type and are designed to operate in the same frequency range to ensure an optimal connection and avoid signal loss.

For cables with a maximum diameter of 5.4 mm
Pins inner diameter: 1 Pins 1.55 mm

conector sma macho para crimpar: el conector sma macho es un tipo de conector rf que se utiliza para establecer conexiones seguras y confiables en sistemas de comunicación y equipos electrónicos. el término

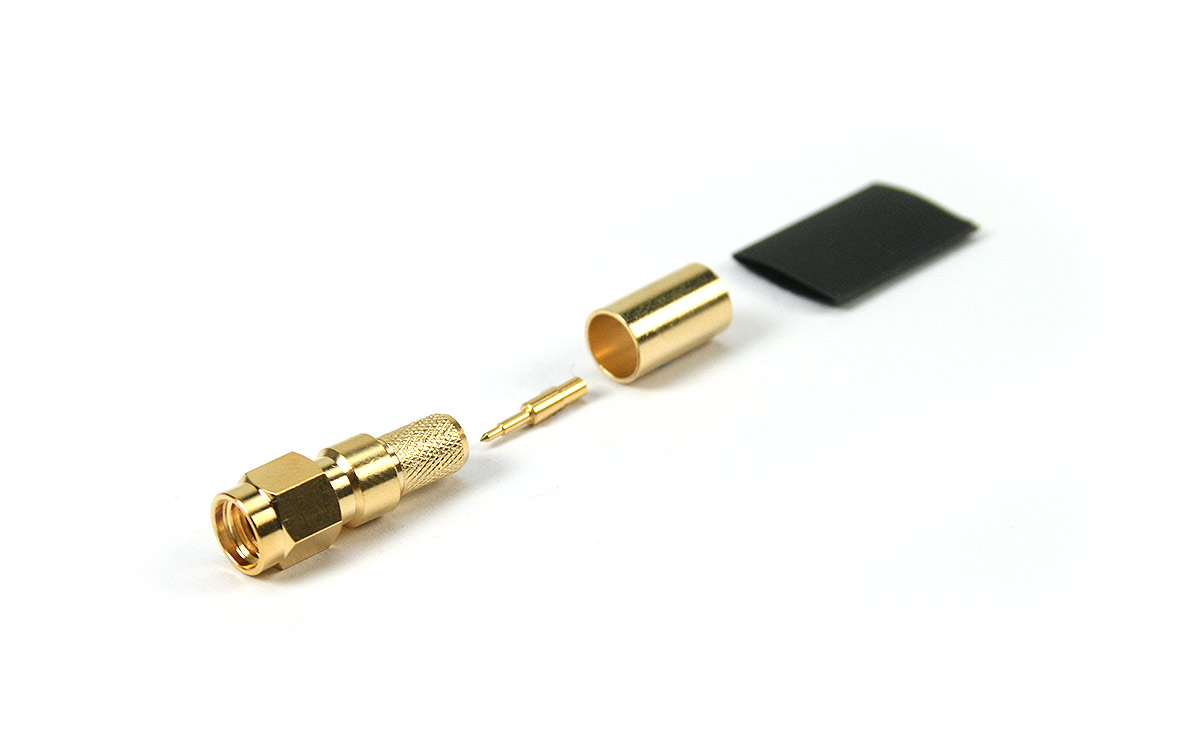

kit content
  • 1 CON-SMA-HY5-MCR connector
  • 1 Golden Pin

diámetro del cable: el conector m&p c-sma-hy5mcr está diseñado para utilizarse con cables de 5,4 mm de diámetro. esto significa que es compatible con cables que tienen ese tamaño específico, lo que permite una conexión adecuada y segura.

Characteristics

  • Brand: Messi & Paoloni
  • Model: CON-SMA-HY5-MCR
  • Insulation: PTFE
  • Cable diameter 5.4 mm maximum
  • 1 Pin 1.55mm
  • Center Pin: Golden Brass
  • Connector body : Golden brass
  • Frequencies 0-10 GHz
  • Impedance 50 ohms
  • Format for CRIMPING
  • Special alloy called Smart3-Alloy
  • Corrosion resistant and hypoallergenic
