Reference MAT10USB | MAT-TUNER

MAT-10-USB Automatic Tuner HF1.8-54 Mhz 30 w Yaesu 817/818

The tuner can operate within the range of 1.8 MHz to 54 MHz, at power levels up to 30 watts. Tune dipoles, verticals, Yagis, or virtually any coaxial antenna. The coupler is compatible with YAESU FT817 and FT818 transceivers.

Make the first review

278,43€ VAT included 230,11€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

You've seen it cheaper Request a quote
not available Will be received soon Delivery price from 6,50€

Description MAT-TUNER MAT10USB

MAT-10-USB

The tuner can operate within the range of 1.8 MHz to 54MHz, at power levels up to 30 watts. Tune dipoles, verticals, Yagis or virtually any coaxial antenna. Tuner compatible with YAESU FT817 FT818 equipment

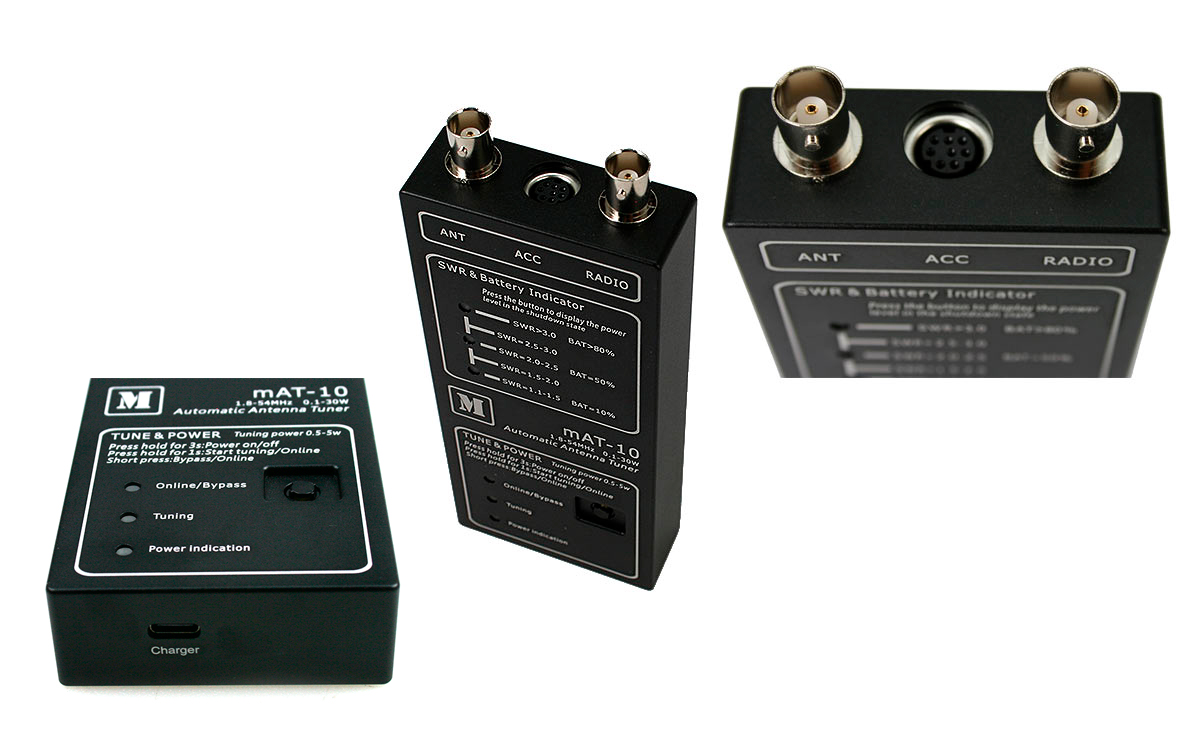

The mAT-10 tuner is a very compact tuner for QRP devices such as the FT-817/818. The maximum allowed transmit power is 30 W SSB PEP. Power supply is provided by two built-in LiIon batteries (type 10440), making the tuner a good companion for portable operations with the FT-817 or FT-818. A USB Type-C cable is included. Control is via a supplied cable (8-pin MiniDIN) which plugs into the ACC connector of the FT-817/818.
Operation is via a button on the tuner. By direct coupling between tuner and transceiver, so-called "One Touch Tune" is made possible: the tuner switches the operating mode to CW and reduces the power, tunes and then automatically returns to the previously set operating mode and transmit power. This makes the tuning process very convenient. As with all mAT tuners, a tuning once found is stored in one of 16,000 memories, depending on the frequency.


MAT-10-USB Sintonizador Automático HF1,8-54 Mhz 30 w Yaesu 817/818

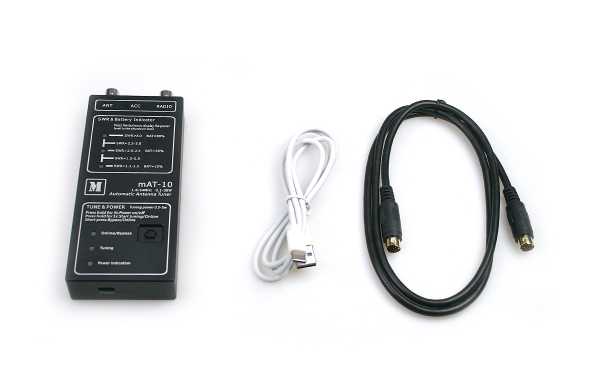

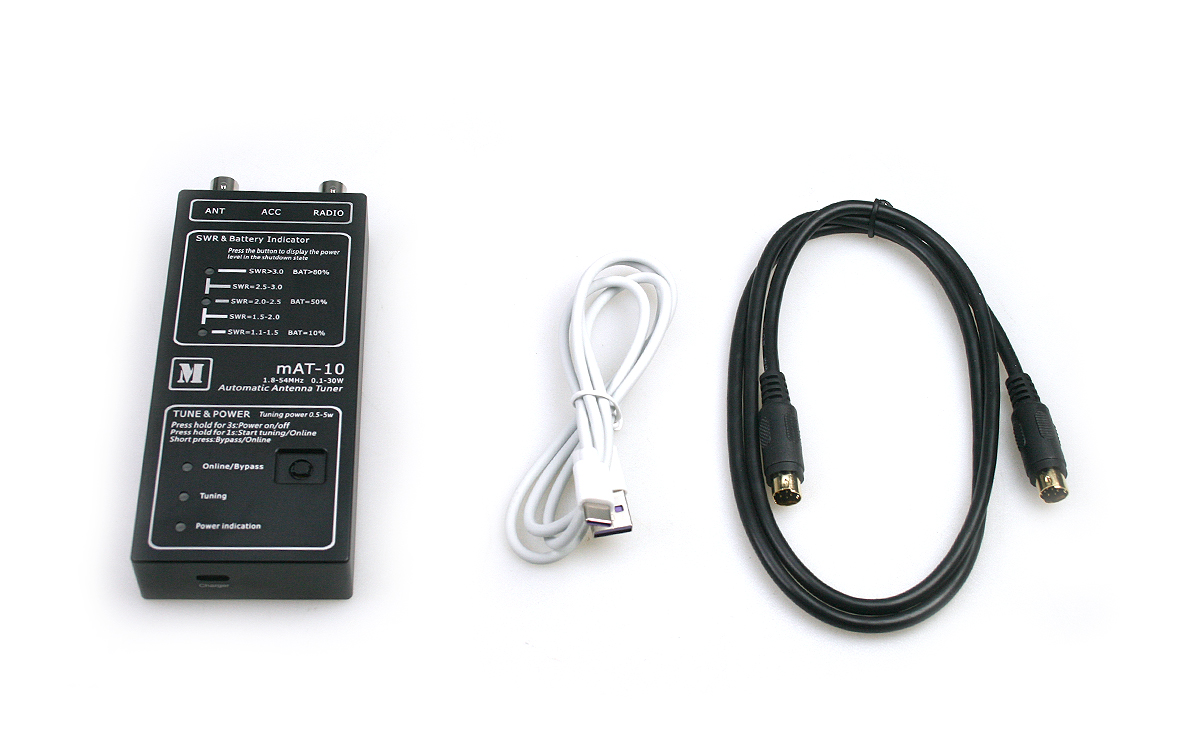

Kit contents
  • 1 MAT-10-USB Coupler
  • 1 USB cable for charging
  • 2 Rechargeable batteries included inside MAT-10
  • 1 Cable for Yaesu MAT-CY

MAT-10-USB Sintonizador Automático HF1,8-54 Mhz 30 w Yaesu 817/818

MAT-10-USB Sintonizador Automático HF1,8-54 Mhz 30 w Yaesu 817/818

Characteristics

  • Frequencies 1.8 to 54 MHz
  • Valid for Yaseu
  • Impedance 5 to 1500 ohms
  • Maximum power 30 watts
  • Coupler connector 2 x BNC Female
  • 8 pin coupler connector
  • MAT-CY Cable
  • Metal box
  • USB Type C charging connector

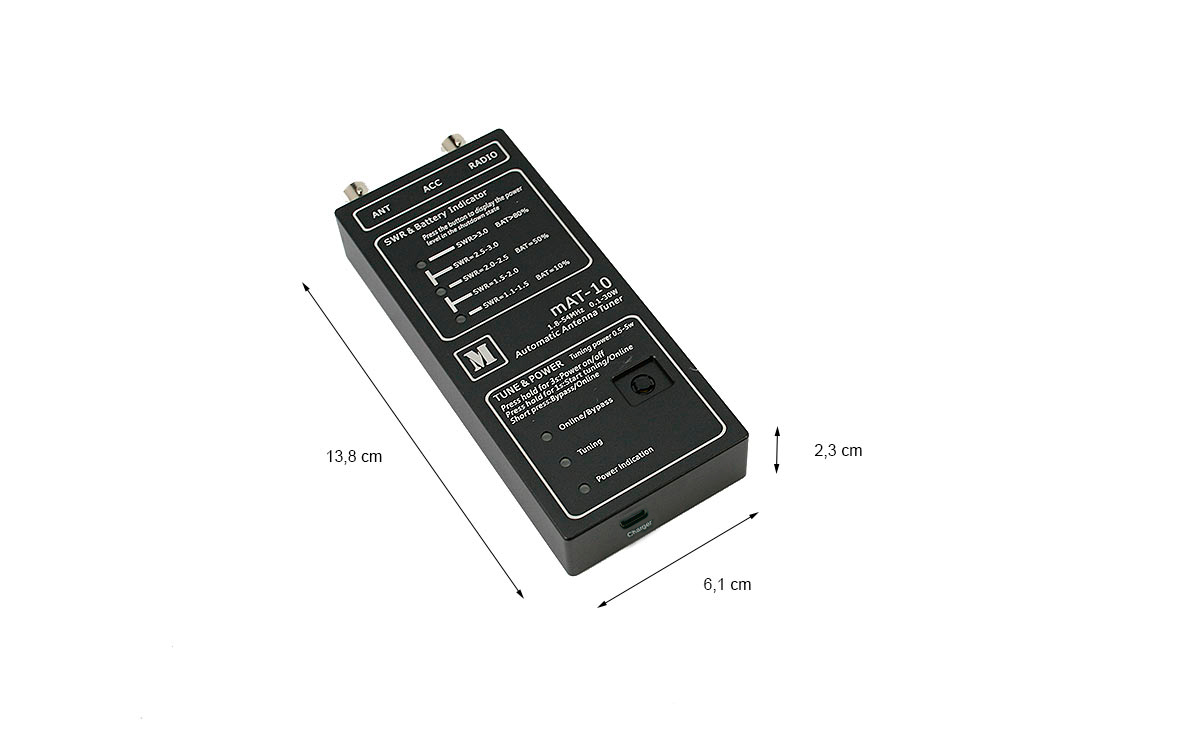

  • Measures 13.8 x 6.1 x 2.3 cm
  • Weight 260 gr.
