75,00€ VAT included
Reference SCU28 | YAESU

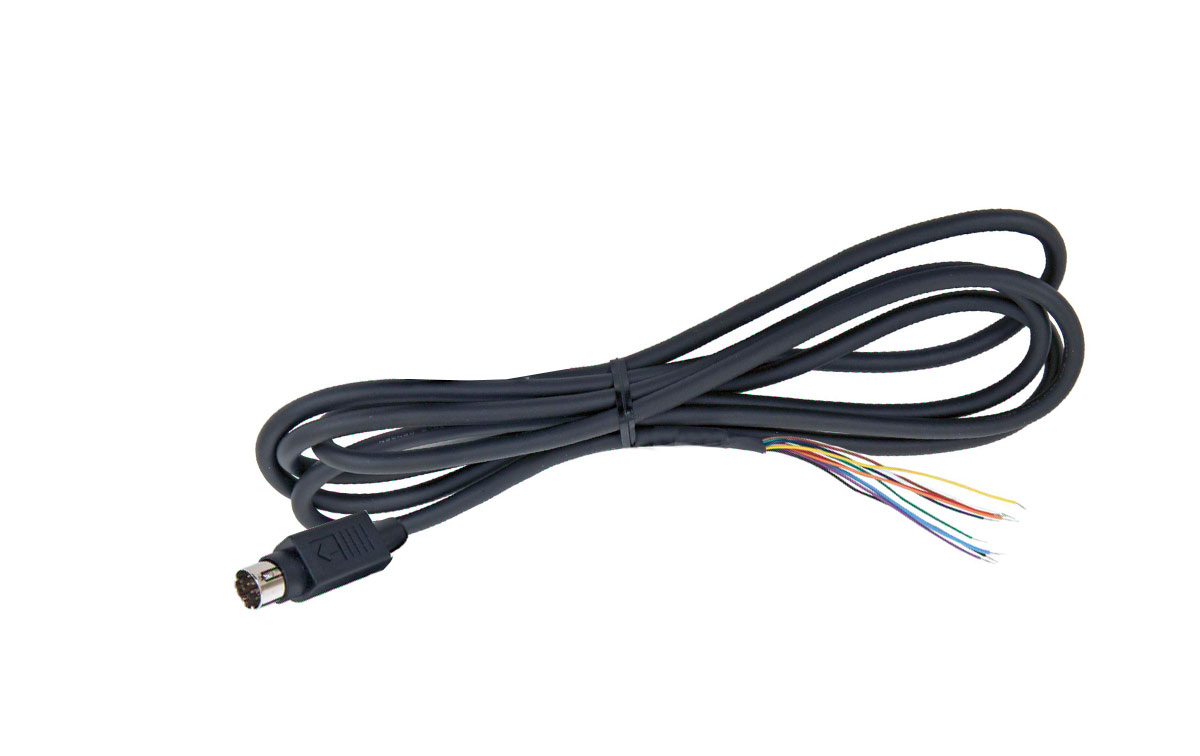

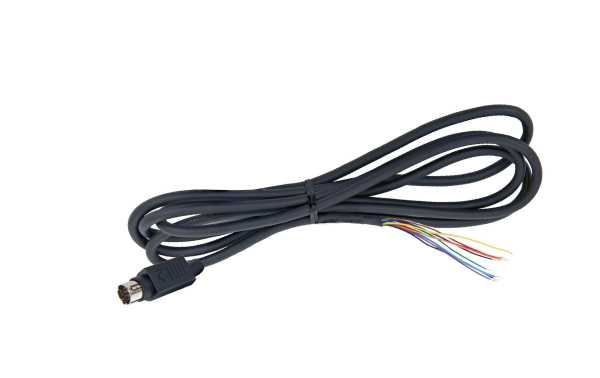

SCU28 YAESU cable MINI DIN 10 PIN FT450 FT-950 FTDX-1200
SCU28 YAESU cable MINI DIN 10 PIN FT450 FT-950 FTDX-1200. Interface Cables for Yaesu Amplifiers
5,039,85€ VAT included 32,93€ excl. VAT
not available Will be received soon Delivery price from 30,25€
Description YAESU SCU28
YAESU SCU-28
SCU28 YAESU cable MINI DIN 10 PIN FT450 FT-950 FTDX-1200. Interface cables for Yaesu amplifiers and CAT control cable
Fitting to the FT-450 FT-450D FT-950 FTDX-1200 FTDX-3000 radio model, Yaesu interface cables include computer interface, cloning and "CAT" data connections. Developed or selected by Yaesu engineers for specific transceiver models and specific functions, these are genuine Yaesu cables.

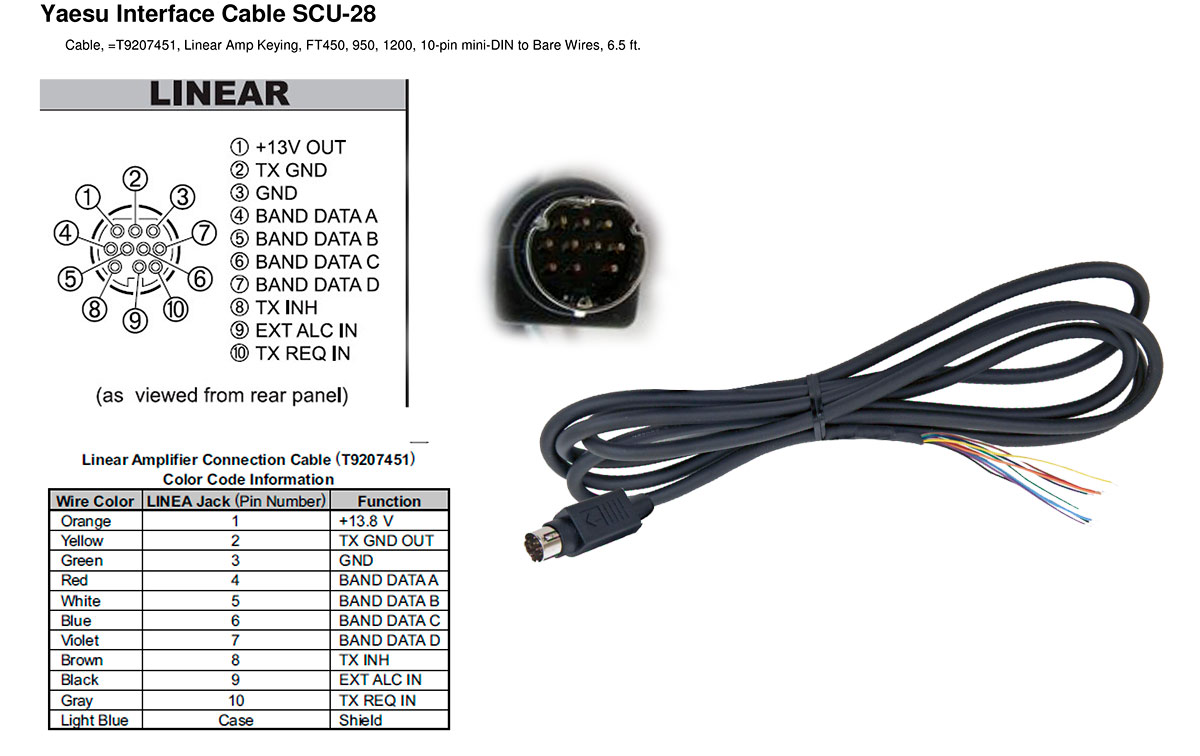

1 orange 13.8va amp
2 yellow TX GND to amp
3 green GND
4 red BAND-DATA-A to amp
5 white BAND-DATA-B to amp
6 blue BAND-DATA-C to amp
7 violet BAND-DATA-D to amplify
8 brown TX INH to radio
9 black EXT ALC to radio
10 gray TX REQ to radio
Light blue protector
Kit contents
- 1 SCU-28 Cable
Features
- 10-pin DIN connector
- 10-wire cable
- Length 1 m
- 1 orange 13.8va amp
- 2 yellow TX GND to amp
- 3 green GND
- 4 red BAND-DATA-A to amp
- 5 white BAND-DATA-B to amp
- 6 blue BAND-DATA-C to amp
- 7 violet BAND-DATA-D to amplify
- 8 brown TX INH to radio
- 9 black EXT ALC to radio
- 10 gray TX REQ to radio
- Light blue protector
Accessories YAESU SCU28
Reviews YAESU SCU28
Angel AG 07-02-2023 | 10:11
El producto es bueno, el problema reside en la dificultad que supone conectar este cable a un lineal acom 1000 que tiene una entrada de conector RCA. No he conseguido que funcione con el Yaesu FTDX 1200, en cambio va a las mil maravillas con el Icom 7300.
