YAESU SSM-17B Speaker-microphone for FT-25 walkies. FT-65, FT-4V, FT4X

Yaesu SSM-17B

YAESU SSM-17B Speaker-microphone for FT-25 walkies. FT-65, FT-4V, FT4X, MOTOROLA GP-300, DP-1400, CP-040, Series: Motorola XTN446, XTN500, XTN600, XTN, XTN-iD, XTN-i. XT Series: XT420, XT460, XTK446

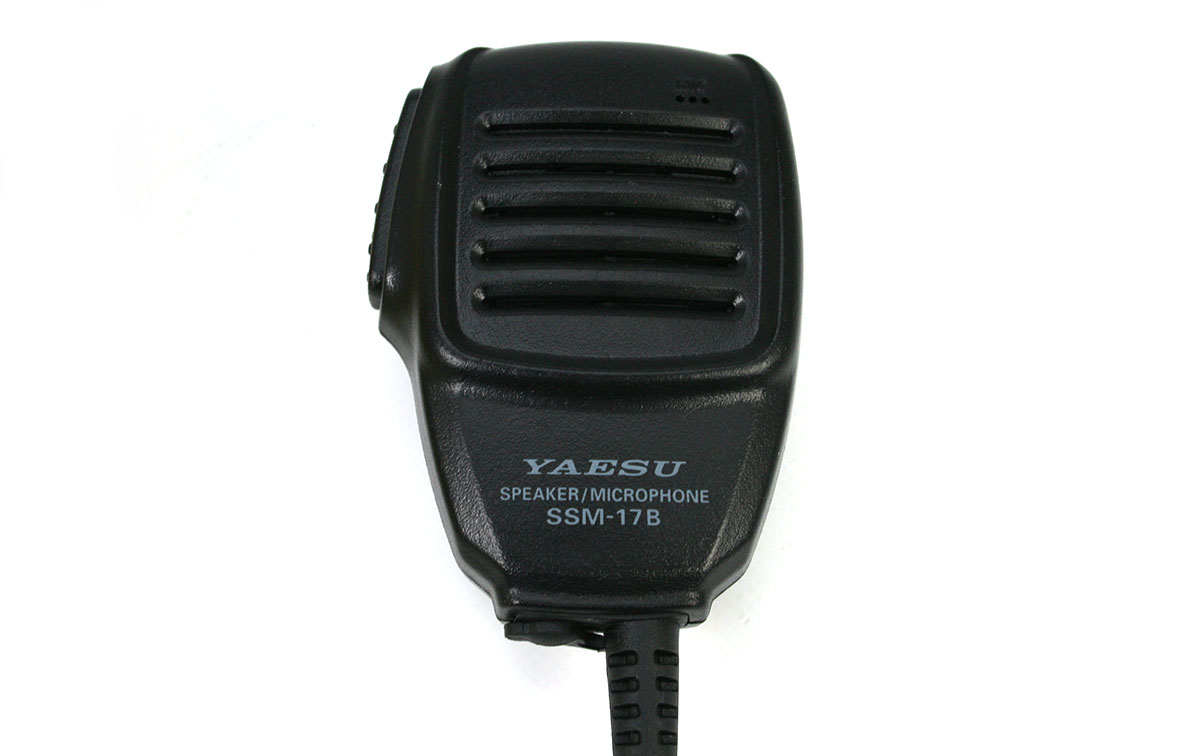

YAESU SSM-17B PROFESSIONAL Micro speaker for Yaesu and Motorola wakies with two-pin Motorola-type connector
High-quality professional speaker-microphone with PTT button. It incorporates a 3.5mm connection for an external earphone.
The extra resistant housing of this microphone combines perfectly with its rotating stainless steel clamp, making the SSM-17B an accessory prepared to withstand the harshest circumstances. The 4.2 mm PU cable of this microphone incorporates a spiral part to have a greater comfort of movement and to guarantee maximum resistance against jerks. Outer headphone connection type ref. PIN09AS and PIN10AS
Note: The earpiece is not included with the microphone

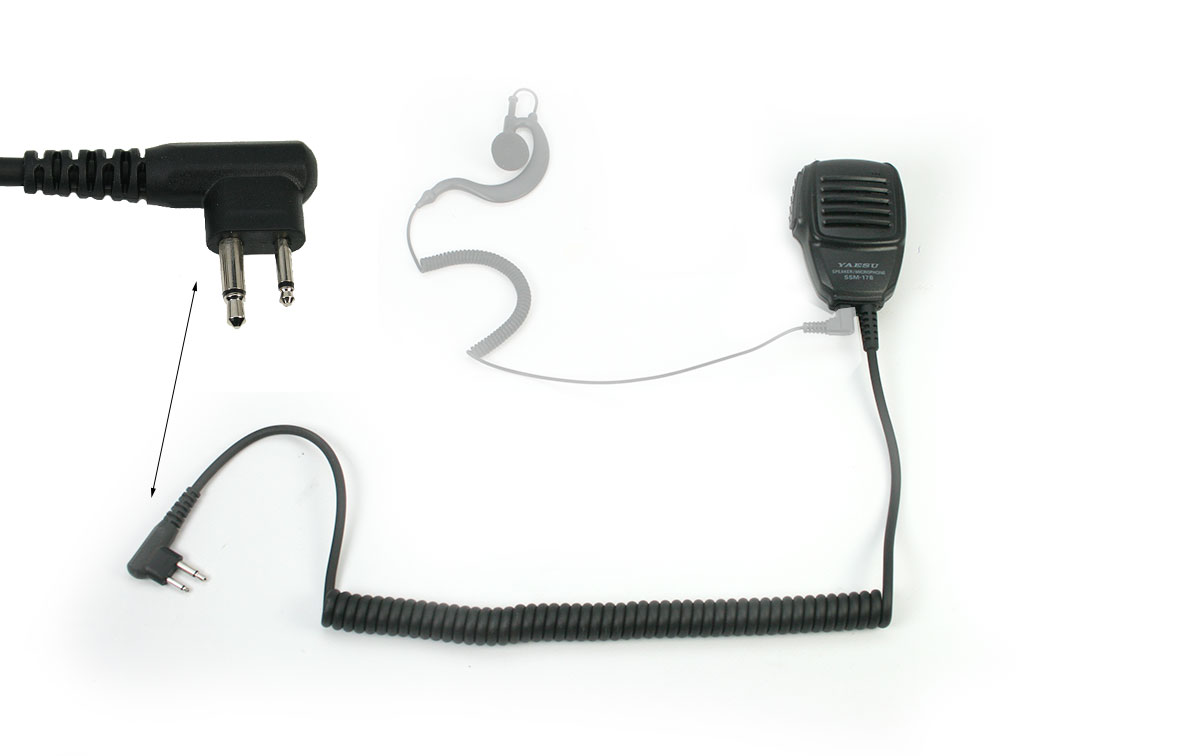

Two-pin Motorola type connector.
It has a headphone output for 3.5 mm connector

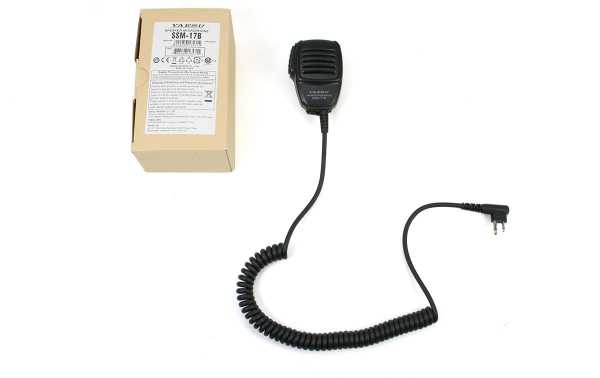

• 1 Handheld Microfo-speaker SSM17B

Characteristics

• Model: SSM17B
• Brand Yaesu
• External 3.5 mm headphone output
• 2 Pins Motorola type connector
• Curly cable length stretched 1 m
• Cable color Black
• Speaker:
• Diameter: 35mm
• Output Level: 94dB
• Input power: 2W
• Output impedance: 8 Ohms
• Microphone:
• Element Type: Electric Capacitor
• Diameter 6 x 2.7 mm
• Sensitivity: -40 dB
• Output impedance: 2.2K Ohms
• Frequency 20-16000 hz
