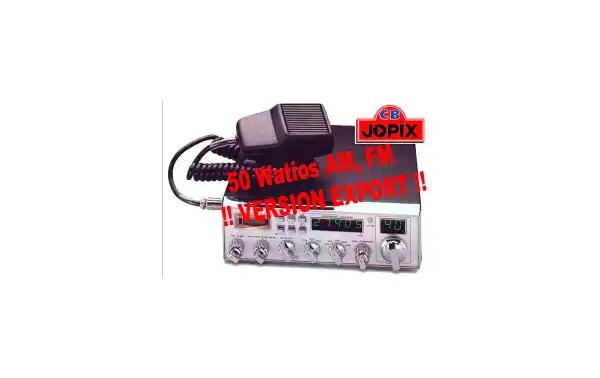

SUPER JOPIX 2000 Issuing movil Cb. AM/ LSB/ USB/ CW/ FM.

ref: SUPERJOPIX2000 VERSION EXPORT EMISOR RECEPTOR MÓVIL CB/ 27Mhz.
Canals: 40 Manners: AM/ LSB/ USB/ CW/ FM.

50 Watios AM FM
!! VERSION EXPORT!

VERSION EXPORT 50 WATIOS AM FM
(Attention: The use of this EMISORA JOPIX 2000 VERSION EXPORT quiet reserved to paises not belonging to the C.E. because of the restriciones of the normative European )

SPECIFICATIONS

GENERAL

 - Canals 40 AM 40 FM,40 40 USB 40 LSB.
 - Frequencies 26.965 - 27.405 MHz.
 - Control of frequencies by P.L.L. Sintetizador.
 - Tolerance frec 0.005%.
 - Stability frec 0.001%.
 - Border of temperature -302C - 502C.
 - Microphone Dynamic.
 - Voltage of food 13 Vcc /- 10%.
 - Consumption
         Tx - FM - 2'5 to.
         SSB - 5 to.
         Rx - 0'6 with silencer.
                1'2 to mÁx. Volume audio.
         Connecting Aerial VHF - 50.239.

TRANSMITTER

 - Boosts FM - 4 W.
                    AM - 4 w.
                    SSB - 12 W p/ p.
 - Modulation High and low level in class B.
                       Amplitude Modulation in AM
                       Modulation Frequency in FM.
 - Distortion of intermodulación SSB - Even 25 dB in 32.
                                                               Until 35 dB in 52.
 - Suppression of carrier to SSB 55 dB.
 - Answer of frequency AM And FM: 450 to 2500 Hz.
 - Impedance of exit 50 ohm.

RECEIVER

 - Sensitivity SSB: 0,25 UV to 10 dB s n/ N.
                         AM: 0,5 UV to 10 dB s n/ N.
                         FM: 1. UV to 20 dB s n/ N.
 - Selectivity AM/ FM: 6 dB (ii) 3 KHz, 50 dB@ 9 KHz.
                         SSB: 6dB @2.1 KHz, 60 dB@ 3.3 KHz.
 - Reject Image Until 65 dB.
 - Frequency intermediate AM/ FM - 10.695 MHz of 12 Fr and 455 KHz 2FI.
                                         SSB -10.695 MHz.
 - Reject canal adjacent 60 dB AM/ FM and 70 dB SSB.
 - Control of profit RF Adjustable until 45 dB.
 - Control automatic of profit Until 10 dB.
 - Boosts audío 4 W - 8 Ohm.
 - Answer Frec 300 to 2800 Hz.

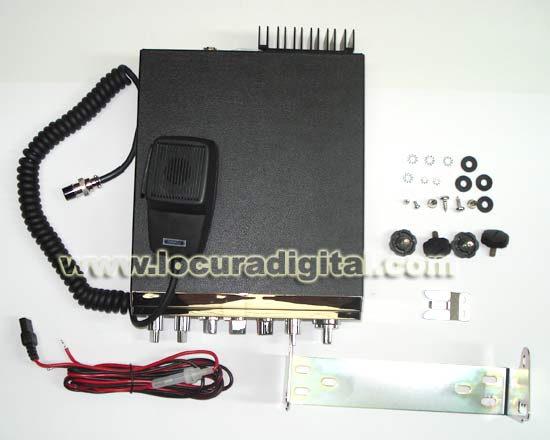

Content of the kit

Issuing CB Super Jopix 2000
Support stops radio station
Game of instruments for the assembly of the support
Cable food with portafusible

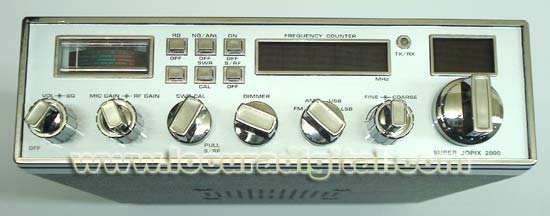

Sight front

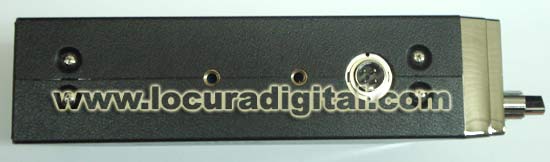

Sight lateral

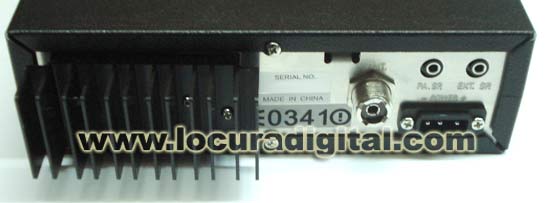

Sight posterior

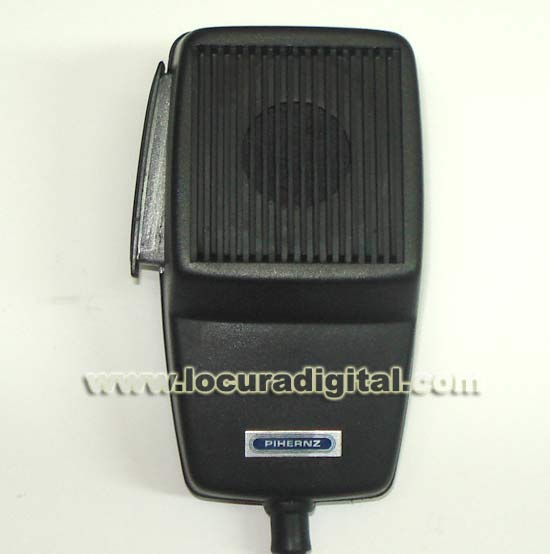

Dress front Microfóno

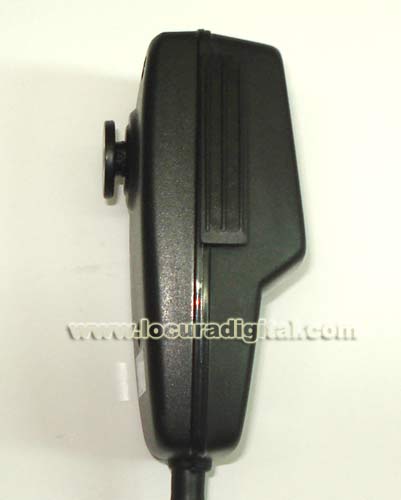

Dress lateral microphone

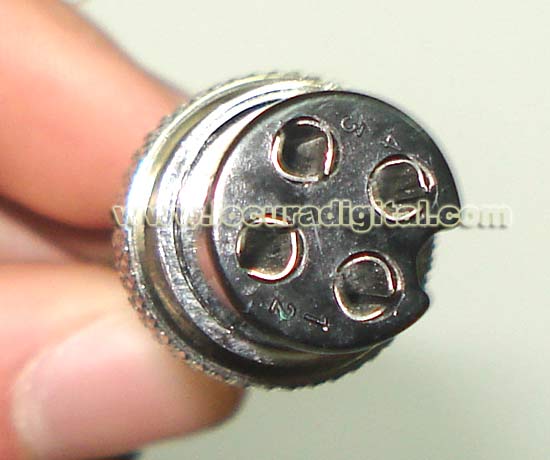

Connector of the microfóno

Carries fuse of the cable food

ref: SUPERJOPIX2000 EMISOR RECEPTOR MÓVIL CB/ 27Mhz. HOMOLOGADA Canals: 40 Manners: AM/ LSB/ USB/ CW/ FM.

SPECIFICATIONS

GENERAL

 - Canals 40 AM 40 FM,40 40 USB 40 LSB.
 - Frequencies 26.965 - 27.405 MHz.
 - Control of frequencies by P.L.L. Sintetizador.
 - Tolerance frec 0.005%.
 - Stability frec 0.001%.
 - Border of temperature -302C - 502C.
 - Microphone Dynamic.
 - Voltage of food 13 Vcc /- 10%.
 - Consumption
         Tx - FM - 2'5 to.
         SSB - 5 to.
         Rx - 0'6 with silencer.
                1'2 to mÁx. Volume audio.
         Connecting Aerial VHF - 50.239.

TRANSMITTER

 - Boosts FM - 4 W.
                    AM - 4 w.
                    SSB - 12 W p/ p.
 - Modulation High and low level in class B.
                       Amplitude Modulation in AM
                       Modulation Frequency in FM.
 - Distortion of intermodulación SSB - Even 25 dB in 32.
                                                               Until 35 dB in 52.
 - Suppression of carrier to SSB 55 dB.
 - Answer of frequency AM And FM: 450 to 2500 Hz.
 - Impedance of exit 50 ohm.

RECEIVER

 - Sensitivity SSB: 0,25 UV to 10 dB s n/ N.
                         AM: 0,5 UV to 10 dB s n/ N.
                         FM: 1. UV to 20 dB s n/ N.
 - Selectivity AM/ FM: 6 dB (ii) 3 KHz, 50 dB@ 9 KHz.
                         SSB: 6dB @2.1 KHz, 60 dB@ 3.3 KHz.
 - Reject Image Until 65 dB.
 - Frequency intermediate AM/ FM - 10.695 MHz of 12 Fr and 455 KHz 2FI.
                                         SSB -10.695 MHz.
 - Reject canal adjacent 60 dB AM/ FM and 70 dB SSB.
 - Control of profit RF Adjustable until 45 dB.
 - Control automatic of profit Until 10 dB.
 - Boosts audío 4 W - 8 Ohm.
 - Answer Frec 300 to 2800 Hz.

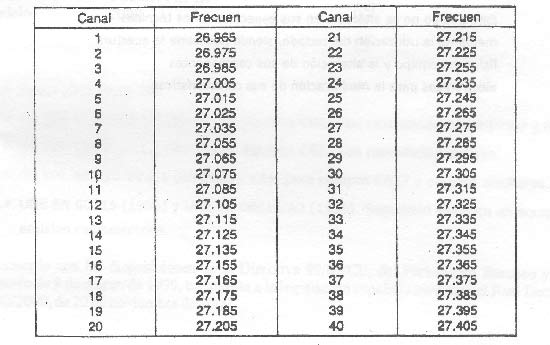

Table of frequencies
