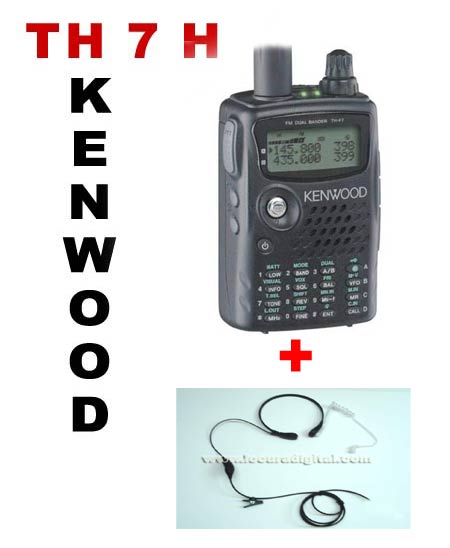

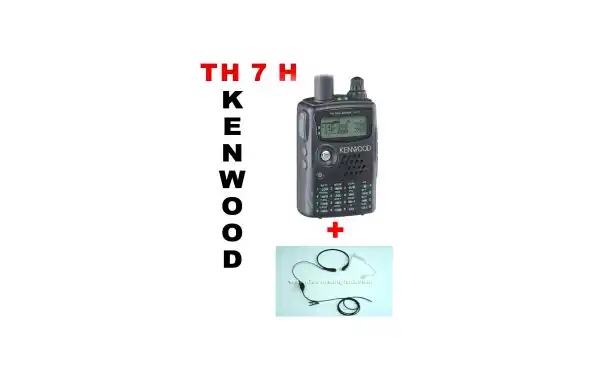

Walkie double band VHF/UHF KENWOOD TH-F7E! GIFT OF A PINGANILLO LARIN

KENWOOD THF 7 61666
Not available product.
  • THF7EKITA
  • ! GIFT OF A PINGANILLO LARINGOFONO! Walkie KENWOOD THF7. New portable transceiver TH-F7E appears like...

    More info


  • Not Available

We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..

Equivalent Products



 ! GIFT OF"0PINGANILLO LARINGOFONO  PLX 15K!













Walkie KENWOOD THF7E



MARKING DIFFERENCE

OUR PRICES ARE THE SAME ONE IN INTERNET, THAT IN STORE.

Easy handling
With the TH-F7 one highly prioritizes a easy handling, comfortable and coverall an intuitive game of menus. Thus, each operation becomes a simple drive with the thumb of the control multi-scroll with no need to turn aside the attention of the screen. Unlike the control of the TH-D7E, the one of the TH-F7E it is resembled but to the philosophy of joystick reason why atno moment it is necessary to separate the thumb of the control, of form similar to the control key of some movable telephones. It also incorporates a keyboard of 16 keys ergonomically spaced and illuminated for the operation in light absence.


Double Band
The TH-F7E has 2 bands: the main band or Band To and the sub-band or Band B. Although the main band covers the bands with 2 ms (144 MHz) and from 70 cm (430 MHz) in way FM, the sub-band or Band B it receives signals between the following margins: so that 2 signals even in the same band can be received simultaneously. In addition, an internal ferrite bar is gotten up to the chassis that makes the function of antenna for emissions of signals of broadcasting in A.M.. In fact, the transceiver exchanges automatically to this antenna when they choose in the Sub Band B frequencies below 10 MHz. This way, it is possible to belistening to a radio transmitter by the band B, at the same time that is used a standard channel by band A. When signals by the bandsare being received To and B simultaneously can adjust the balance between both bands. So that by the volume level it is possible to be distinguished what band is the one that is being received.


Display
To display LCD him the brightness and the resistance can be controlled, and gives information detailed about thepresent frequency (in double size in case of way monkey-band, for greater facility of reading), information of the channel of memory, the present way of work, the power output (high-low-very loss), of state of scan, blockade of indicating innovator as well as keys, function keys multi-level of the battery state.


Battery
Another important innovation is theIo'n-Litio battery, allowing a greater durability than those of Ni-Cd. Also it allows to be fed with 4 alkaline batteries if it is desired, by means of adapter BT-13. The fact that is very interesting it incorporates his own circuit of load, reason why the transceiver can be used while it is being loaded (DC to 13,8 V) through the adapter AC that is provided, or through the connector typeburner case of traveling in automobile.


Channels of Memory and Scan Manifold
Other specifications very to consider are the 400 channels of memory and the complete rank of functions of scan thatit incorporates): The Type of Scan allows to sweep a wished band or a rank of frequencies specified; in way memory it is possible to scan all the channels of memory that have recorded frequencies or only the groups of channels of scan previously created (up to 8 groups of they scan of a maximum of 50 channels each one).








ref: PINMATK

PIN MAT-K. Tubular Micro-Auricular with DOUBLE special PTT for noisy atmospheres, Military use, Security or industrialist.Ideal for Monitoring in Discotecas, concerts, etc....

The connector of this model is of two pins

Compatible for equipment KENWOOD UBZLJ8/THF7E/THK╚/THK╚T/THK╩/TK3201 -- ALAN CT200


 AURICULAR MAT-S MICRO TUBULAR DOUBLE PTT         AURICULAR MAT-S MICRO TUBULAR DOUBLE PTT



Double PTT

AURICULAR MAT-S MICRO TUBULAR DOUBLE PTT



Use of PTT 1

AURICULAR MAT-S MICRO TUBULAR DOUBLE PTT



Use of PTT 2

AURICULAR MAT-S MICRO TUBULAR DOUBLE PTT

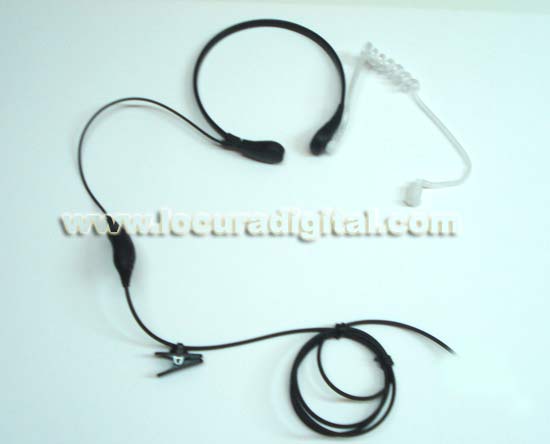

ref: PLX15K

PLX 15-K tubular Micro-Auricular with special PTT/ VOX for noisy atmospheres, Military use, Security or industrialist. Ideal for Monitoring in Discotecas, concerts, etc....

The connection is of two pins.

Compatible for equipment KENWOOD UBZLJ8/ TK3201/ TK3101/THK2/THK╚T/THK4/ THG71/ THF7/ THD7.


AURICULAR PLX15T5 LARINGOFONO TUBULAR MOTOROLA



Selection VOX/PTT

AURICULAR PLX15T5 LARINGOFONO TUBULAR MOTOROLA

Sencillisimo method of selection for VOX/PTT in which with single a small movement it will be able to activate the option that wishes more



PTT

AURICULAR PLX15T5 LARINGOFONO TUBULAR MOTOROLA

If it wishes will be able to select it function PTT andwith simple click it will be able to communicate with all



Tubular earpiece

AURICULAR PLX15T5 LARINGOFONO TUBULAR MOTOROLA

The tubular earpiece makes ideal for very noisy atmospheres, signaling clear and clear at any moment.




The TH-F7 allows to des/codificar up to 42 subtones CTCSS (analogical subtone) or 104 DCS (digital subtone) independent for eachchannel. Des/Codificador tones DTMF (Dual Tone Modulation Frequency) with keyboard of 16 keys with possibility of blockade for manual bearing or with a maximum of 10 memorizadas bearings.
Extinguished automatic of the transceiver after 30 min. without operation on the keyboard and receiving signals
Economizer of battery consumption
Timer of transmission TOT
Nonauthorized inhibitor of transmission for terminals
Function VOX with adjustable gain, automatically to enter transmission when detecting beginning of conversation. For it the use of microphones HMC-3 or KHS-21 is necessary.
Connector of entrance of micro formable loudspeaker for external applications: functions SP/MIC by defect, TNC for transmission of packets from 1200 to 9600 bps with the help of an external TNC and PC for the programming of the channels of memory fromPC
.

Sub Band B (Margin Way)
100 KHz - 470 MHz /SSB CW A.M. FM
470 MHz - 1,3 GHz /AM FM

Dimensions:
With BT-13 58 xs 87 xs 38 mm (wide x high deep x)
With PB-42L 58 xs 87 xs 30 mm (wide x high deep x)
Without battery 58 xs 87 xs 29 mm (wide x high deep x)





Accessories
