LUTHOR TLM-808 Dual band VHF / UHF transceiver 144/430 Mhz

LUTHOR TLM-808 Dual band VHF / UHF 144 / 430 MHz transceiver with dual display and extendible front panel. more Reference TLM808 | EAN 8435371904640

luthor
LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz
LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz LUTHOR TLM-808 BI-BAND RADIO STATION 144/430 / Mhz
avalaible
251,68 incl. VAT
208,00€ w/o VAT

Luthor TLM-808

Luthor TLM-808

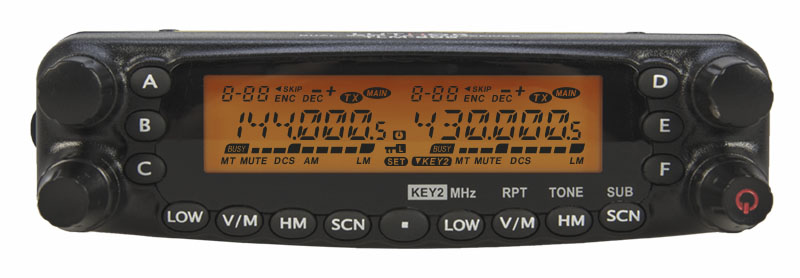

Dual band VHF / UHF 144 / 430 MHz transceiver with dual display and extendible front panel.
The brand new TLM-808 comes with 800 memories, different types of scanner, a max. output power of 50 W, CTCSS / DCS tones. The new mobile multiband 144/430 FM, ideal for working in full duplex, cross-band and dual receiver.
Its robust construction makes it ideal for working in the car, expeditions, etc ....

The TLM-808 is a transceiver for amateur radio that has many advanced features. The TLM-808 is a dual band equipment, in other words, the traditional VHF and UHF bands of any dual band.

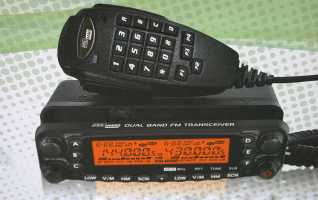

This transceiver is really two equipments in one, each side of the front panel has its own volume and squelch controls which greatly facilitates handling to manage two simultaneous frequencies, you will have up to 4 possible combinations between VHF, UHF all them in full duplex mode, double reception.

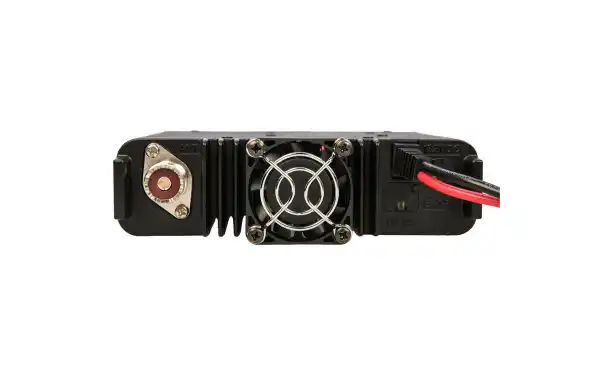

When we need our transceiver to work continuously at full capacity, it is there where LUTHOR also make the difference, its 50W in VHF and 35W in UHF are real, you will not have problems that the final step passes to QRP because we have overheated it. Internally the TLM-808 is provided with a thermal sensor so that if the control's temperature is exceeded the fan initiate automatically to later disconnect.

Aviation RX 108-134 AM Reception

LUTHOR TLM-808 transceiver

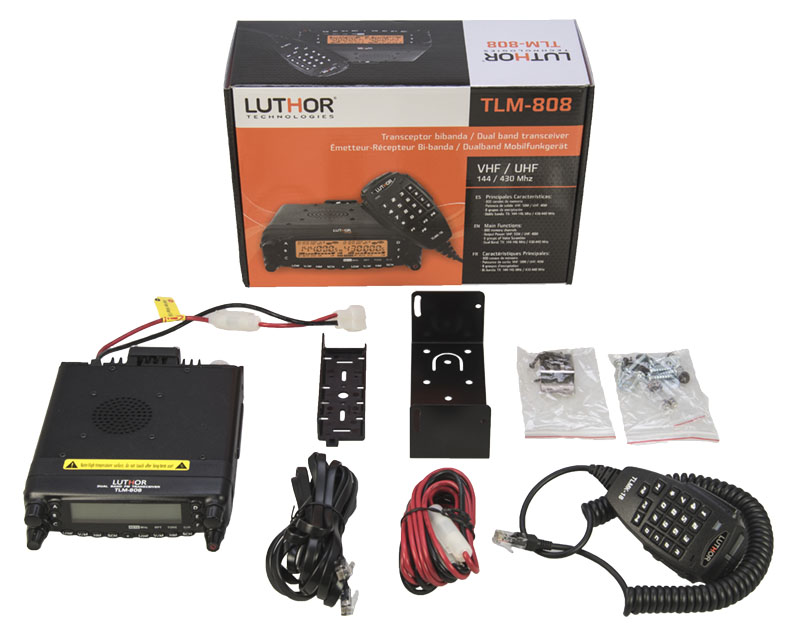

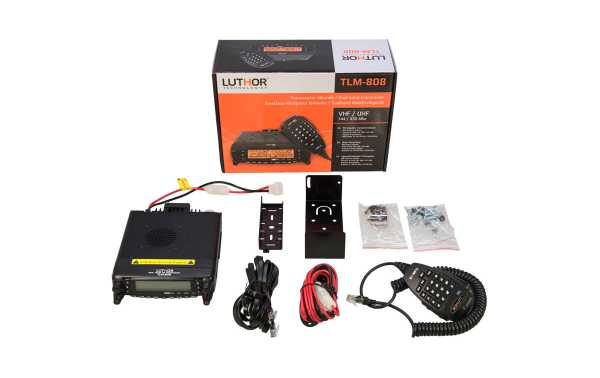

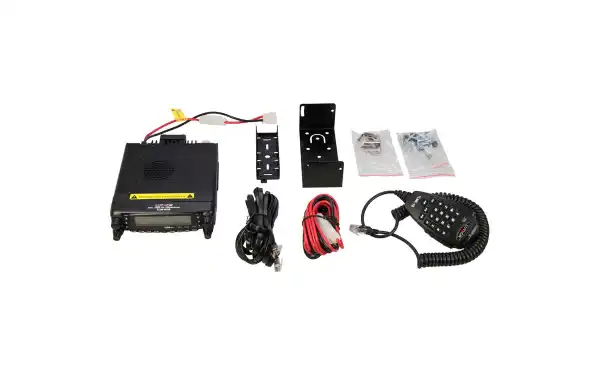

Kit Contents
  • 1 Luthor TLM-808 transceiver
  • 1 Reduced size speaker required for extendible front panel kit

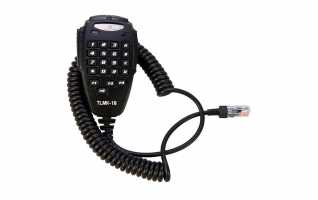

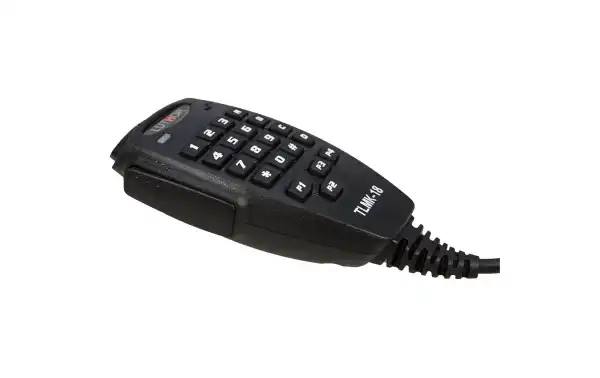

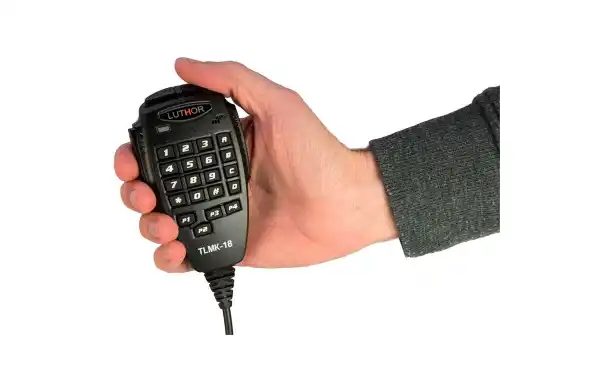

  • 1 Microphone with DTMF keypad
  • 1 12V Power cord

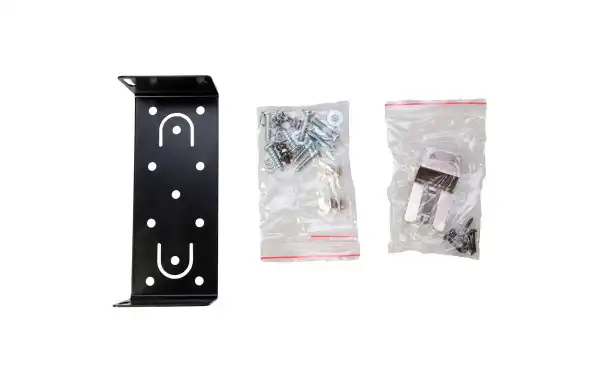

  • 1 Mounting bracket for front panel
  • 4 meters cable extension for front panel bracket
  • 1 Vehicle bracket type U
  • 1 Bag with all screws

LUTHOR TLM-808 transceiver

LUTHOR TLM-808 transceiver

Features

  • Four FM bands 144/430 MHz
  • Dual band reception. VU / VV / U U
  • Full Duplex Operation V U
  • Cross band repeater Operation
  • Independent knob and VOL / SQL button for each band
  • Ultra robust construction

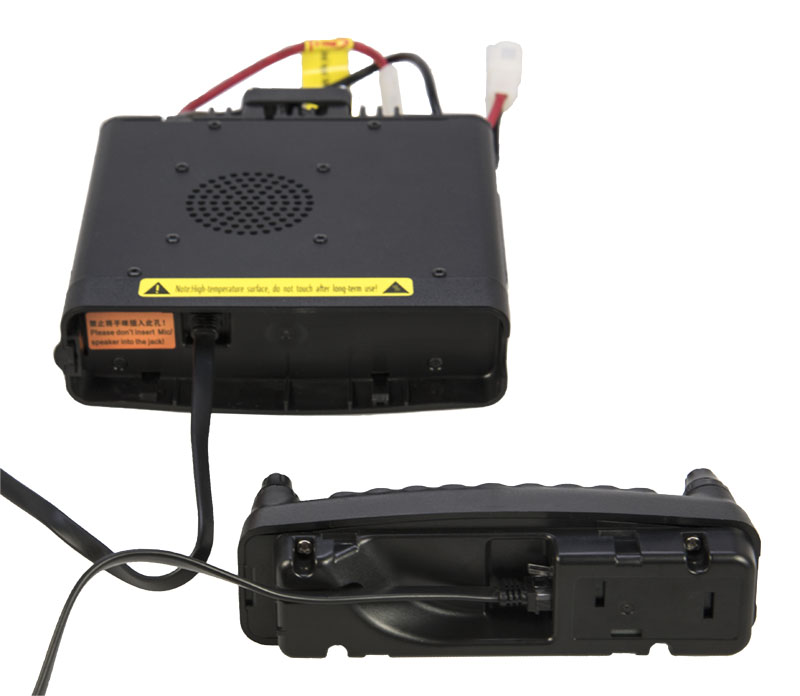

  • Extendible front panel optional installation
  • High power 50W (430 MHz: 35W)
  • Programmable microphone with keyboard
  • Bright Display
  • 50 CTCSS / 104 DCS coded tone system
  • ARTS (Auto Range Transponder System)
  • Smart Search (Automatic Memory Loading System)
  • Hyper Memory (Automatic storage of all configuration parameters)
  • Memory with 800 channels
  • Different types of scanner
  • RF Squelch
  • PC programming

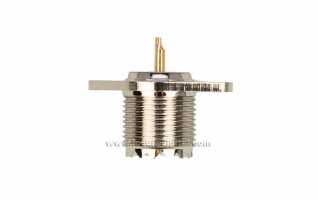

  • PL Female Connector
  • AM Reception
  • Keyboard lock
  • External Speaker Connection
  • Low Power 5W / Medium2 10W / Medium1 10W / High 50W / UHF 35W
  • ARS Function: automatic repeater offset
  • Frequency Scanning
  • Code 2-Tone and 5-Tone DTMF
  • ARTS Function reports if it is within communication range
  • Aviation RX 108-134 AM Reception
  • 1750 Hz tone
  • Frequency Steps 2.5 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
