Geosat 5 APRS Advanced APRS browser © for Amateur Radio

Advanced APRS © browser for Amateur Radio, A complete autonomy, AvMap Geosat 5 is an attractive multi-browser, applications, customized with Radio features. The Geosat 5 is easy to use, incorporating a Sirf 3 GPS tuner with 20 high sensitivity bands. more Reference GEOSAT5

geosat 5 APRS Navegador avanzado APRS para Radio Amateur
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.


The APRS Geosat 5 is a multi-browser applications, custom features of Amateur Radio. It is compatible with all Kenwood APRS radios including the current TM-D710. For the connection browser APRS Geosat 5 and the mobile terminal Kenwood TM-D710 is not necessary any additional accessories. The contents of the box Browser APRS Geosat 5 cable includes Kenwood APRS.

APRS Geosat 5 Browser Advanced Amateur Radio APRS
Complete autonomy
AvMap Geosat 5 is an attractive multi-browser applications, custom features of Amateur Radio.
The Geosat 5 is easy to use, incorporates a tuner Sirf 3 GPS high sensitivity 20 bands. It has a TFT touch screen 5-inch anti-glare night mode and auto brightness to promote the vision in all light conditions.

Box Contents

SD Card


Audio Video Cable

USB Cable

Cable Kenwood APRS

Suction cup mount


The solution out-of-the-box "for APRS

Geosat 5 includes a connection cable for Kenwood units

interface and a bidirectional RS-232 APRS APRS compatible

with ALL the Kenwood APRS radios including the new

TM-D710E. Geosat 5 provides the GPS position for

APRS radio beacons, and displays the information received

APRS in the exhibition of the map. The device can *

store up to 1000 contacts and view them on APRS

the map.

Icons APRS

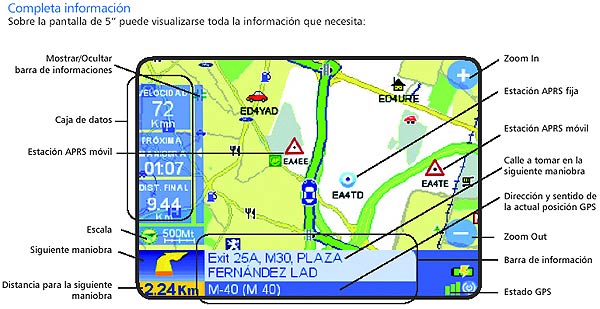

You can see APRS activity on the screen

distinguishing between fixed and mobile APRS stations.

The static positions are represented with icons

type portholes and mobile blue triangles

red, associated with their respective notices of call.

If used with a Kenwood TM-D710E and conforms to the

KENWOOD format settings, the Geosat 5 APRS

APRS supports standard icons.

Target intercept

You can set the Geosat 5 to navigate to their stations

Favorite mobile APRS and reprogram instructions

route according to new positions.

Tactical Mode

APRS Geosat 5 takes advantage of the configuration to

Kenwood format. The tactical mode allows you to select

APRS contact to see its speed, course and altitude,

besides its warning signal and position.



Dimensions 140x100x35, 4mm

Weight 390 g

Memory Support: SD Card 2GB

Touch LCD Display 5 "(12.7 cm) 65536 colors

Display Resolution: 320x240 pixels with automatic brightness control

ARM9 300M 32MB RAM

GPS Receiver Sirf Star III 20 channels

Rechargeable Li-Ion

USB PC interface

Audio Video Input

Port for external GPS receiver

Bi-directional NMEA 0183

Audio Output

Cable Kenwood (APRS ready) included


AvMap Operating Systems

Free software updates

2D, 3D, night vision

Holds up to 1000 addresses

Import database and adjusts speed controls alarm

Multiple destinations up to 10 crossing points

Postcode search

Routing options: quickest, shortest, off-road, less money

Avoid toll roads, pedestrian streets, ferry routes, U-turns, unpaved roads, construction areas

Take me home quick command

Time traffic information

real-TMC receiver

Full RS-232

APRS bidirectional


2GB SD Card with maps of Europe with much cover mapping

Tele Atlas and over 2 million points of interest.
