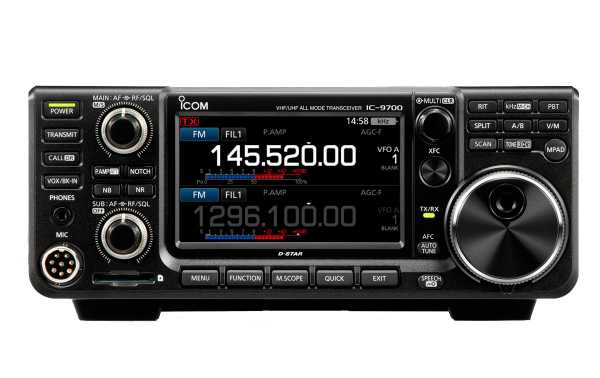

ICOM IC-9700 VHF/UHF Transceiver 144, 430/440, 1200 MHz with 100w

IC-9700

ICOM IC-9700 VHF/UHF Transceiver 144, 430/440, 1200 MHz with 100w, The IC-9700 is a tri-band transceiver in all modes, covering 2m, 70cm and 23cm. In addition to the traditional SSB, AM, FM, CW and RTTY modes, the transceiver also features D-STAR (Digital Intelligent Technology for Amateur Radio) DV and DD modes. A fully featured satellite mode has been added! There are three antenna connectors, one for 144, 430/440, and 1200 MHz.
Frequency coverage 144,000–146,000, 430,000–440,000, 1200 MHz

Characteristics

• TX Frequencies: 144-146-430-440-1240-1300 Mhz
• SSB, CW, RTTY, AM, FM, DV, DD mode
• Female PL Antenna Connector x 3
• Antenna Connectors 144 MHz SO-239, 430/440, 1200 MHz Type-N
• Voltage 13.8 volts
• Microphone impedance 600O
• Audio Output Power: More than 2.0 W (1 kHz, 10% distortion) into an 8 Ohm load
• Output power SSB / CW / RTTY / FM / DV / DD 144 MHz: 0.5–100 W 430/440 MHz: 0.5–75 W 1200 MHz: 0.1–10 W
• AM Power 144 MHz: 0.125–25 W 430/440 MHz: 0.125–18.75 W 1200 MHz: 0.025–2.5 W
• Measurements: 240 x 94 x 238 mm
• Weight: 4.7 kg.
