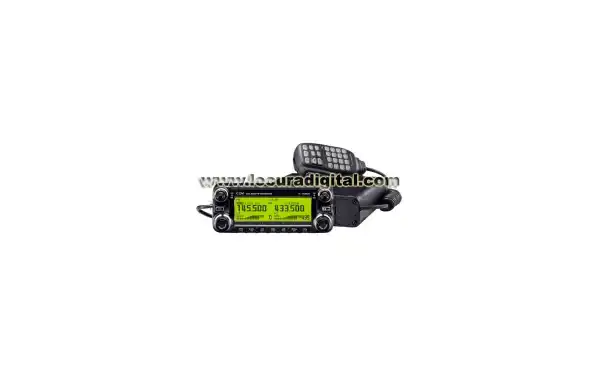

ICOM IC E2820 Issuing VHF - UHF

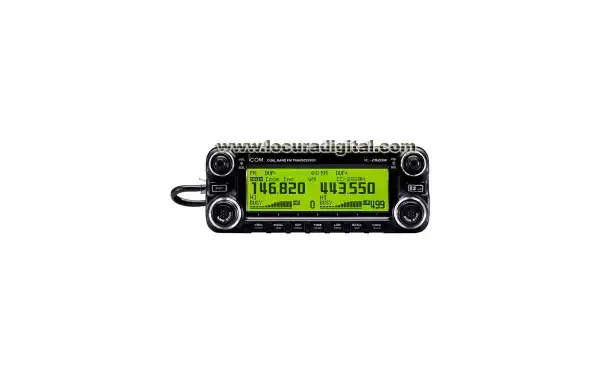

The ICOM E2820 is the successor of the ICOM 2725E. One slave trade of a bibanda with recepcion does two things simultaneously in VHF/ VHF UHF/ UHF the novelties are his abilities special in recepcion, a screen with very good definicion, power of 50 watts in both bands and everything with a design very successful.

Includes a system of recepcion util for operations moviles in situations where the intensity of the signal various constantly.
The team is able to compare the intensity of signal at every moment and the solito selects the better aerial for each situacion.

TX: 144-146 MHz
          430-440 MHz
   RX: 118-173.995 MHz
          230-549.995 MHz
          810-999.990 MHz.


- Rank of frequency TX:144-146 (VHF) 430-440 (UHF )
- Rank of frequency RX:118-549.995 and 810%u2013999.990MHz
-Modos:FM wide/ narrow, AM and manner DV (D star Optional )
- Double Recepcion Does Two Things Simultaneously VHF, VHF And UHF UHF
-522 Canals of Memory
-50 Watios of exit in VHF/ UHF
-3 Levels of Power 5/15/50W
- Jumps of Frecuencia:5 6.25, 10, 12.5, 15, 20, 25, 50 kHz
- Complete high power TX:13A
- Consumption in Standby :1,2
- New manner DV+Receptor GPS + Aerial with opcion UT 123

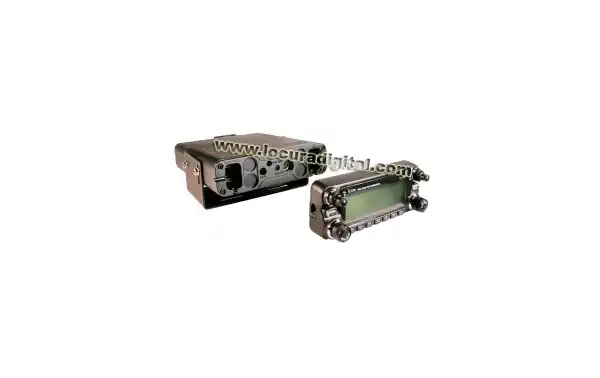

- Sized of the unit principal:150.0 x 40.0 x 187.7 mms
- Sized of the panel frontal:150.0 x 58.0 x 31.5 mms
- Weigh unit principal:1500 gr.
- Weigh panel frontal:210 gr.

Accessories Provided with the team:
Cable of alimentacion DC (3.m )
Cable of conexion front 10cm
Cable of separacion of 3,4 m
Microfono HM 133
Support of Assembly
Cover of the connector of microfono

Options not Provided:
CS 2820 Software of Programacion
UT 123 Unit"0Star + Aerial GPS
OPC 1529R Cable of data (Type RS 232C )





Frequency coverage

(Unit: MHz )

Version Transmit Receive


430/450 * 1

(L): 118%u2013549.995

(R): 118/173.995, 375/549.995, 810/999.99 * 3



430/440 * 2

(L): 118%u2013549.995

(R): 118/173.995, 375/549.995, 810/999.990

Export 137/173.995, 400/470 * 2

(L): 118/549.995

(R): 118/173.995, 375/549.995, 810/999.990

(L) means left side receiver, (R) means right side receiver

* 1 Tx/ Rx guaranteed range, 144%u2013148, 440%u2013450MHz.
* 2 Tx/ Rx guaranteed range, 144%u2013148, 430%u2013440MHz.

* 3 Cellular blocked.

Mode FM AM (Receive only) DV (With UT/ 123 )
Number of channels 522 (Including 2 call and 20 scan edges )

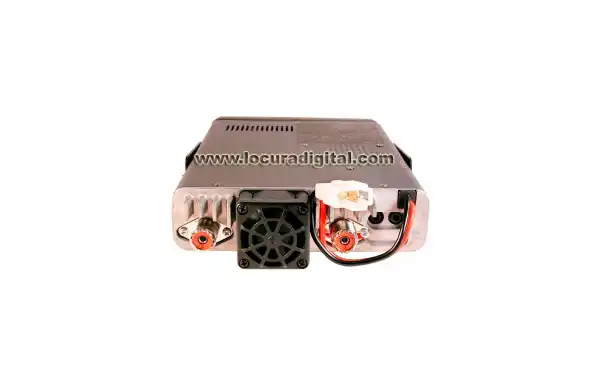

Antenna connector SO 239 (50%u03A9) 2 (Tx/ Rx and Diversity )
Power supply 13.8V DC 5%
Usable Temp. range

10C to +60C;

+14F to +140F

Frequency stability


(%u201310C to +60C on the basis of 25C )

Tuning steps 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50kHz

Current drain



(at 13.8V DC, approx. )

At high (50W ) 13A
Standby 1.2A
Max. Audio 1.8A


Main Unit


(projections not included; W×H×D )


5 29 %u2044 32 9 %u2044 16 13 %u2044 32 in


5 29 %u2044 32 9 %u2044 32 1 %u2044 4 in

Weight (approx.)

Main Unit


1.5kg; 3.3lb

210g; 7.4oz (with OPC 1712 )

Output power 50W, 15W approx., 5W approx.
Max. frequency deviation .0/2.5kHz (Wide/ narrow )
Spurious emissions Less than %u201360dB
Microphone impedance 600%u03A9 (8 pin modular jack )

Intermediate frequency

Left side receiver

Right side receiver

38.85MHz/450kHz (1st/2nd )

46.35MHz/450kHz (1st/2nd )

Sensitivity (Ham bands only )

FM (12dB SINAD )

DV (BER 1% with UT 123 )

Less than 0.18%u03BCV

Less than 0.35%u03BCV

Squelch sensitivity Less than 0.13%u03BCV (at threshold )


FM (Wide/ narrow )

DV (With UT 123 )

Dwell than 10/6kHz at 6dB

Less than 30/20kHz at 60dB

Dwell than 50dB

Spurious and image rejection

Left side receiver

Right side receiver

Dwell than 60/55dB (VHF/ UHF )

Dwell than 60/60dB (VHF/ UHF )

Audio output (at 13.8V DC )

Dwell than 2.4W

at 10% distortion with an 8%u03A9 laud

Ext. speaker connector 2 leading 3.5 (d) mm (1 %u2044 8 %u2033) /8%u03A9

Receiver sensitivity

FM (12dB SINAD )

AM (10dB S/ N )

(Less than; not guaranteed, for your reference only )

All stated specifications ploughs subject to change without notice or obligation.
