ICOM IC-905 Multiband VHF/UHF/SHF Transceiver
The Icom IC-905 is a multi-band, all-mode transceiver designed for amateur radio operators who want to explore the world of microwaves. It covers bands from 144 MHz to 5,600 MHz, and even 10 GHz with the optional CX-10G transverter.
Make the first review3.999,00€ VAT included 3.304,96€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description ICOM IC905
The Icom IC-905 is a multi-band all-mode transceiver designed for radio amateurs who want to explore the world of microwaves. It covers bands from 144 MHz to 5,600 MHz, and even 10 GHz with the optional CX-10G transverter.
It offers operation in SSB, CW, AM, FM, RTTY, DV/DD, ATV, and FM-TV modes. Its separate control and RF unit configuration minimizes losses, and its integrated GPS oscillator ensures precise frequency stability. It is ideal for high-frequency communications and SHF experimentation.
PDF file
Some of the features that the Icom IC-905 offers are:
- Operation on bands: 144, 430, 1,200, 2,400, 5,600 MHz + 10 GHz (with CX-10G)
- Modes: SSB, CW, AM, FM, RTTY, DV/DD, ATV
- Powers: 10?W (144, 430, 1200 MHz), 2W (2.4/5.6GHz), 0.5W (10 GHz)

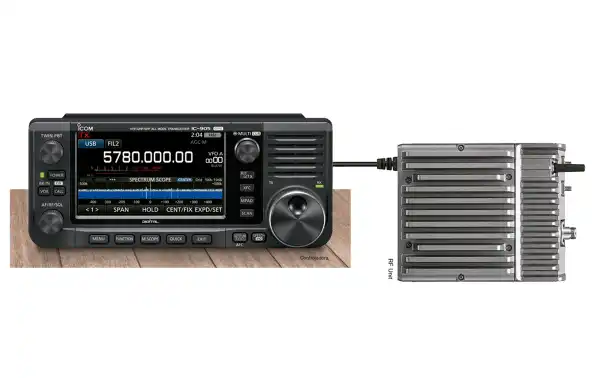

- External RF unit to eliminate coaxial losses
- High-precision oscillator with GPS control (1PPS)
- Real-time broad spectrum up to 50MHz
- Touch graphical interface based on IC-705
- ATV mode (FM-TV: NTSC, PAL, SECAM)
- Full D-STAR Functions: DR, Terminal, Access Point

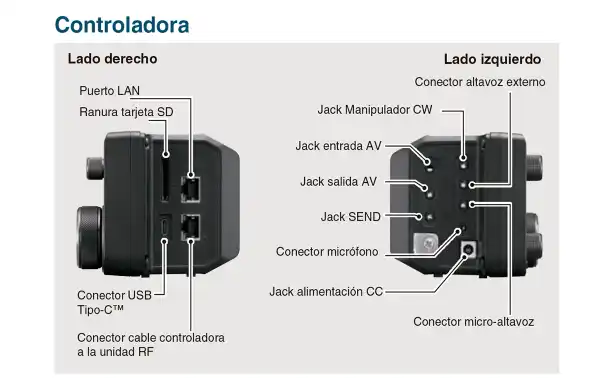

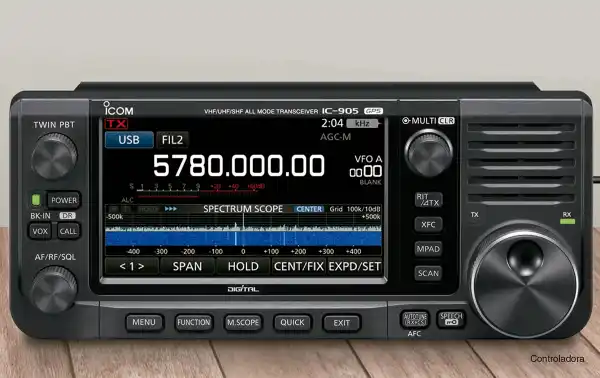

- Control unit

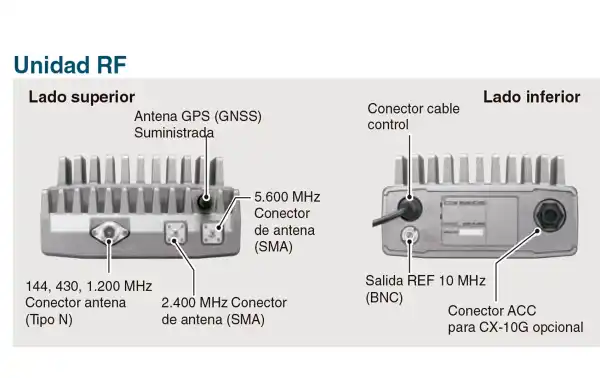

- RF Unit
- OPC-2488 power cable
- HM-243 Speakerphone
- Bracket and clamp kit
- Controller cable (5m)
- User Manual
Technical characteristics
- TX/RX bands: 144146, 430440, 12401300, 23002450, 56505850 MHz
- 10 GHz with CX-10G: 10,00010,500 MHz
- Power requirements: 13.8V (controller unit) / 12V (CX-10G)
- Antenna impedance: 50O
- Frequency stability: ±65 ppb (with GPS)
- Consumption: RX max. 3A / TX max. 5.5A
- Dimensions:
- Controller unit: 200 × 83.5 × 82 mm
- RF Unit: 172 × 87 × 210 mm
- CX-10G: 181 × 115 × 64 mm
- Weights:
- Controller unit: 940 g
- RF Unit: 3.2 kg
- CX-10G: 13.4 kg
- Audio output: Internal speaker 530mW, external 200mW
- Composite video and audio outputs: 1Vp-p, 600?O
- CX-10G conversion gain: 67 dB
