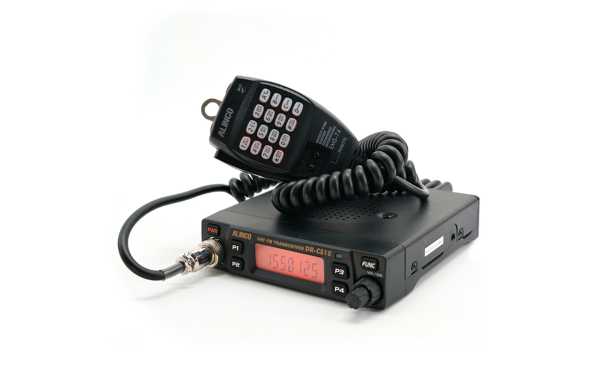

Alinco DR-CS-10 Ultra compact mobile transmitter VHF 144-146 Mhz 60 watts

Alinco DR-CS10

Alinco DR-CS-10 Ultra compact mobile transmitter VHF 144-146 Mhz. Alinco DR-CS-10 is an ultra-compact VHF mobile transmitter that operates in the 144-146 MHz frequency range. Being a mobile transmitter, it is designed for use in vehicles, such as cars, trucks, etc.
High power transmitter 60/25/10 watts
VHF mobile station with 200 memories, CTCSS/ DSC subtones etc.
The large LCD display allows us to visualize without problems the information related to the channel of use or working frequency, subtones, deviation, etc.
Ultra robust construction. Another important advantage of the Alinco DR-CS10 is that it is supplied with the DTMF microphone as standard, this provides us with direct access to frequencies, marking DTMF tones.

Characteristics

• VHF mobile
• TX transmission: 144-146 MHz
• RX reception: 136-1739975 Mhz
• Modulation modes: FM
• Maximum power: 60/25/10 Watts
• memories 200
• APO function
• timer timeout
• Antenna impedance: 50 ohms
• Selectable in 3 levels 60 / 25 / 10 watts
• 1750hz tone
• Power 13, 8 v.
• Volume and on/off adjustment
• Squelch RF
• programmable microphone
• LCD display
• keyboard lock
• Frequency Step 2.5kHz,5kHz / 6.25kHz / 8.33kHz /10kHz / 12.5kHz / 15kHz / 20kHz / 25kHz / 30kHz /50kHz
• frequency scanner
• Channelization 25 kHz / 20 kHz / 12.5 kHz
• function key F
• voice compressor
• PC programmable
• Subtones 51 CTCSS/1024 tones-DCS coded tone system.
• Selective call 2 and 5 tones
• Max audio power: 5 W
• Weight 900 gr. with microphone power cable
• Approximate dimensions: 145mm ( X 25mm X 190mm
• Consumption :500 mA nominal / 800 mA max.1
• PL female antenna connector
• 8 pin microphone connector
