Tagra VH2A Mobile Antenna VHF 5/8 power 150w Length 1470 mm
Tagra VH2A Mobile Antenna VHF 5/8 power 150w Length 1470 mm Mobile antenna rod stainless steel 5/8 VHF 136-175 Mhz. Antenna length 1.47 meters. High quality complete antenna widely used in off-road vehicles, ideal for mounting or making a hole in she
Make the first review65,24€ VAT included 53,92€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description VH2A
Tagra VH-2

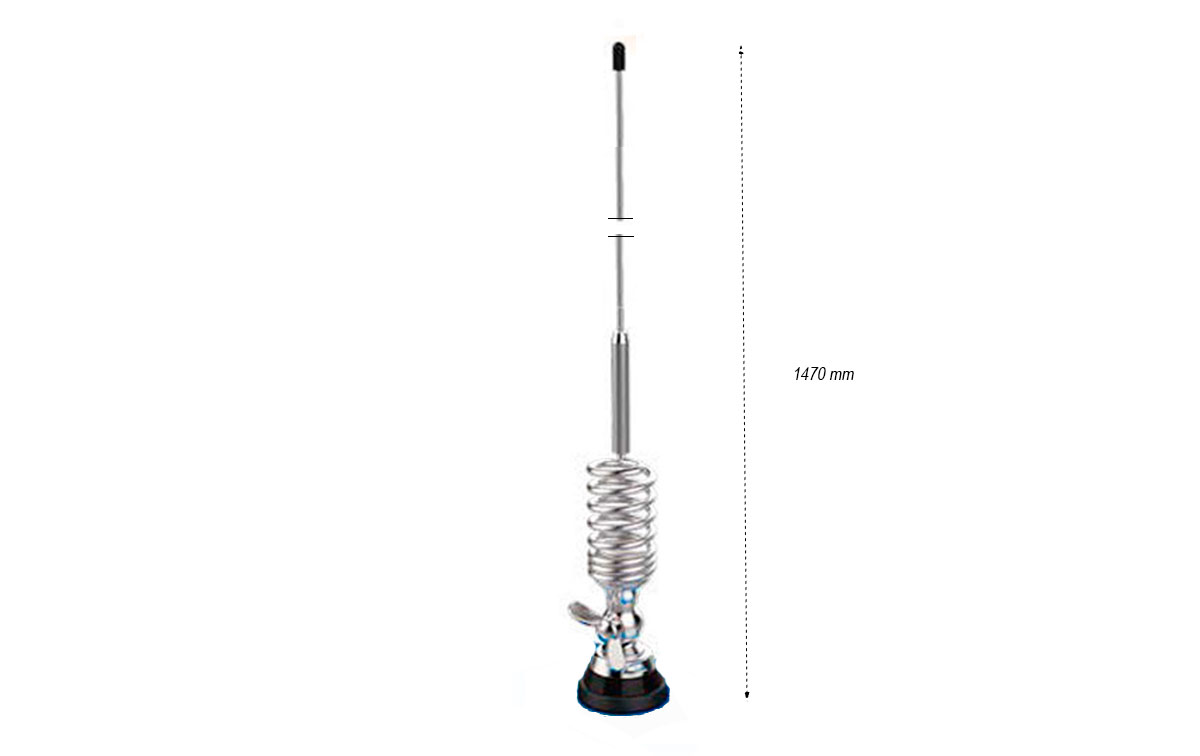

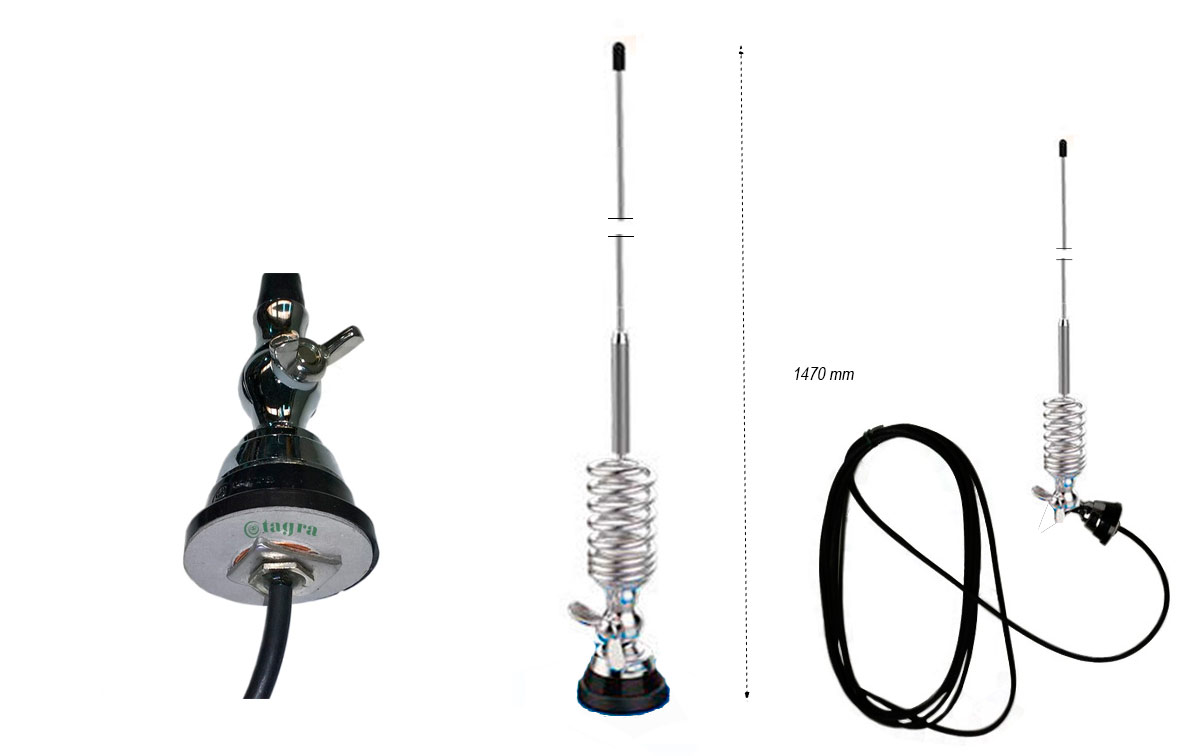

Tagra VH2A Mobile Antenna VHF 5/8 power 150w Length 1470 mm
Stainless steel rod mobile antenna 5/8 VHF 136-175 Mhz. Antenna length 1.47 meters.
High quality complete antenna widely used in off-road vehicles, ideal for mounting or making a hole in sheet metal.
Palomilla stainless steel rod with spring. RG-58 cable length 4 meters.
Power 150 W
Gain (dB) 3 dB (5.15 dBi)
Impedance 50 ohm
Mounting Hole 13 mm
Includes 4m RG58 cable,
Does not include station connector. You may be interested in connectors for the antenna or the transmitter example: Connector necessary for the antenna PL male ref.PL259 this connector is also usually carried by the transmitter see

- 1 Tagra VH-2 antenna
- 1 Base
- 5 meters RG-58 cable

Characteristics
- Frequency: With cutting board 136-174 Mhz
- Gain 5.5 dbi
- Impedance 50 ohms
- SWR 1.2
- Vertical polarization
- Bandwidth 6.5 Mhz
- Antenna length 1.47 mt
- STAINLESS STEEL rod
- Maximum power. 150 watts
- Weight 500 gr.
- Mounting hole required 13 mm.
- Base diameter 40 mm.
