Reference BANTEN18040 | BANTEN
BANTEN 18040 VHF MOBILE ANTENNA 5/8 136-175Mhz Vehicular whip
BANTEN 18040 VHF Mobile Antenna 5/8 136-175Mhz Vehicular whip; Gain 3dBi. Made of Stainless Steel
Make the first review NOTIFY
not available
Description BANTEN BANTEN18040
BANTEN18040

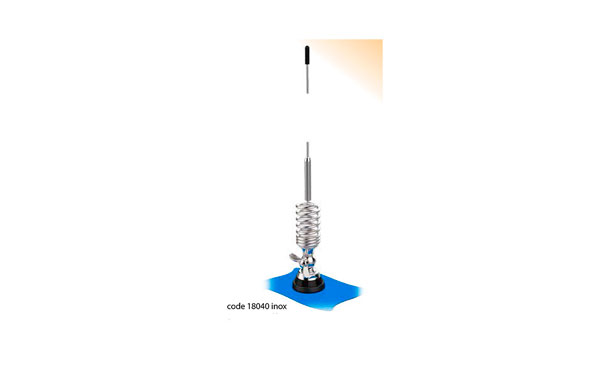

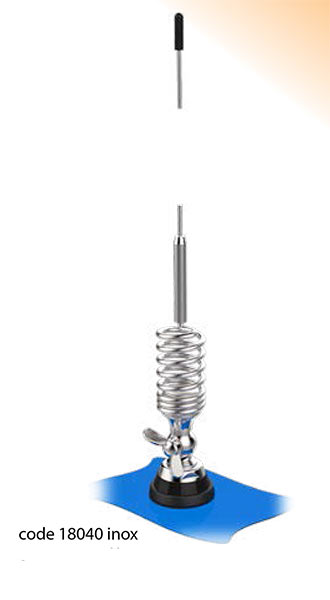

BANTEN 18040 VHF Mobile Antenna 5/8 136-175Mhz Vehicular whip; Gain 3dBi. Made of Stainless Steel
Complete high quality antenna widely used in military, ideal to mount with a bracket or to make a hole on the lock.
Stainless steel whip and spring. 5 meters length of RG-58 cable.
Does not include the station connector.
Kit Contents
- 1 Banten 18040 Antenna
- 1 Base
- 5 meters RG-58 cable
Features
- Frequency 136-175Mhz
- Antenna type 5/8 wave

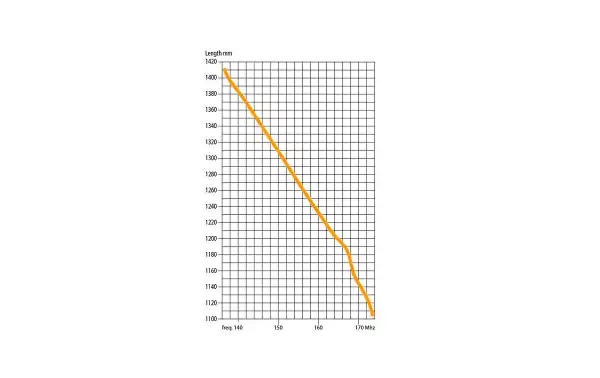

- Length 1,40m
- Polarization Vertical
- SWR <1,5
- Impedance 50 Ohm unbalanced
- Gain 3dBi
- Maximum power 100W
- Bandwithdt at lowest freq: 6,5MHz
- Base diameter 40mm

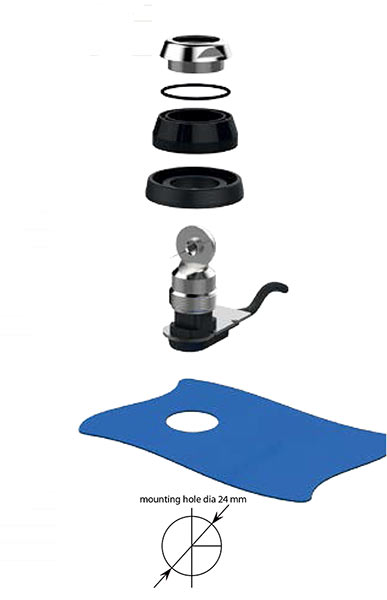

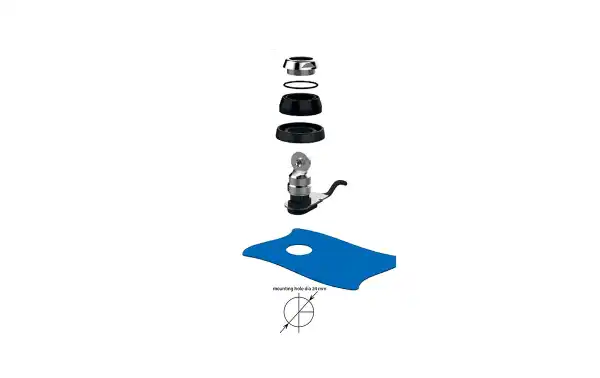

- Mounting hole 24mm
- Base material Chrome plated brass
- Whip material Stainless steel 17/7 pH standard
- Mount on conductive surface
- Weight 500g
- Working temperature from -35ºC to 80ºC
