BANTEN
Reference BANTEN14051 | BANTEN

BANTEN 14051 VHF DIPOLE ANTENNA 146-174Mhz

BANTEN 14051 VHF Dipole Antenna 146-174Mhz; Gain 4dBi. Made of Stainless Steel

Make the first review

187,55 VAT included 155,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

not available Will be received soon Delivery price from 6,50€

Description BANTEN BANTEN14051

BANTEN 14051

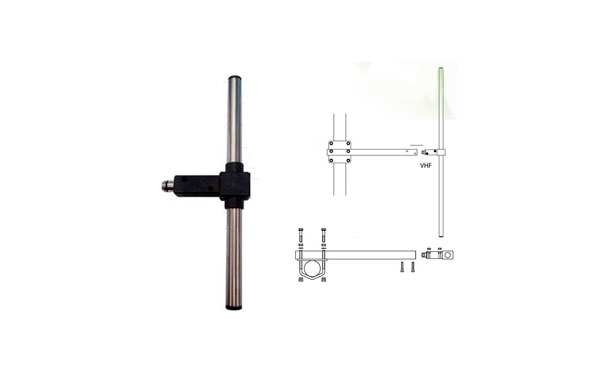

BANTEN 14051 VHF Dipole Antenna 146-174Mhz; Gain 4dBi. Made of Stainless Steel


Meets MIL-STD 810E / MIL-STD 167-1 / MIL-T-704K standards.
temperature, salt, ice, sun irradiation resistance in accordance with mil std 810e

Kit Contents
  • 1 Banten 14051 Antenna

banten14050 banten dipolo vhf 136 146 mhz ganancia .2,15 dbi.fabricado en acero inoxidable

Features

  • Frequency 146-174Mhz
  • Dipole length 0,90m
  • Polarization Horizontal
  • Distance from mast 0,5m
  • Max wind resistance 200km/h

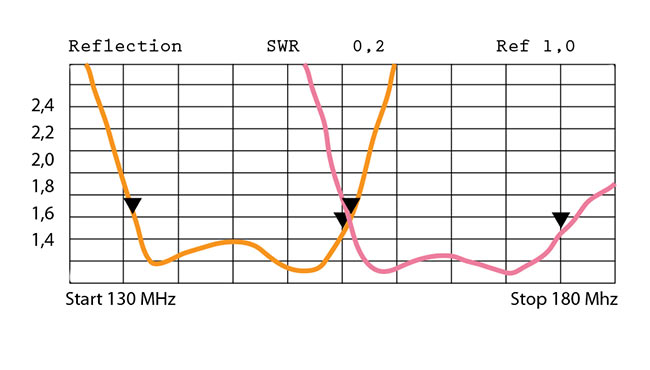

  • SWR <1,5
  • Impedance 50Ohm
  • Gain 4dBi
  • Maximum power 200W
  • Horizontal irradiation 210º
  • Vertical irradiation 78º
  • Antenna connector N Female
  • Antenna structure Stainless Steel 304
  • Weight 2Kg
  • Working temperature from -35ºC to 80ºC
