Reference MAASVGP30AVHF | MAAS

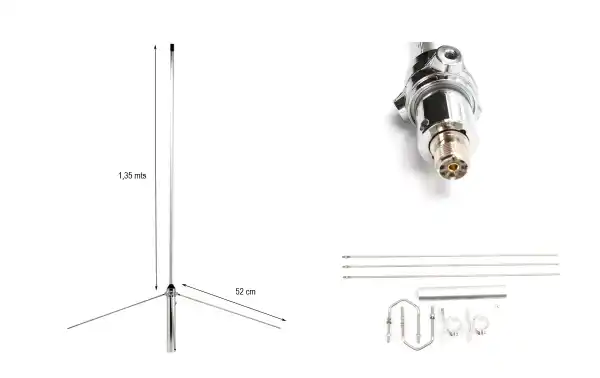

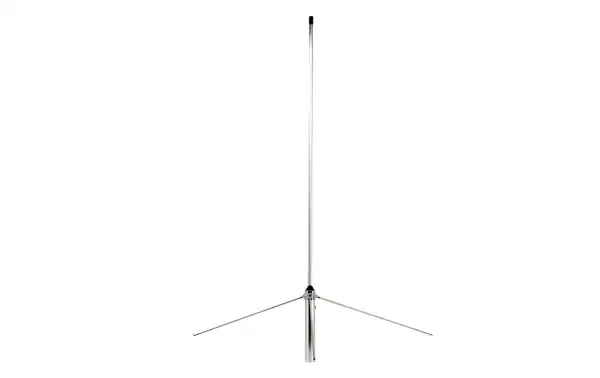

Maas VGP-30-A VHF Base antenna VHF144/174 Mhz. Length 1.35 meters
VGP-30-A VHF MAAS Germany. 5/8 omnidirectional base antenna for VHF from 144 to 174 Mhz. Adjustable by cutting board. It is made of aluminum and stainless steel. Bandwidth 4 Mhz. Gain 3.5dBi. 150 watts of power. PL connector
Make the first review61,02€ VAT included 50,43€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€
Description MAAS MAASVGP30AVHF
TORNADO-MAG-V/U
MAAS VGP-30-A Aluminum base mono band VHF antenna 144-174 MHz. VGP-30-A VHF MAAS made in Germany. 5/8 omnidirectional base antenna for VHF from 144 to 174 Mhz. Adjustable by cutting board. It is made of aluminum and stainless steel. Bandwidth 4 Mhz. Gain 3.5dBi. 150 watts of power. Female PL connector. Length 1.35 meters. Weight 0.8kg

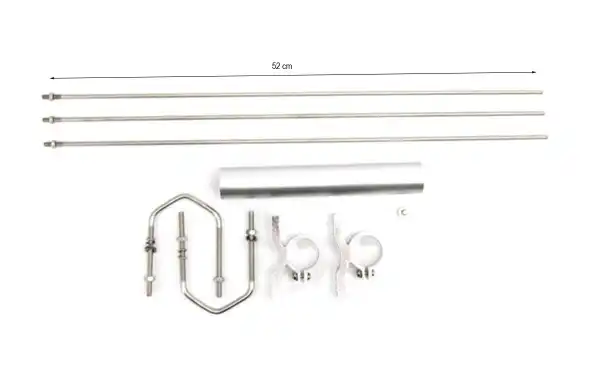

kit content
- 1 Base Antenna
- 2 mast support

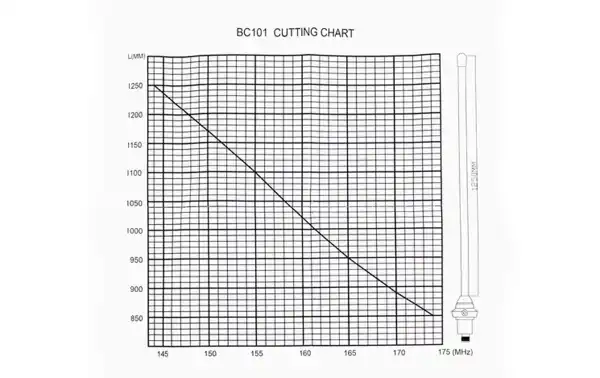

- 1 sheet with cutting board
Features
- Model VGP-30A
- MAAS brand
- SINGLE BAND format
- Frequency 144 MHz / 5/8 wave
- Gain 3.5dBi
- Impedance 50 Ohms
- Material Aluminum and Stainless Steel Flanges
- Vertical Polarization
- Frequencies 144 -174 Mhz adjustable by cut
- Maximum power 150 watts
- Stationary VSWR:1.5
- PL Female Antenna Connector
- Color Silver aluminum color
- Antenna Length 1.35 meters
- 3 x radial length 52 cm
- Bandwidth 4Mhz
- Cable length 4 meters RG-174
- Total weight 800 gr.
