SIRIO RMGA 55-550 Rod 1/4 of 55-550 Mh, wing type
SIRIO RMGA 55-550 (old: SIRIO MAG 75 ROD) 55-550 Mhz 1/4 wave rod with spring, wing type. It is the antenna rod complete with base and cable: MGA 55-550 S. ** ATTENTION: This reference is only the rod **
Make the first review14,28€ VAT included 11,80€ excl. VAT
Description SIRIO RMGA55550
SIRIO-RMGA-55550-S

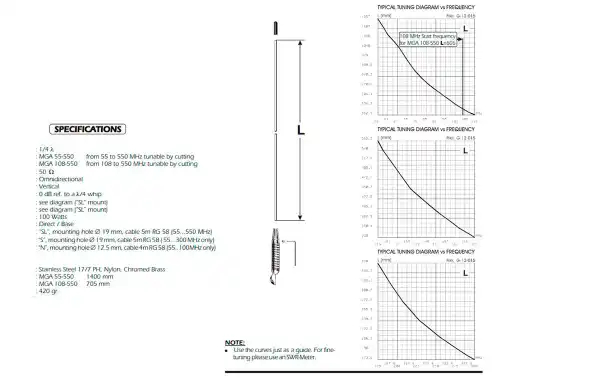

SIRIO RMGA 55-550 (old: SIRIO MAG 75 ROD) 55-550 Mhz 1/4 wave rod with spring, wing type. It is the antenna rod complete with base and cable: MGA 55-550 S. With cutting table to adjust to the working frequency, it is necessary to make a cut on the rod to adjust the desired frequency.
Valid for: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Air Band, VHF Nautical Band, VHF Low Band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, FM, ISM-169MHz, VHF-260MHz
** ATTENTION: This reference is only the rod **
- 1 RMGA-55550s Antenna
- 1 Base wing nut
- 4 Meters Cable RG-58
Features
- Type - Type - Type omnidirectional
- Folding format
- Frequency - Frequency - Fréquence 55-555 MHz Adjustable by rod cut
- Power - Power - Puissance 100 W
- Gain - Gain (dB) - Gain 0 dB
- Format 1/4
- Polarization - Polarization - Vertical Polarization
- Impedance - Impedance - Impédance 50 Ohm
- Adjustment type - Adjust type - Type d'ajustage Adjustable
- SWR - SWR 1.1: 1
- Radiant Length - Lenght (mm) 1400mm
- Dock
- Type connect. - Type of conn. - Type of conn. S
- Gross weight - Gross weight (gr.) 420gr.
