Tagro CVX425 professional fiberglass collinear antenna 400-450 Mhz.

Tagro CVX425 professional fiberglass collinear antenna 400-450 Mhz.

CVX425
CVX425 CVX425

Referencia: CVX425 (TAGRA)

avalaible

64,86 incl. VAT

53,60€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.
CLC 425

CVX 425

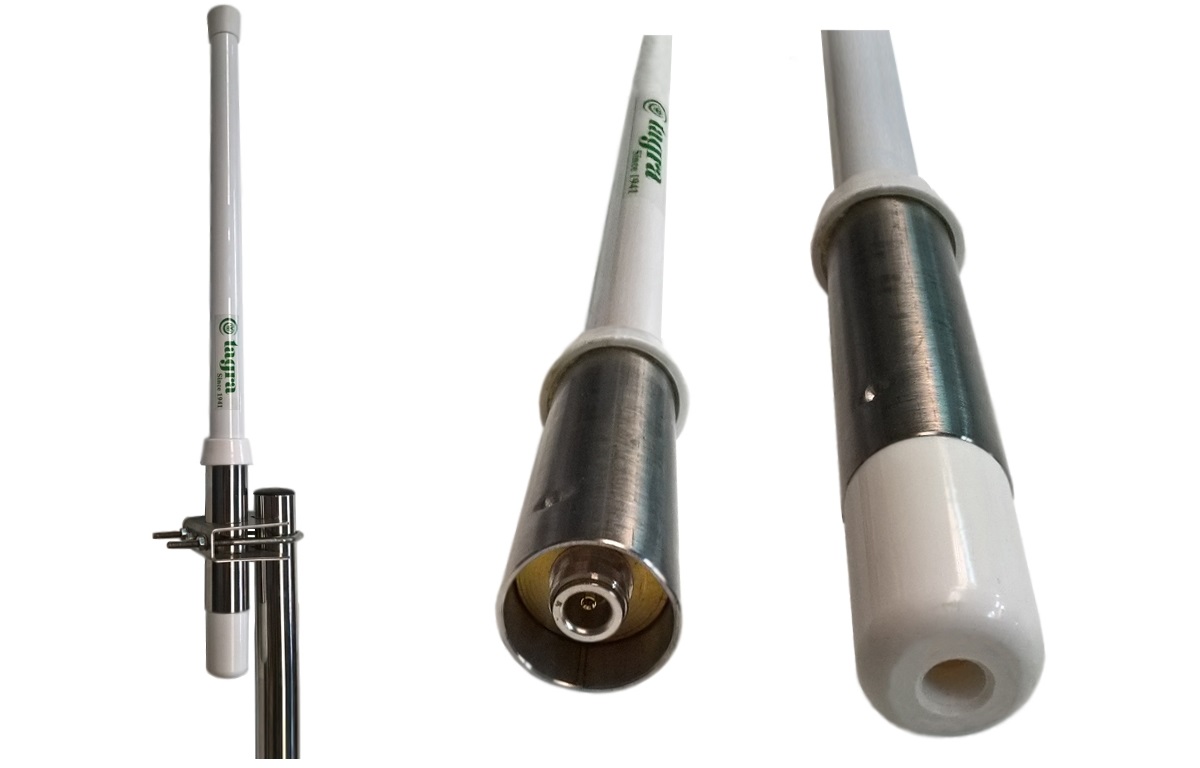

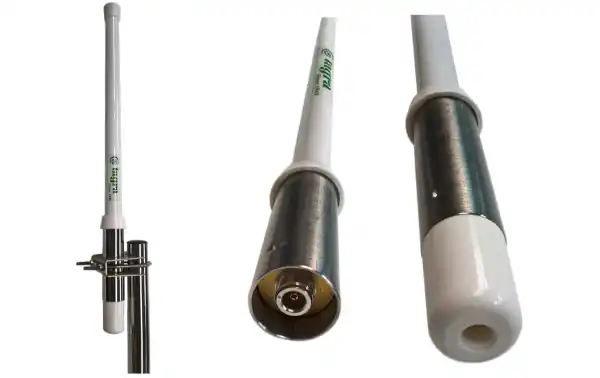

CVX425 TAGRA Professional colinear antenna Fiber Glass 400 450 Mhz. 0 dB

N type female connector.
Length 55 cm.
Longitud 55 cm.

  CVX425 TAGRA Antena colineal profesional Fibra Vidrio 400 450 Mhz. 0 dB

Kit Contents
Contenido del kit
    1 CVX 425 Antenna
  • 1 Antena CVX 425

  CVX425 TAGRA Antena colineal profesional Fibra Vidrio 400 450 Mhz. 0 dB

Features

Características

Type Type Type Collinear / Colinear
    Frequency Frequency Frequency 400 450 MHz
  • Power Power 100 W Power
  • Gain gain (dB) Gain 1 dB
  • Polarization Polarization Polarization Vertical
  • Impedance Impedance Impédance 50 Ohm
  • Potencia Power Puissance 100 W
  • Adjustment type Adjust type Adjustment type Adjusted / Adjusted
  • Ganancia Gain (dB) Gain 1 dB

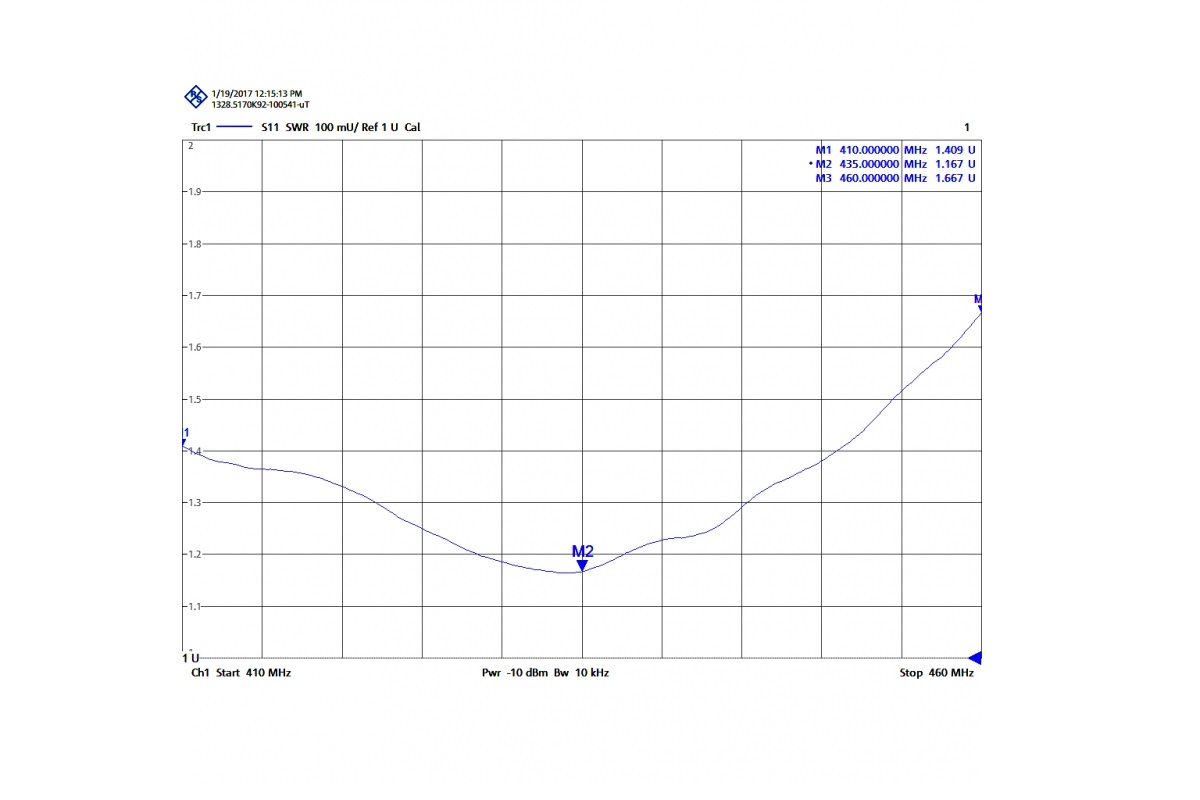

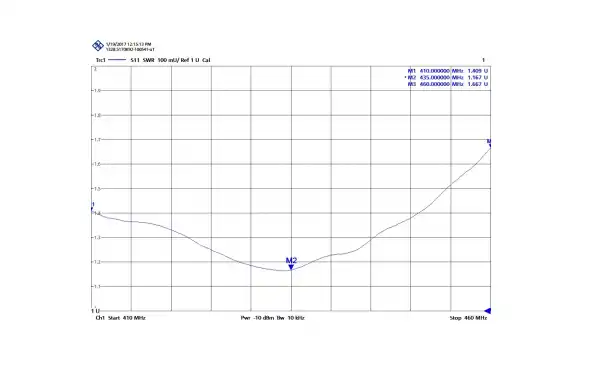

  • SWR SWR 1.5: 1
  • Polarización Polarization Polarisation Vertical
  • Material Glass fiber and stainless steel
  • Impedancia Impedance Impédance 50 Ohm
  • Color / Color / White Color
  • Mastil diameter 30 45 mm
  • Lenght length (mm) 550 mm
  • Type conect. Type of conn. Type of conn. Type N female
  • Gross weight Gross weight (gr.) 800 gr. (1pcs)
  • Dimensions Packages dimensions (cm) 55 x 1750 mm
  • Protects against downloads Shunt feed Prótegé contre déchanges
  • Longitud Lenght (mm) 550 mm
  • Tipo conect. Type of conn. Type de conn. Tipo N hembra
  • Peso bruto Gross weight (gr.) 800 gr. (1pcs)
  • Dimensiones Packages dimensions (cm) 55 x 1750 mm
  • Prote.contra descargas Shunt feed Prótegé contre déchanges
