Reference MONOSOLUTIONV200

MONOSOLUTIONV200. Support of wall stops screens. VESA 50/ 75/ 100/ 200x100/...

MONOSOLUTIONV200. Support of wall inclinable for televisions LCD/ TFT standard. Ideal stops screens TFT standard VESA 50/ 75/ 100/ 200x100/ 200x150/ 200x200. Maximo weigh 20 Kg. From 10 to 32

We're sorry, this item is no longer available.

Description MONOSOLUTIONV200

PRODUCT DESCRIPTION

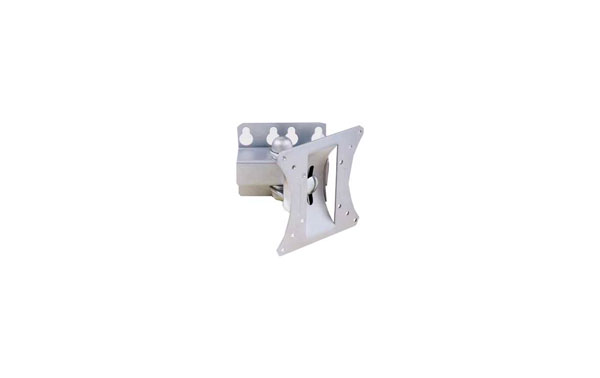

Monosolution support Standard wall support tiltable up, down and sides (left, right).

MONOSOLUTIONV200. Tilt wall mount for standard LCD / TFT TVs. Ideal for VESA 50/75/100 standard TFT screens. Maximum weight 20 Kg. From 10 to 32 ". Inches maximum (25-74cm)





Monosolution




CHARACTERISTICS


? Silver colour
? Tilting up, down, left and right.
? Maximum weight 20Kg
? Televisions from 10 "to 30" (25-74cm)

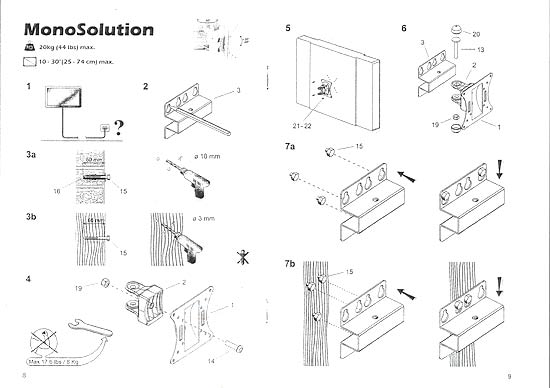

MOUNTING THE SUPPORT

Mount the stand

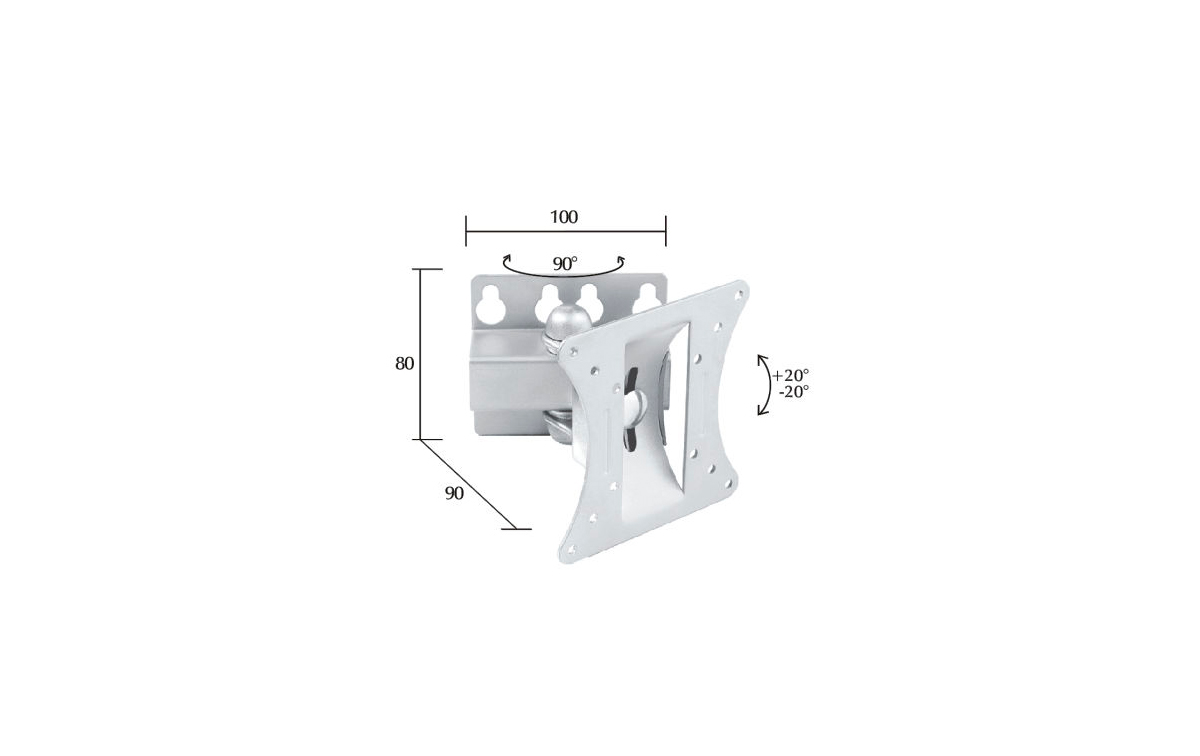

Support measurements:

Support measures

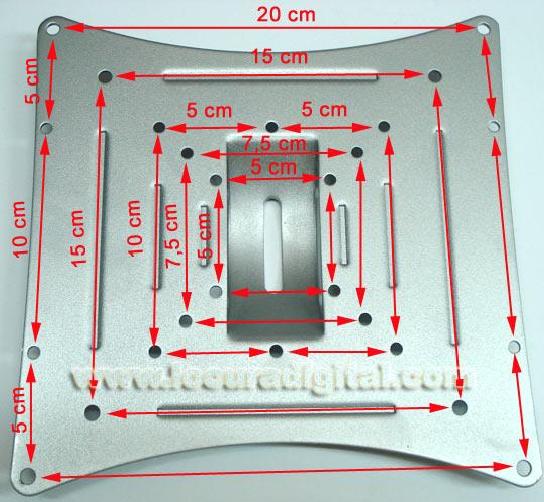

Measures from the center of the hole are approximate:

 MONOSOLUTIONV200

The kit is composed of the support and the necessary hardware to make the assembly:

Monosolution support elements

The support screws that are threaded on the screen are 4.
There
are 8 screws in the hardware bag, of which only 4 are used, the other 4 are of different sizes in case the screen requires it.

Screws
