KOMUNICA X-5000-PWR Triple band antenna 144 - 430 - 1200 Mhz.
The KOMUNICA X-5000-N is a high-efficiency antenna designed to operate in three frequency bands: VHF, UHF and SHF. With its rugged construction and advanced specifications, this antenna is ideal for applications requiring superior performance in the
Make the first reviewDescription KOMUNICA X5000PWR
X5000PWR
The KOMUNICA X-5000-N is a high efficiency antenna designed to operate in three frequency bands: VHF, UHF and SHF. With its rugged construction and advanced specifications, this antenna is ideal for applications requiring superior performance at the 144 MHz, 430 MHz and 1200 MHz frequencies.
The X-5000-N antenna is made of fiberglass, which gives it excellent durability and resistance to inclement weather. With a length of 1.9 meters, this antenna is designed to provide significant gain in each of its operating bands, thus improving the quality of signal transmission and reception. N female connector.
The KOMUNICA X-5000-N is a high-end tri-band antenna, designed to provide exceptional performance in VHF, UHF and SHF. Featuring rugged fiberglass construction, high gain on each band, and a low-loss N female connector, this antenna is ideal for advanced radio amateurs, communications professionals, and any application requiring a reliable, high-performance antenna. With its durable design and superior technical specifications, the X-5000-N ensures optimal signal quality and reliability in any environment.
You may be interested in the PL adapter see link click <<< here >>>

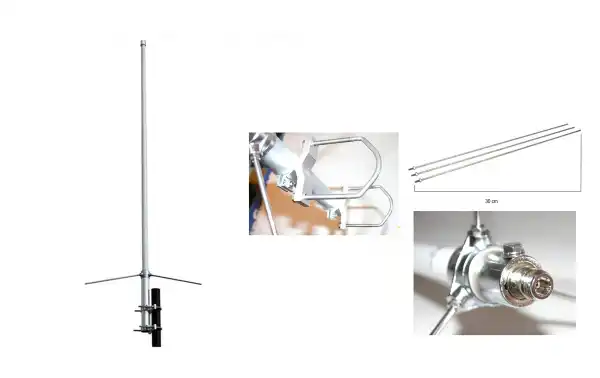

- 1 white fiber antenna 1 sections.

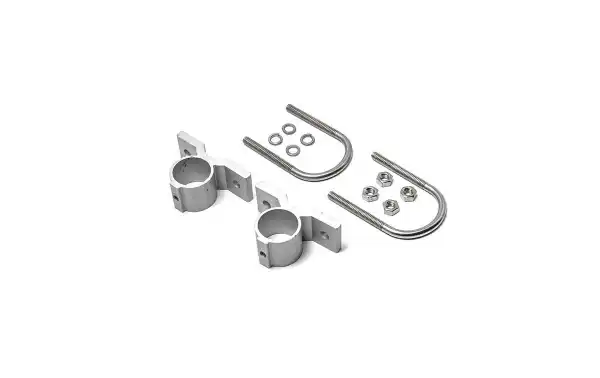

- 2 Flanges for mast from 30 mm to 50 mm
- 3 Radials length 30 cm.
You may be interested in the PL adapter see link click <<< here >>>
Characteristics
- Frequencies 144/430/1240 Mhz
- Bands 2m / 70 cm/ 23 cm
- Impedance: 50 Ohm.
- VHF gain: 6.5 dBi
- UHF gain: 9.0 dBi
- SHF gain: 11.7 dBi
- Type: 6/8? (144MHz) 5/8? 3parts(430MHz) 5/8? 7parts(1200MHz)
- Maximum power: 100 watts.
- Antenna material Fiberglass

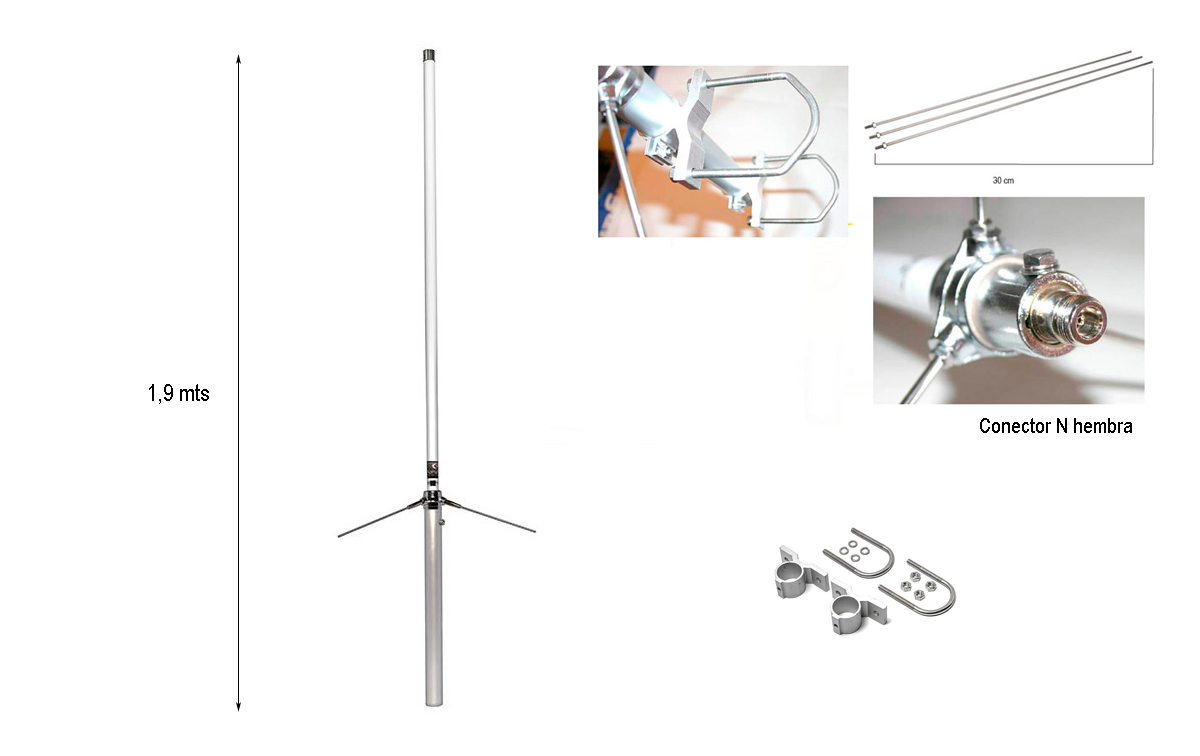

- Antenna length: 1.9 meters
- White fiber color
- ROE: 1.5 SWR
- Connector: N female
- Sections: 1
- Radial: 3 rods length 30 cm.
- Rod material: Stainless steel.
- Maximum wind resistance: 50 m/sec (112.5 MPH)
- Weight: 975g
