112,84€ VAT included
Reference V2000PL | DIAMOND
DIAMOND V2000PL Antenna ORIGINAL DIAMOND JAPON Triband 50-144-430 Mhz
The DIAMOND V3000PL vertical antenna for 50 MHz (2.15 dBi gain), 144 MHz (6.2 dBi gain) and 430 MHz (8.4 dBi gain) consists of a fiberglass rod construction, which It will be delivered preset and fully Resistant to i
5,0 NOTIFY
not available
Description DIAMOND V2000PL
DIAMOND V2000PL

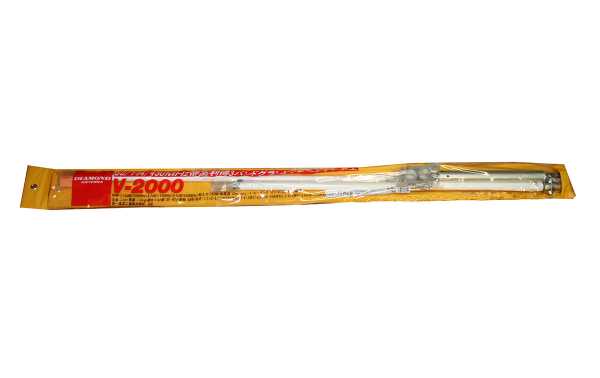

The DIAMOND V2000PL vertical antenna for 50 MHz (2.15 dBi gain), 144 MHz (6.2 dBi gain) and 430 MHz (8.4 dBi gain) consists of a fiberglass rod construction, which It will be delivered preset and totally Weather resistant. Mast mounting brackets are included. Equipped with a PL FEMALE connector. Maximum power: 150 watts. Length 2.5 meters in two sections. It has three Radials 2 for 2m / 70cm and 1 for 50 Mhz
DIAMOND V-3000PL Kit Contents
- 1 White fiber antenna.
- 2 Clamps for mast from 30 mm to 60 mm
- 2 Radials length 52 cm.
- 1 Radial length 90cm for 50Mhz
- 1 English assembly manual.
Characteristics
- Frequencies 50/144/430 Mhz
- Bands: 6m / 2m / 70cm
- Impedance: 50 Ohm.
- HF gain: 2.15 dBi
- VHF gain: 6.2 dBi
- UHF gain: 8.4 dBi
- Maximum power: 150 watts.
- Wavelength HF 1/2 2 x 5/8 (50 Mhz)
- Wavelength VHF 2 x 5/8 (144 Mhz)
- UHF wavelength 4 x 5/8 (430 Mhz)
- Antenna length: 2.5 meters in two sections
- Section: 2
- Omnidirectional radiation
- Weight: 1200 grams
- SWR: 1.5 SWR
- Connector: PL Female
- Mast 30-60 mm
- Radial: 2 rods length 52 cm. 1 rod of 90 cm for 50Mhz
- Maximum wind resistance: 50m / sec (180 km / h)
Equivalents DIAMOND V2000PL
Reviews DIAMOND V2000PL
Kepa BG 17-08-2023 | 11:41
Repito adquisición de dicha antena por el rendimiento que tiene con los equipos que se trabaja. Tiene un contratiempo con las instrucciones, como suceden con las Antenas telescópicas japonesas: Que las traen en japonés e inglés, excluyen otros idiomas para quienes no sabemos los idiomas que traen las Antenas japonesas.
