Comet GP-98N Tri-band base antenna VHF144-UHF430 / 1200 Mhz
GP-98N COMET VHF-UHF / 1200 Mhz BASE TRIBAND ANTENNA. 6.5 dBi VHF - 9 dBi UHF - 13.5 dBi SHF. Antenna valid to transmit and receive in two bands VHF 144 / UHF 430/1200 Mhz. It has three radials. Can be installed on mast diameter 30 mm to 62
Make the first review NOTIFY
not available
Description COMET GP98N
COMET GP-98N
GP-98N COMET BASE TRIBAND ANTENNA VHF-UHF / 1200 Mhz. 6.5 dBi VHF - 9 dBi UHF - 13.5 dBi SHF. Antenna valid to transmit and receive in two bands VHF 144 / UHF 430/1200 Mhz. It has three radials. It can be installed on mast diameter 30 mm to 62 mm. Connection type N female. White fiber antenna length 2.94 m. Two sections
Receive in RX:
100-170 Mhz
350-470 Mhz
840-1200 Mhz
COMET GP-98N Kit Contents
- 1 White fiber antenna.
- 2 Clamps for mast from 30 mm to 62 mm
- 3 Radials length 49 cm.
- 1 English assembly manual.
Features
- Frequencies of use: 144 - 430 - 1200 MHz.
- Impedance: 50 Ohm.
- VHF gain: 6.5 dBi
- UHF gain: 9.0 dBi
- UHF gain: 13.5 dBi
- Maximum power: 300 watts.
- Wavelength VHF 5/8 x2 (144 Mhz)
- Wavelength UHF 5/8 x5 (430 Mhz)
- Wavelength UHF 5/8 x 12 (1296 Mhz)
- Receive in RX: 100-170 Mhz / 350-470 Mhz / 840-1200 Mhz

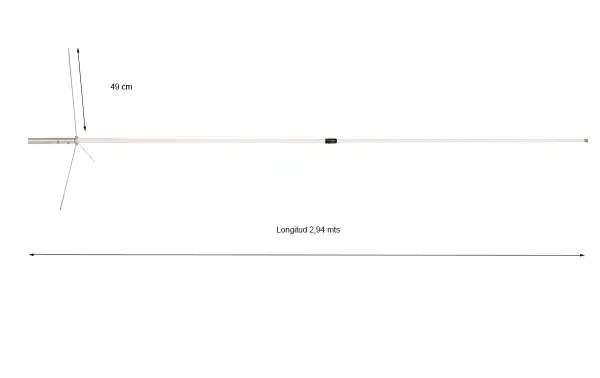

- Antenna length: 2.94 meters
- Weight: 1.6 Kg.
- Clamps for mast 30 mm to 62 mm
- SWR: 1.5 SWR
- Connector: N female
- Section: 2
- Radial: 3 rods length 49 cm.
- Fiber Tube Material.
- Maximum wind resistance: 60m / sec (125 MPH)
