Reference TV250 | BANTEN

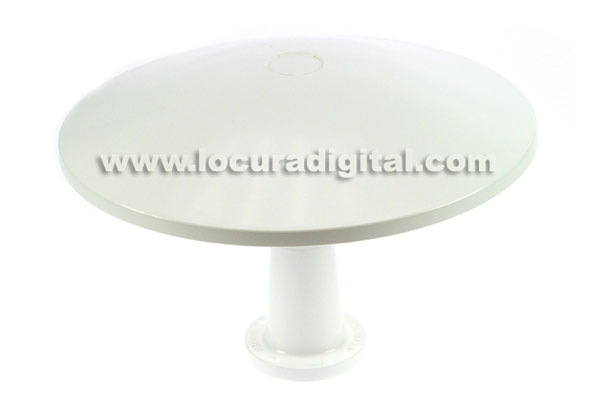

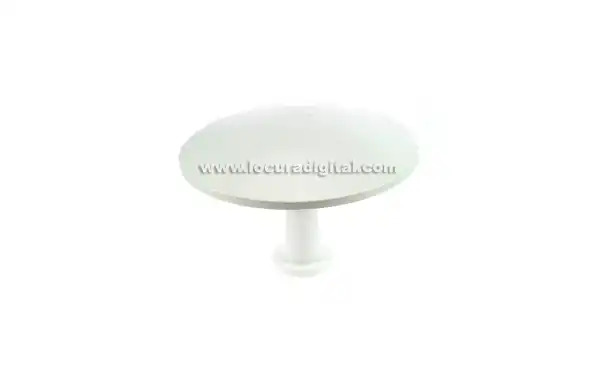

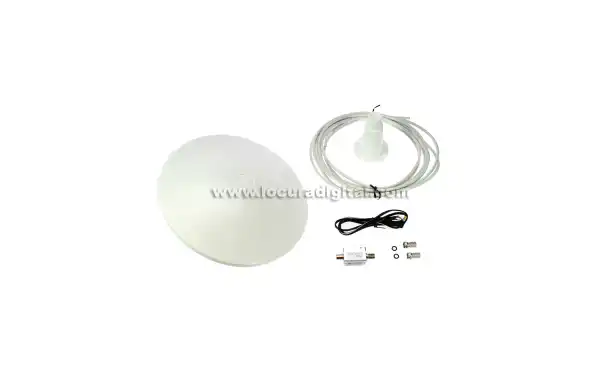

BANTAN TV250 TV antenna for analog TV and Digital Freeview, HIGH GAIN

Prepared small size antenna for receiving TV signals both analogue and digital Freeview. This antenna is high quality and is made totally resistant materials. Its diameter is 24 cm.

We're sorry, this item is no longer available.

Description BANTEN TV250

TV250 BANTEN TV Antenna, for Analog TV and DIGITAL TDT, HIGH GAIN

Antenna of reduced dimensions prepared for the reception of analog and digital TV signal TDT. This antenna is of high quality and is made of totally resistant materials. Its diameter is 24 cm.


	CHARACTERISTICS CARACTERÍSTICAS

Frequency range: 46 72 MHz
175 250 MHz
470 860 MHz
470 860 MHz
Impedance: 75 Ohm 75 Ohm
Gain: 18 dBi 18 dBi
Output Voltage: 13 dbm 13 dbm
Noise figure: 2.7 db 2,7 db

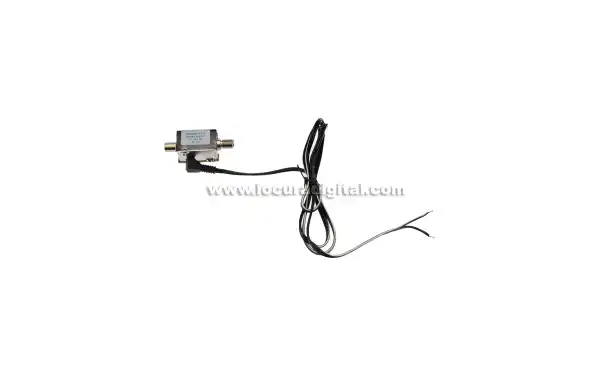

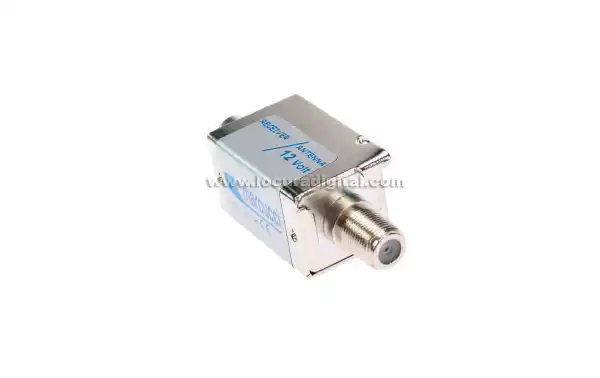

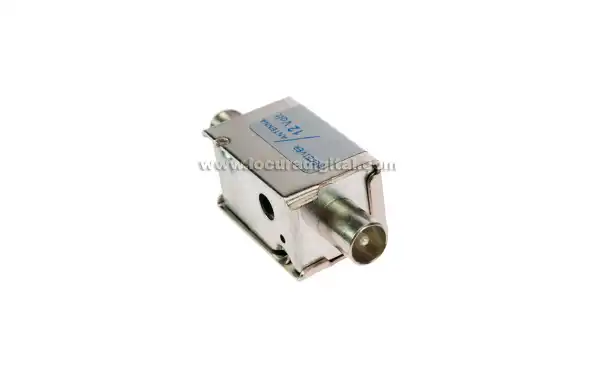

Antenna supply: 12V 50 mA 12V 50 mA
Connection: F Female F Female
Diameter: 24 cm 24 cm

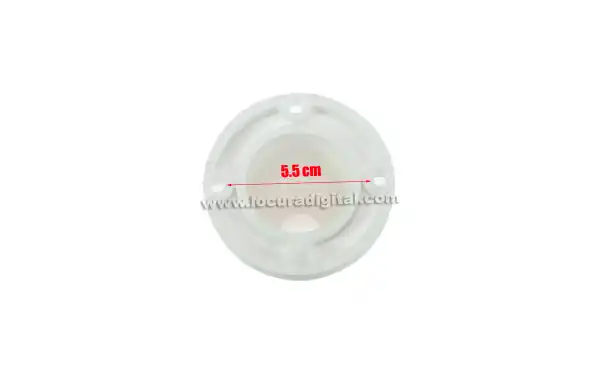

Weight: 400 gr Base Fitting:
in pipe Dia 26 mm Base Fitting: in pipe Dia 26 mm
