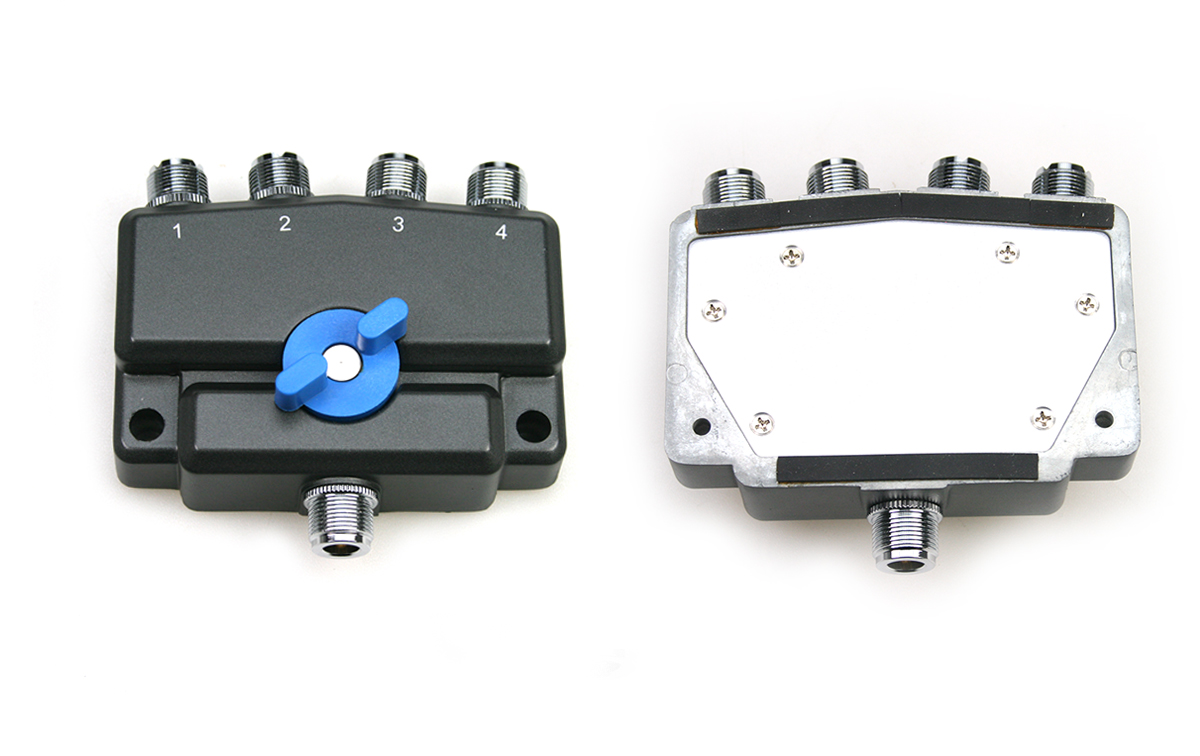

MIRC04COMBO 4-position switch: 2 PL connectors + 2 N connectors

MIRC04-Combo

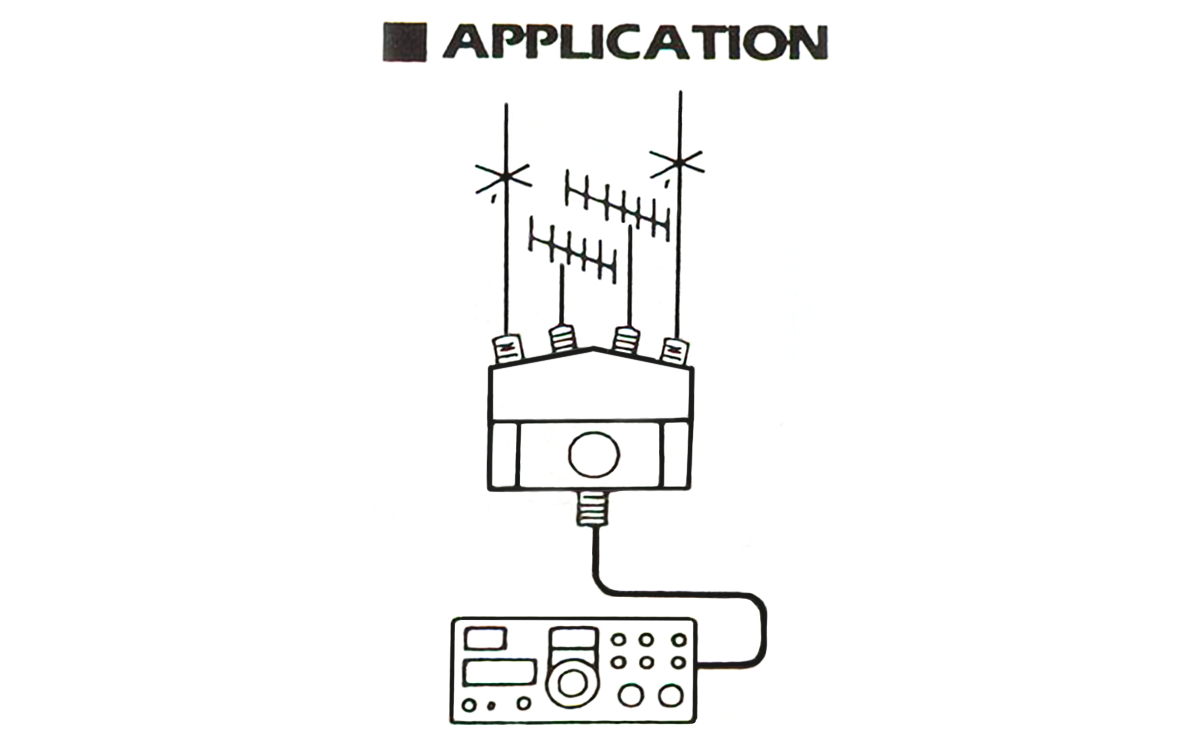

The MIRMIDON MIRC04 COMBO switch is a versatile device that combines four positions and features two female PL connectors and two female N connectors. This combination of connectors allows a variety of antennas to be connected to a single transmitter and switched between them as needed. With this switch, users can optimize the transmission signal on high frequency (HF), very high frequency (VHF), and ultra high frequency (UHF) radio equipment. By being able to select between different antennas, the transmission can be adjusted to specific environmental conditions, which can significantly improve transmitter performance. The MIRMIDON MIRC04 COMBO is a practical and versatile tool for radio amateurs and radio operators who want to maximize the efficiency of their communication equipment.

Ground-shunt switch:
When a position is not active, antennas or equipment connected to that position are automatically grounded (earthed). This has several advantages:

Protection against electrical discharges: By grounding the antenna, the radio system and antenna are protected against possible atmospheric discharges, such as lightning or static, reducing the risk of damage.
Noise Reduction: Grounding can help reduce background noise or unwanted interference to reception.
Greater safety for the equipment: If there are voltage spikes or interference, the current tends to discharge to ground instead of passing to the equipment, protecting the connected devices.

Characteristics

• Frequency 0- 1.5 Ghz N Connectors
• Frequency 0- 900 Mhz N connectors
• Maximum power 0-30 Mhz Power 1.5 KW
• Maximum power 30-200 Mhz Power 1 KW
• Maximum power 200-500 Mhz Power 500 W
• Maximum power 500-1 Ghz Mhz Power 250 W
• Maximum power 500-1 Ghz Mhz Power 150 W
• Impedance 50 Ohms
• Derived to mass
• Insertion loss less than 0.05 dB
• SWR 1.1
• 3 x N female connectors
• Connectors 2 x PL female
• Weight 924 gr.
