MIRMIDON MIRC02PL Switch 2 positions PL connectors

MIRC02PL

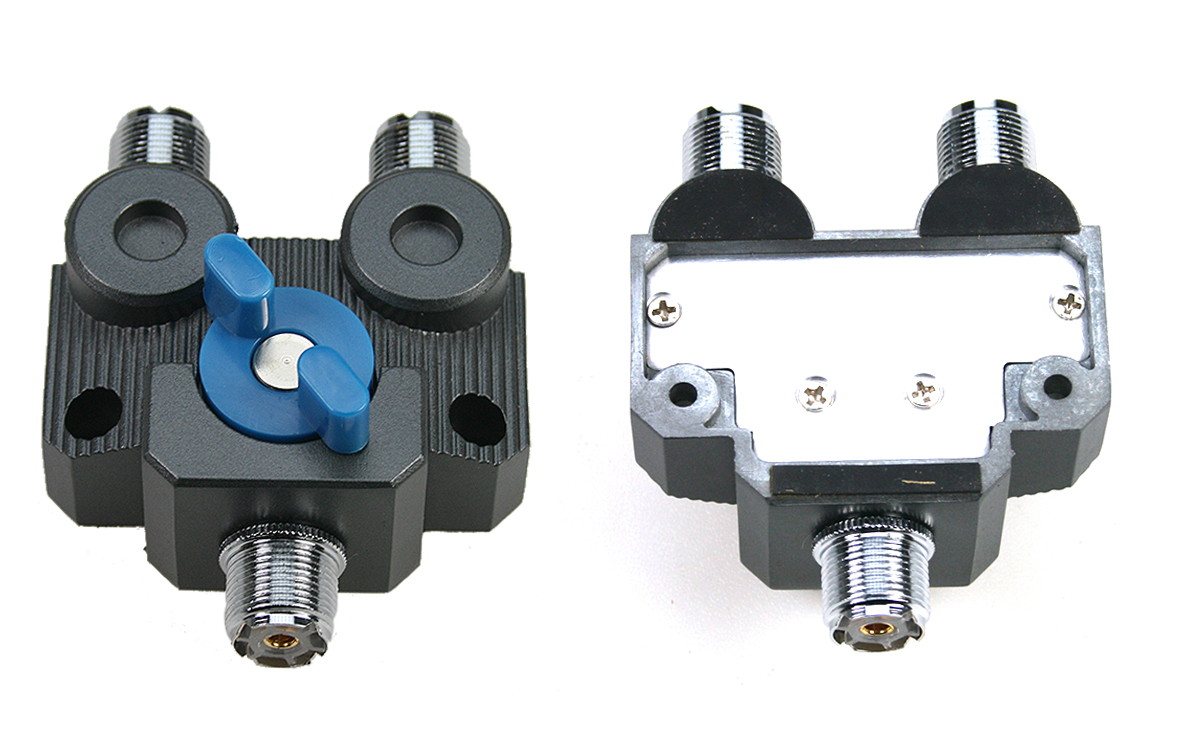

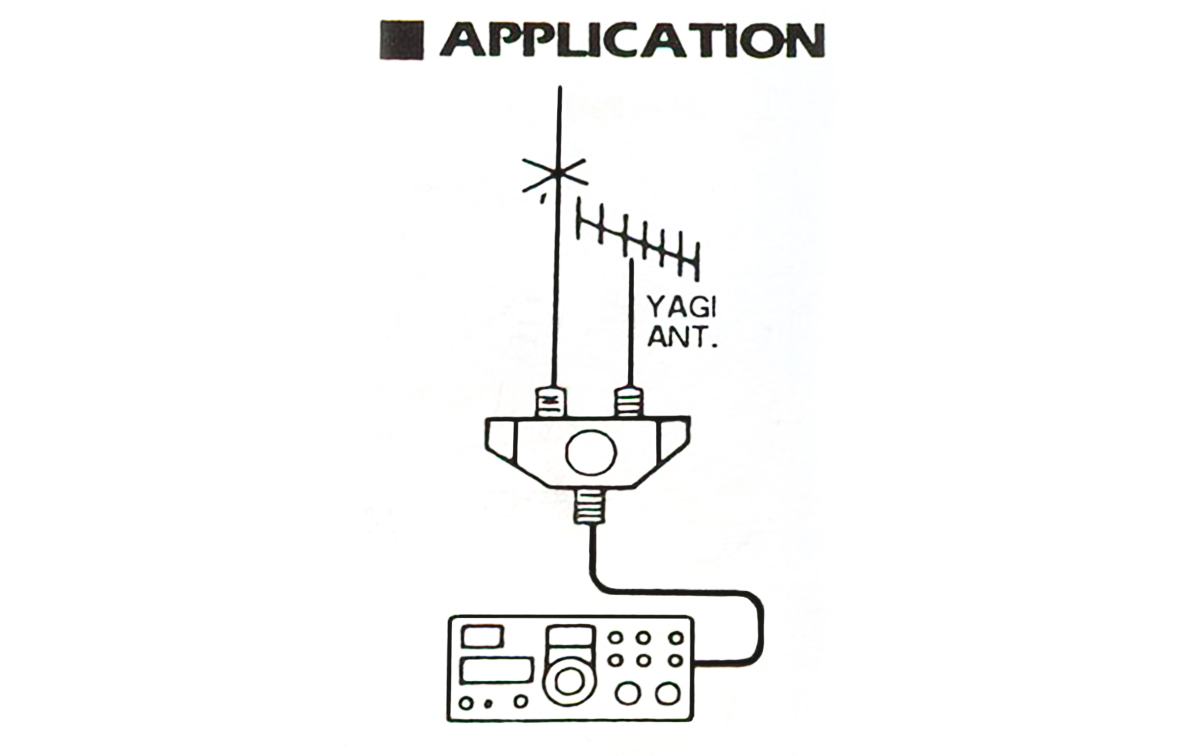

MIRMIDON MIRC02PL 2 Position Switch PL Connectors, The MIRC02PL is a high quality switch with female PL connectors, designed for connecting two antennas to a single transmitter. This device allows switching between the two antennas, which is useful for optimizing the transmission signal on high frequency (HF), very high frequency (VHF) and ultra high frequency (UHF) radio equipment. By being able to select between one or the other antenna, users have the ability to adjust the transmission according to specific environmental conditions, which can improve the performance of the transmitter. The MIRC02PL is a practical and versatile tool for radio amateurs and radio operators who wish to maximize the efficiency of their communication equipment.

Ground-shunt switch:
When a position is not active, antennas or equipment connected to that position are automatically grounded (earthed). This has several advantages:

Protection against electrical discharges: By grounding the antenna, the radio system and antenna are protected against possible atmospheric discharges, such as lightning or static, reducing the risk of damage.
Noise Reduction: Grounding can help reduce background noise or unwanted interference to reception.
Greater safety for the equipment: If there are voltage spikes or interference, the current tends to discharge to ground instead of passing to the equipment, protecting the connected devices.

Characteristics

• Frequency 0- 1 Ghz
• Maximum power 0-30 Mhz Power 2 KW
• Maximum power 30-200 Mhz Power 1 KW
• Maximum power 200-500 Mhz Power 500 W
• Maximum power 500-1 Ghz Mhz Power 250 W
• SWR up to 500 Mhz >=1.05
• SWR up to 500 Mhz/ 1 Ghz >=1.1
• Impedance 50 Ohms
• Derived to mass
• Insertion loss less than 0.05 dB
• SWR 1.1

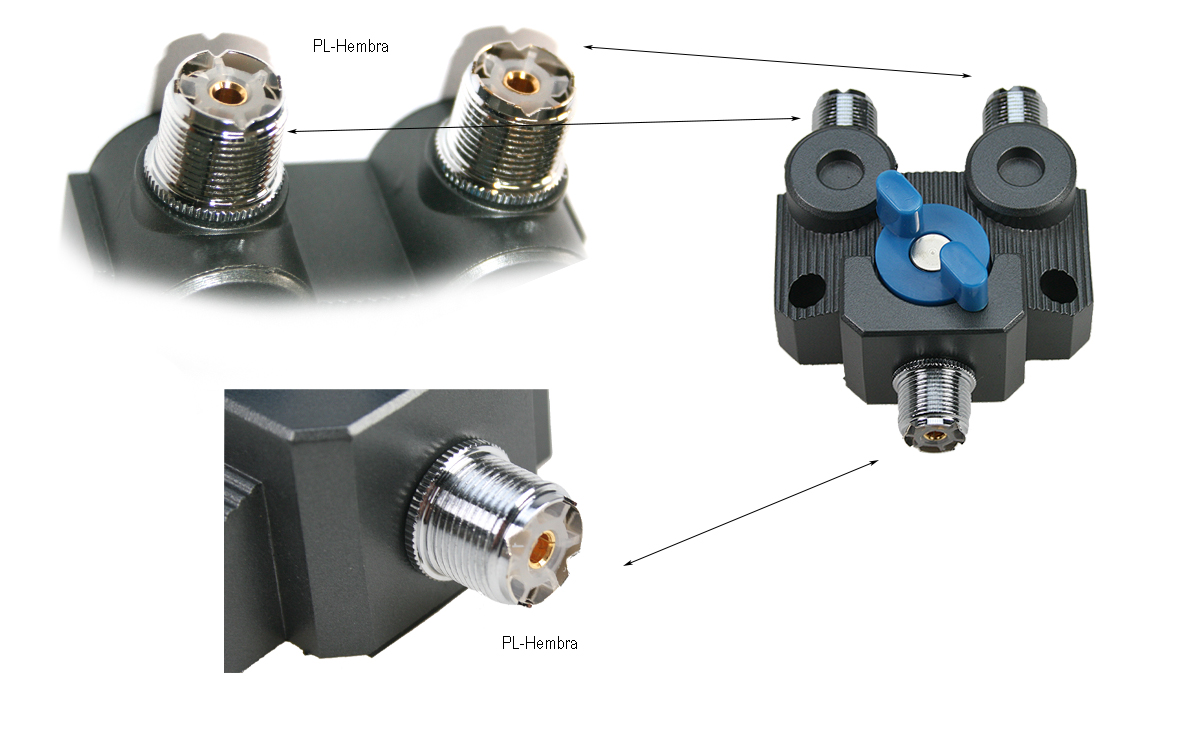

• 3 x PL female connectors
• Weight 425 gr.
