MFJ-4724 Antenna switch for 4 antennas and 4 transceivers
MFJ-4724 Antenna Switch for 4 antennas and 4 transceivers The MFJ-4724 will work well in almost any system that requires switching of coaxial lines, especially those that require good quality 50 ohm RF switches, pair
discontinued
Description MFJ MFJ4724
MFJ-4724
MFJ-4724 Antenna switch for 4 antennas and 4 transceivers
The MFJ-4724 will work well in almost any system that requires switching of coaxial lines, especially those that require good quality 50 ohm RF switches, so you can select one of four radios to one power line or one of four antennas to one. radio.
All unused inputs are grounded. You can connect a sense line to your transceiver so that when it is turned off all inputs are automatically grounded.
Kit contents
- 1 MFJ-4724 Switch
Characteristics
- Frequency covers 1 - 60 Mhz and 150 Mhz
- Maximum power 1500 watts
- 10 x PL female connectors
- Metal casing
- Voltage 12-15 v.
- Impedance 50 -75 ohms

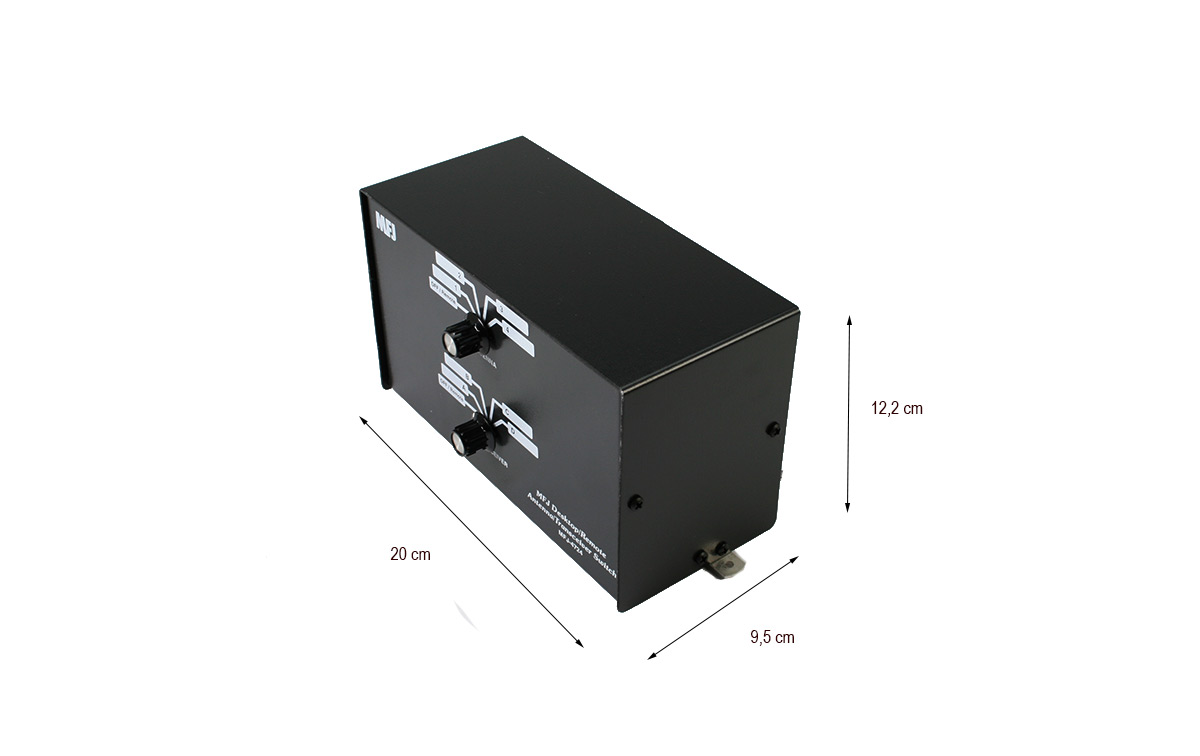

- Measures 12.2 x 9.5 x20 16.5 cm
- Weight 1300 gr.
