MFJ-869 Giant Wattmeter Stationary Meter 1.8- 54 Mhz Automatic
MFJ-869 Stationary meter and giant wattmeter from 1.8 to 54 Mhz. Automatic. Giant Automatic SWR / Wattmeter Meter. Fully Automatic Automatic MFJ-869 Power 20/200/2000 watts Watt scales with active TruePeak circuit and forward and reflected average po
Description MFJ MFJ869
MFJ-869

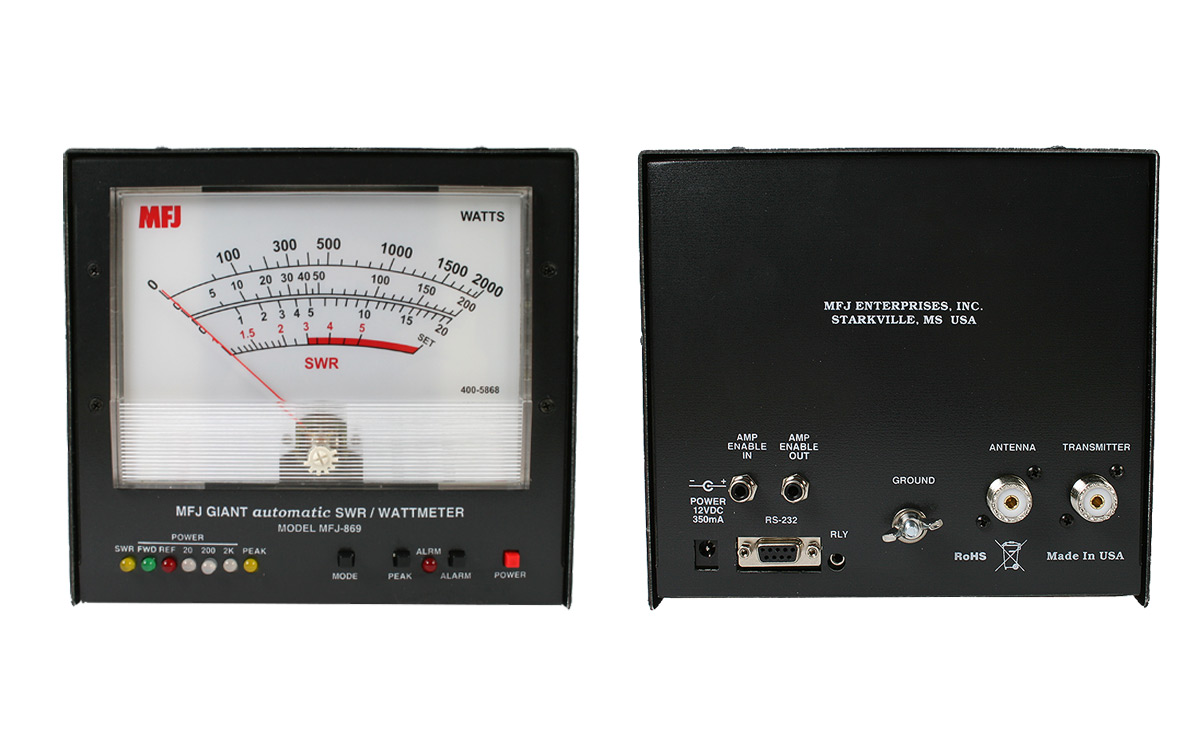

MFJ-869 Stationary meter and giant wattmeter from 1.8 to 54 Mhz. Automatic.
Giant Automatic SWR / Wattmeter Meter Fully Automatic Automatic
MFJ-869 Power 20/200/2000 watts
Watt scales with TruePeak active circuitry and forward and reflected mean power modes and fully automatic SWR readings.
It also has a Control Amplifier Bypass and Control Relay for high SWR.
MFJ-869 has firmware field upgrade.
Alarms to warn you of imminent danger to your electronic equipment.
Covers frequency ranges from 1.8-54 MHz. It is a completely new microprocessor design that will give you years of use. It has seven LED Indicators. Attractive all-metallic black
measures 191 x 95 x 171 cm

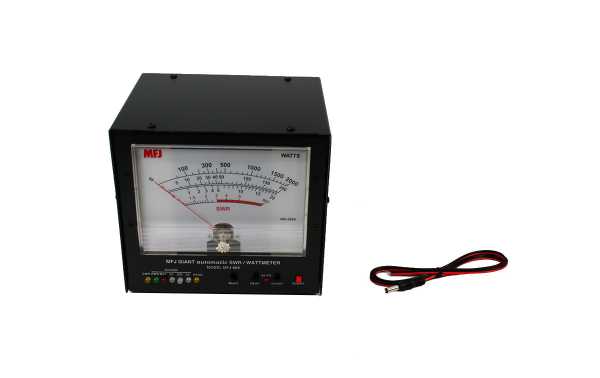

- 1 Meter MFJ-869
- 1 Power cable Voltage 12 v. 15v
Characteristics
- Frequency 1.8 - 54 Mhz
- Power scale 20/200/2000 watts
- Impedance 50 ohms
- Analog display
- Accuracy / - 5%
- 2 x PL female connectors
- RS-232 Dsub 9-pin connector
- Ground connector, wing nut
- Voltage 12 v. 15v
- 3.5 mm RLY connector
- 2 RCA AMP connectors
- Consumption 350 mA
- Dimensions 185 x 152 x 171 mm
- Weight 220gr.
