AOR8200D AOR portable scanner 530 Khz. to 3,000 Mhz. - NEW VERSION 2014...

The AR-8200D Series D is the latest portable scanner model developed by AOR, including the latest technological innovations of digital microprocessors in continuous coverage receivers. more Reference AOR8200D

aor
AOR 8200-D
AOR 8200-D AOR8200D AOR portable scanner 530 Khz. to 3,000 Mhz.
avalaible
961,95 incl. VAT
795,00€ w/o VAT
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

AR 8200D

The AR 8200D Series D is the latest portable scanner model developed by AOR, including the latest technological innovations of digital microprocessors in continuous coverage receivers. A Compensated Temperature Oscillator crystal (TCXO) is the heart of this AR 8200D that provides excellent stability with minimal internal spurious, this type of reference crystals is usually used only in high range receivers. It has a wide continuous coverage from 500 Khz. to 3000 Mhz. With excellent sensitivity and good handling of strong signals. The classic rubber antenna has been replaced by a telescopic with a rotating ball (which gives us much more play, in addition to including a ferrite antenna specially designed for AM reception.) The consumption of batteries has been greatly improved, making the equipment has a much greater autonomy.The air band has been correctly implemented with jumps of 8, 33 (and a third), the settings of jumps and displacements are fully programmable to access any strange band.Reception in all modes: WFM, NFM , SFM (Super Wide FM), WAM, AM, NAM, incorporates a 3 kHz filter on the sideband, for a real re-insertion of the carrier without frequency shift, it has a pre-programmed factory frequency plan, which makes to select the displacement, jump, mode etc. officially used in that band. (can be changed manually). You can add up to 12 characters per memorized channel for better recognition of the f Storages stored .. It has a small band analyzer, which can show us the activity of a band (adjustable from 10 Mhz to 100 Khz) showing us in a visual way the activity within a band, being able to move through it in a way fast and simple .. Memory banks are totally dynamic, this means that we can redefine their size to fit our needs. Its memory banks are dynamic, that is, we can decide the number of channels that each bank contains depending on the needs. There is an optional cable (with interface included) to be able to communicate with the PC (the software is free and downloaded through the web), being able to be controlled more easily from the computer, memory dump ... etc. El AR 8200D Serie D es el ultimo modelo de scanner portátiles desarrollado por AOR, incluye las ultimas innovaciones tecnológicas de los microprocesadores digitales en receptores de cobertura continua. Un cristal Oscilador de Temperatura Compensada (TCXO) es el corazón de este AR 8200D que le proporciona una excelente estabilidad con unas mínimas espúreas internas, este tipo de cristales de referencia es usualmente utilizado solamente en receptores de alto rango. Dispone de una amplia cobertura continua desde 500 Khz. a 3000 Mhz. Con una sensibilidad excelente y un buen manejo de señales fuertes. La antena clásica de goma ha sido sustituida por una telescópica con rotula de giro (que nos da mucho mayor juego, además de incluir una antena de ferrita especialmente diseñada para la recepción de AM. Se ha mejorado mucho el consumo de baterías, haciendo que el equipo tenga una autonomía bastante mayor. La banda aérea ha sido correctamente implementada con saltos de 8, 33 ( y un tercio), los ajustes de saltos y desplazamientos son totalmente programables para acceder a cualquier banda extraña. Recepción en todo modo: WFM, NFM, SFM ( FM Super ancha), WAM, AM, NAM. Incorpora un filtro de 3 Khz. en banda lateral. Para una reinsercion real de la portadora sin desplazamiento de frecuencia. Posee un plan de frecuencias pre programado de fabrica, lo que hace que se seleccione el desplazamiento,salto, modo etc oficialmente utilizado en esa banda. ( pudiendo ser cambiados de modo manual).. Se puede añadir hasta 12 caracteres po canal memorizado para un mejor reconocimiento de las frecuencias almacenadas.. Posee un pequeño analizador de banda, que nos puede mostrar la actividad de una banda ( ajustable desde 10 Mhz a 100 Khz) mostrandonos de una forma visual la actividad dentro de una banda, pudiendonos mover a traves de ella de una forma rapida y sencilla.. Los bancos de memorias son totalmente dinamicos, esto quiere decir que podemos redefinir su tamaño para ajustarlo a nuestras necesidades. Sus bancos de memorias son dinamicos, es decir que podemos decidir el numero de canales que contienen cada banco dependiendo de las necesidades. Existe un cable opcional ( con interface incluido) para poder comunicarse con el PC ( el software es gratuito y se descarga a traves de loa web), pudiendo ser controlado mas fácilmente desde el ordenador, volcado de memorias...etc.

The new AOR8200 D version incorporates voice recorder, undertone decoder, voice inverter, decoficator APC25 La nueva version AOR8200 D incorpora grabador de voz, Decoficador de subtonos, Inversor de voz, Decoficador APC25

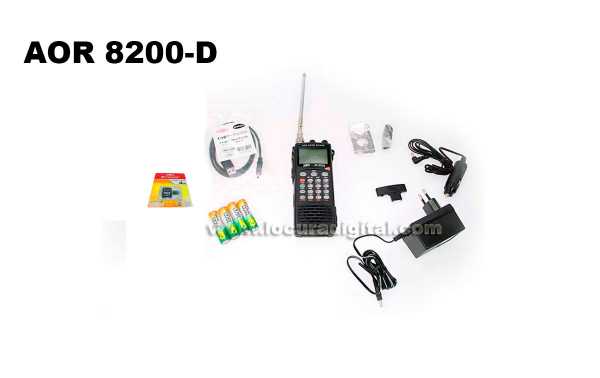

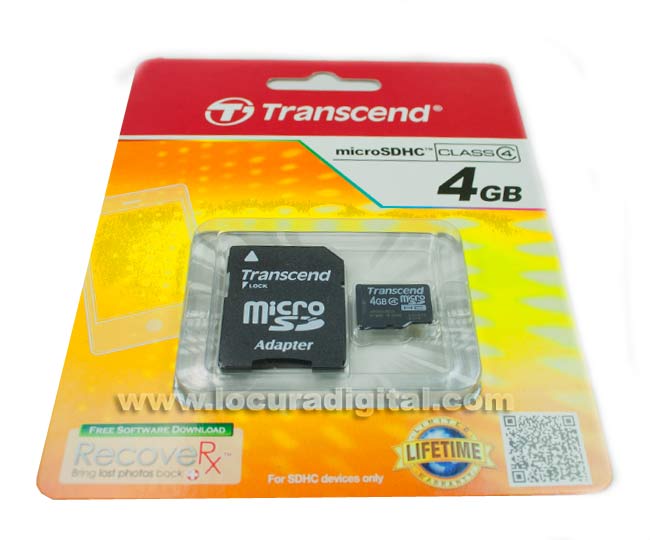

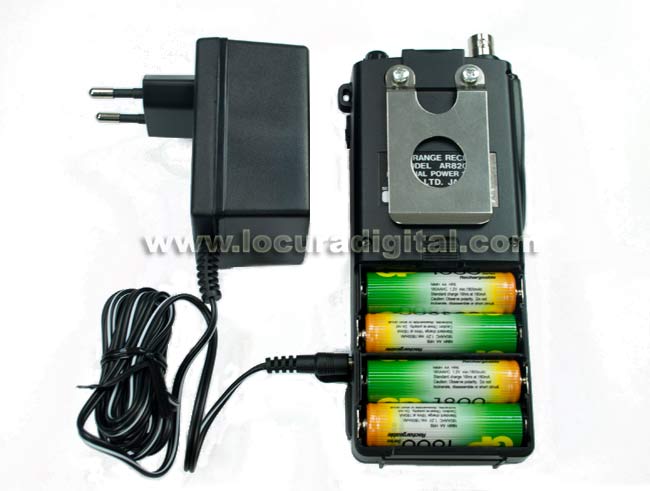

Includes: 1 antenna BNC connector 4 rechargeable NI MH AA batteries 1800 mAh 1 battery charger 1 Cigarette lighter adapter for charging batteries and powering 1 hand strap 1 belt clip 1 memory 4 gb 1 cable for USB computer Receiver AR8200 D
  1 antena conector BNC 4 baterias tipo AA de NI MH recargables 1800 mAh  1 cargador de baterias 1 Adaptador de mechero valido para cargar las baterias y alimentar 1 correa de mano 1 clip cinturon 1  memoria 4 gb 1 cable para ordenador  USB Receptor AR8200 D
1 manual in English    1 manual en Ingles










AOR 8200 D

ar 8200 mark 3


ar 8200 mark 3

ar 8200 mark 3



ar 8200 mark 3





  AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014

ar 8200 mark 3







  AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014

ar 8200 mark 3

AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014

AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014

AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014





AOR8200D AOR escaner portátil 530 Khz. a 3.000 Mhz. NUEVA VERSION 2014







CHARACTERISTICS
CARACTERÍSTICAS

CHARACTERISTICS CARACTERISTICASNumber of VF0: 2 independent
Visualization: Graphical display
Frequency range: 500 Khz to 3000 MHz (3 Ghz)
Memory channels: 1000 channels
Banks: 20 banks (totally reconfigurable)
Receiving modes: WFM , NFM, SFM, WAM, NAM, USB, LSB, CW
Sensitivity (range): 500 Khz 1 9 Mhz AM 3.5 uV (10 dB S / R)
_ 1,9 Mhz 30 Mhz AM: 2,5 uV (10 dB S / R)
_ 30 Mhz 470 Mhz NFM: 0.85 uV (12 dB S / R)
_ 470 Mhz 1040 Mhz NFM: 0.9 uV (12 dB S / R)
_ 1040 Mhz 2040 Mhz NFM: 9.0 uV (12 dB S / R)
_ 2040 Mhz 3000 Mhz NFM 25 uV (12 dB S / R)
SSB / NAM 3 Khz (6dB) 9 Khz (40 dB)
AM / SFM 9 Khz (6 dB) 20 Khz (40 db)
WAM / NFM 12 Khz (6 dB) 25 Khz (40 dB)
WFM 150 Khz (3 dB) 360 Khz (20 dB)
Consumption: 190 mA (nominal)
Power: 4 XAA high-capacity rechargeable batteries
Search banks: 40
Withdrawn channels: 50 channels per bank 50 search by VFO
Search / scan speed: Maximum 37.42 jumps per second
Audio output: 120 mW
Temperature range a: 5 ºC to 50 º C
Dimensions: 61mm X 143 mm X 39 mm
Weight: 340 gr (including batteries)
Peso: 340 gr (incluyendo baterias)

Accessories 1/2
