AOR
Reference ARD9900 | AOR

AOR ARD-9900 digital voice encryptor

The AOR ARD-9900 allows you to encrypt your voice in analog or normal modes in a simple way by a switch. No need to modify your computer, simply connect it to the microphone input.

Make the first review

1.391,50 VAT included 1.150,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

not available Will be received soon Delivery price from 6,50€

Description AOR ARD9900

AOR ARD-9900

Digital voice encryptor

The AOR ARD-9900 allows you to encrypt your voice in analog or normal modes in a simple way by a switch.

AOR ARD-9900

AOR ARD-9900

No need to modify your computer, simply connect it to the microphone input.

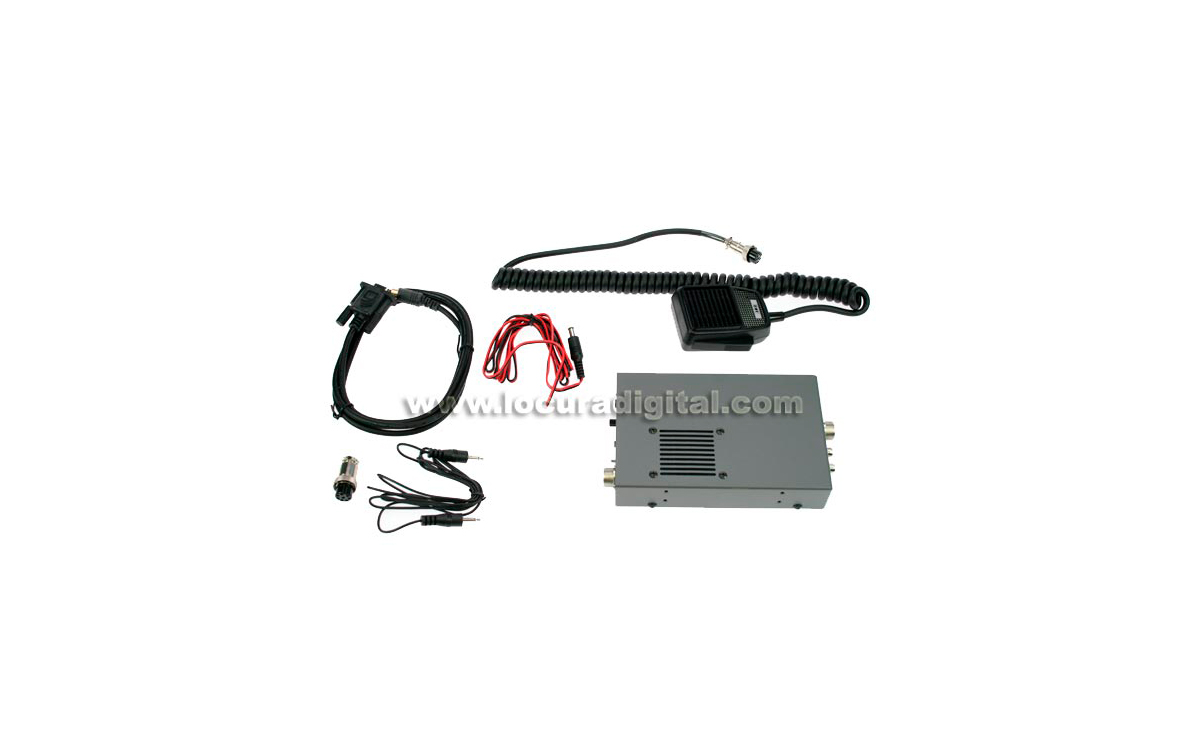

Includes

- Aor ARD-9900
- PC Interface Cable
- Speaker Cable
- Power cord
- Microphone jack
- Microphone

AOR ARD-9900


FEATURES

- Analogue voice communication using encryption for 2-way

- The ARD-9900 uses the same audio frequencies (300 Hz ~ 2500 Hz)
microphone audio to modulate the voice signal. This allows the use of an analogue
a radio transceiver and digital voice.

- Voice communications in the Side Band (BSS).

- The frequency clarifier function automatically adjusts frequency drift automatically in the SSB mode (approximately up to / - 125 Hz).

- Use a circuit ODFM (Multi Carrier Modulation) that is effective against multi-path or selective

- Receive automatic digital signals.

- Automatic signal detector recognizes the voice signal received as analog or digital
automatically switching the appropriate mode.

- Digital Slow Scan TV (SSTV).
Note: Requires optional ME-1 memory module.

- Incorporates video capture function (NTSC or PAL, depending on the country where the unit is purchased).
Note: Requires optional ME-1 memory module.

- Compress the signal in our original JPEG format adaptation.

- Send and receive images in digital mode.

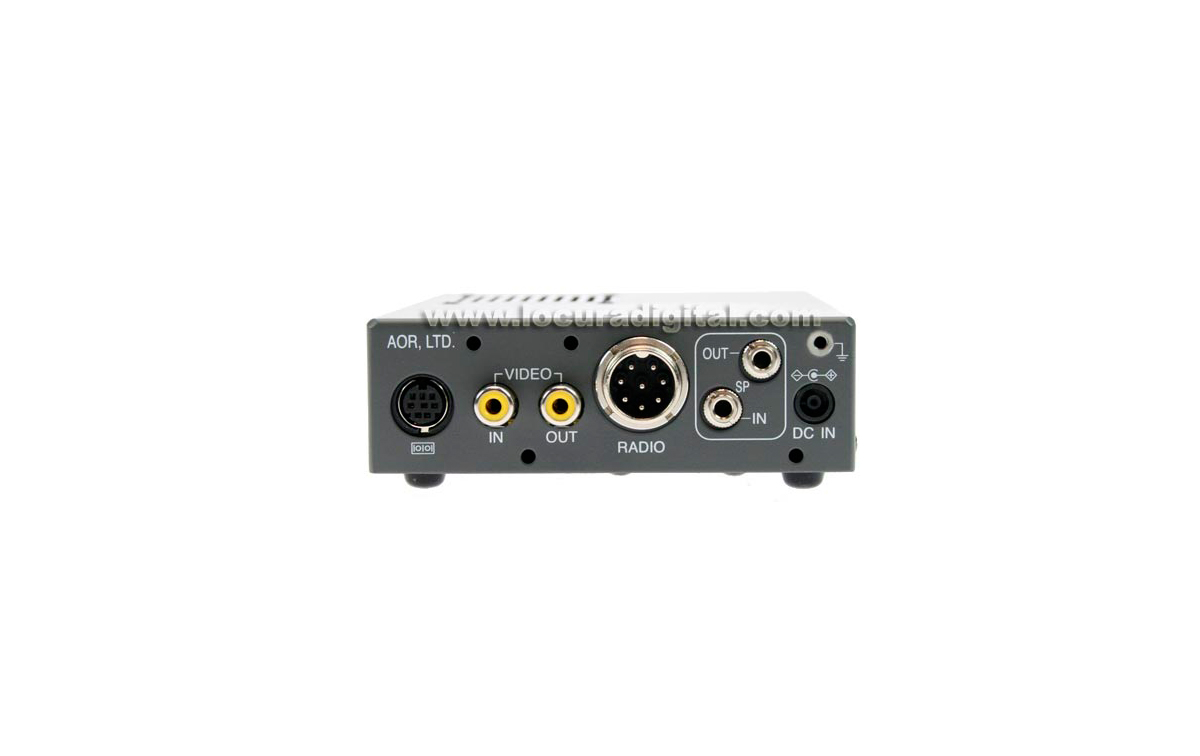

- Includes connector video output (NTSC or PAL, depending on the country where the unit is purchased). Allows the display of the image in an external monitor.

- Includes high quality Vocoder (AMBE).

- Using digital compression of high-quality voice, offering quality digital voice communications.

- Incorporates the FEC.

- Communications in the HF band.

- Communication of information available on HF (high frequency) bands at no extra cost.
(The speed can be limited by laws in certain jurisdictions.)

- Small and compact unit. Easy to handle.

- Simply connect the ARD9900 to the microphone and speaker output from the power of the transceiver.

- No modifications are required complicated or risky radio are needed.

- Uses a unique design high-performance DSP (Digital Signal Processor) engine.

- Battery operation possible use in the field.
