SIRTEL SRTB-3000PL Scanner disco antenna 75 Mhz to 3 Ghz. PL connector

SRTB-3000PL

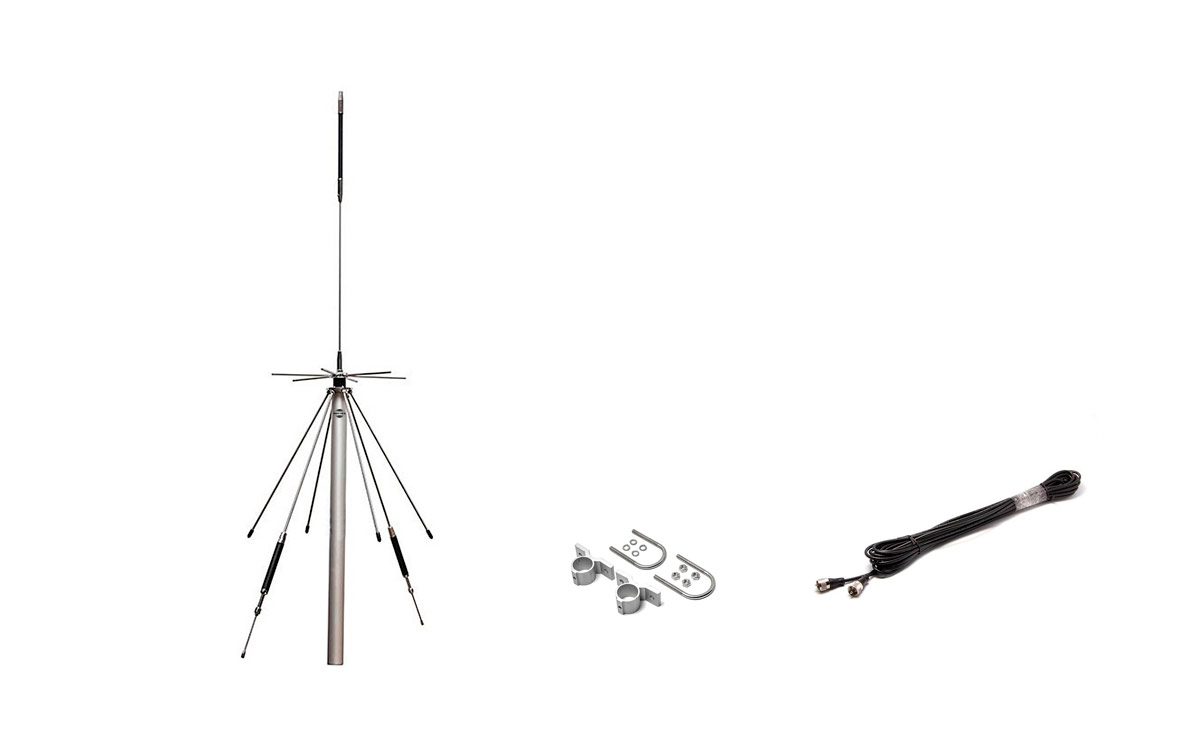

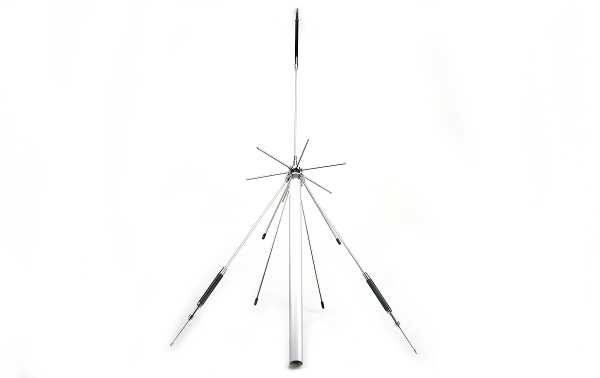

The SIRTEL SRTB-3000PL base antenna is a disk designed for the reception of signals in a wide range of frequencies, from 75 MHz to 3000 MHz. This antenna is especially useful for scanners and receivers that want to capture a variety of frequencies, such as those used in amateur radio, emergency communications, broadcasting and other similar applications.

The main features of this antenna are:

Frequency Range: 75 MHz to 3000 MHz, covering a wide range of frequencies used in various communications.

Antenna Connector: The antenna has a female PL connector (also known as SO-239 or UHF female connector), which means it can connect to coaxial cables with male PL (UHF male) connectors.

Cable Length: Supplied with a 10 meter long coaxial cable. The cable is RG-58 type and has male PL connectors on both ends. RG-58 is a type of coaxial cable commonly used in radio frequency applications.

Antenna Type: This antenna is a discone, which is a type of broadband antenna that provides a relatively uniform response over a wide range of frequencies.

The Sirtel SRTB-3000PL base antenna is a convenient option for those looking for a broadband antenna for the reception of signals in the frequency range of 75 MHz to 3000 MHz. Its discono design and 10 meter coaxial cable with PL connectors female and male make it suitable for scanning and receiving applications on a variety of bands and frequencies.

Characteristics

• Reception frequency 75 Mhz- 3 Ghz
• Transmission frequency 144/ 430 / 1200 MHz
• Maximum power 50 watts

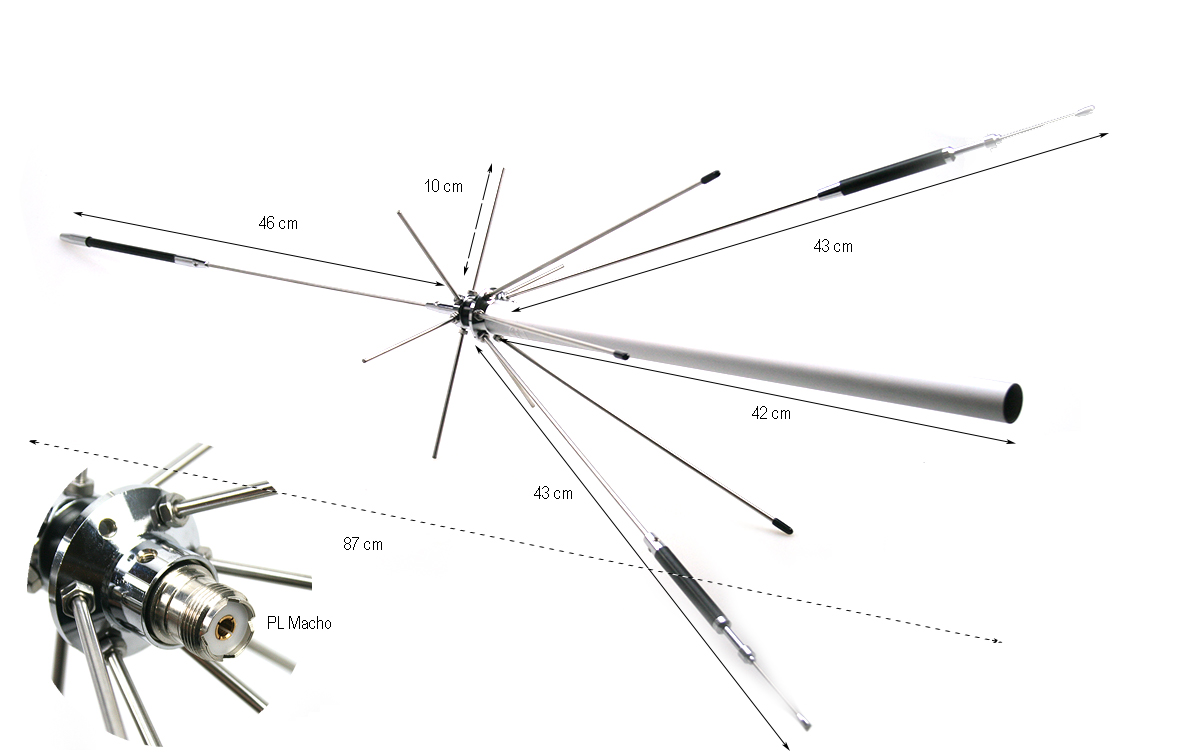

• Total length 87cm
• 6 x short rods 10 cm
• Vertical radiant 46 cm
• 2 x Radiants 43 cm
• Impedance 50 ohms
• Female PL connector
• Weight 690 gr.
