LEMM AT93 V8 Scanner antenna RX: 25 to 1,300 Mhz.TX:144-440-900-1290 Mhz

LEMM AT93

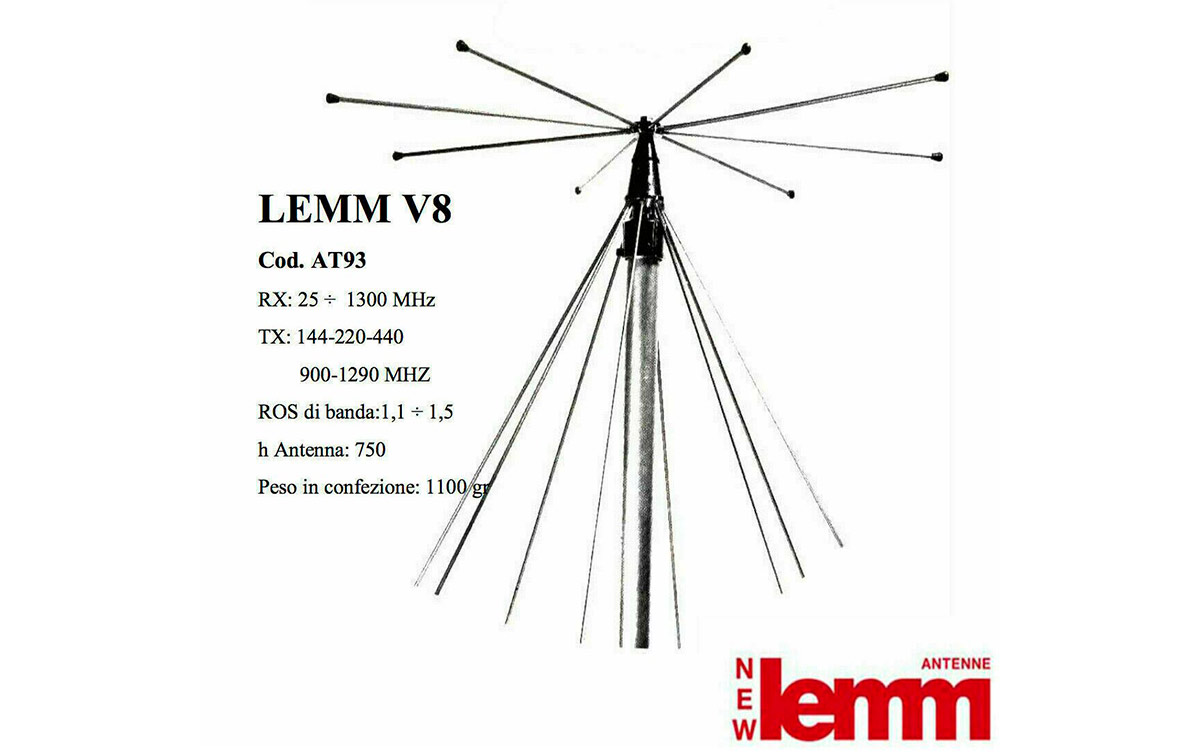

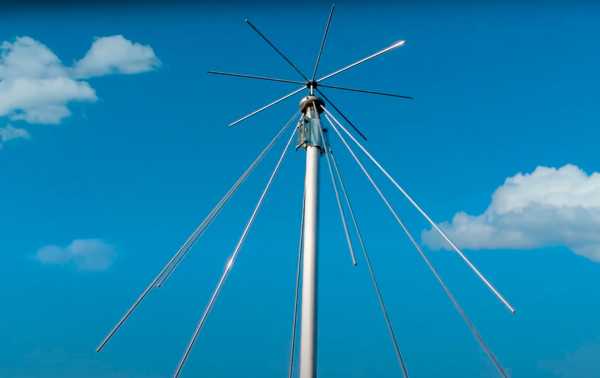

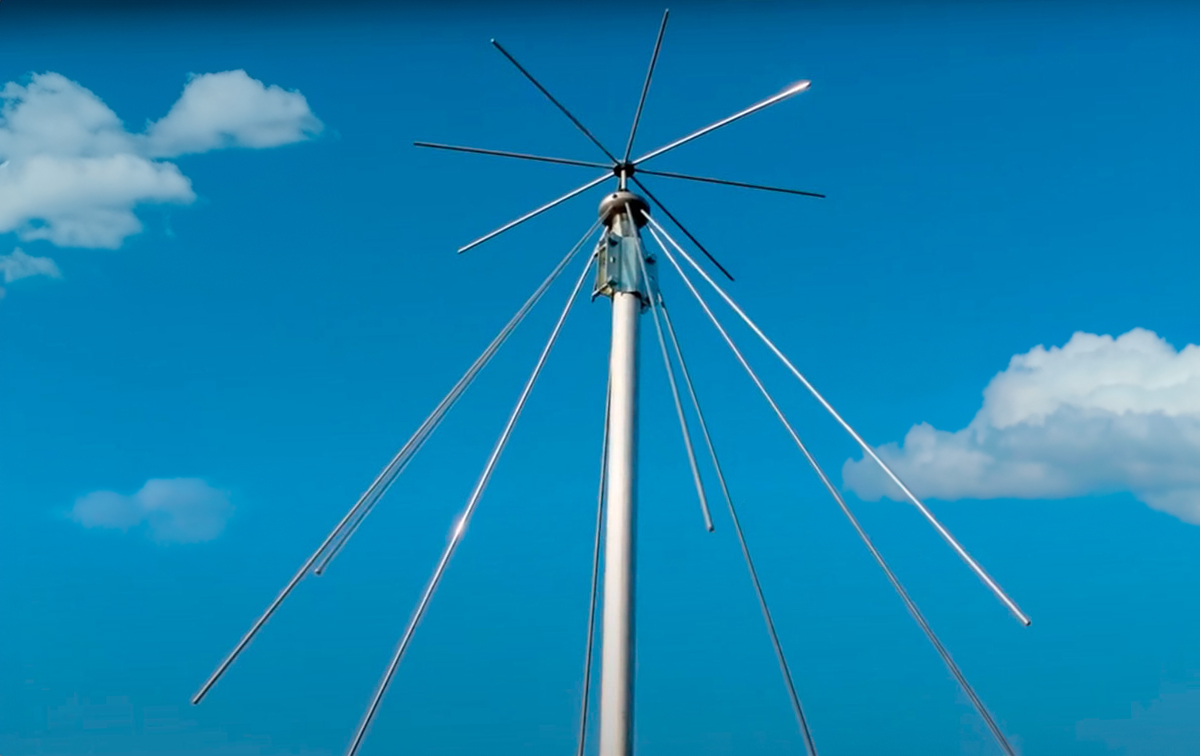

The Lemm V8 AT-93 antenna is a specialized dish for signal reception, designed to cover a wide range of frequencies from 25 MHz to 1300 MHz. The antenna has a length of 75 centimeters and is made of aluminum material. In addition, it has a female PL connector.

It is important to note that this antenna is designed primarily for the reception of signals in a wide range of frequencies (25 MHz to 1300 MHz). However, the information provided states that the antenna is also valid for transmission in certain specific frequency ranges:

TX: 2 meters (144 MHz)
TX: 70 centimeters (430 MHz)
TX: 33 centimeters (900 MHz)
TX: 23 centimeters (1,200 MHz)

It is indicated that it can transmit in these frequency ranges up to a maximum of 200 watts of power. This transmission capacity makes the antenna suitable for use in the VHF (144 MHz), UHF (430 MHz), 900 MHz and 1,200 MHz bands.

The Lemm V8 AT-93 antenna is primarily a receive antenna designed for a very wide range of frequencies, but is also capable of transmitting in several specific ranges within the VHF, UHF and higher frequencies, as long as the limitations of power and is used at the mentioned frequencies.

• 1 LEMM-AT93 Antenna

Characteristics

• Disc antenna type
• Frequency (RX) reception 25 to 1300 MHz
• Transmission frequency (TX) - 144 Mhz- 430 Mhz - 900 Mhz - 1200 Mhz
• Maximum power 50 Mhz 20 watts
• Maximum power 144/430/Mhz 100 watts
• Maximum power 900/1200 Mhz 25 watts
• Antenna length 75 cm.
• Material Aluminum
• Female PL Antenna Connector
• Mast diameter from 25 to 50 mm
• Weight 1 kg.
