AOR DA-1500 Disk-type base antenna for scanners from 70 to 1,500 Mhz.
The AOR DA-1500 base antenna is a discone designed for the reception of signals in a wide range of frequencies, from 70 MHz to 1500 MHz. This antenna is especially useful for scanners and receivers that want to capture a variety of frequencies, such
Make the first review166,98€ VAT included 138,00€ excl. VAT
Description AOR DA1500
AOR DA-1500
The AOR DA-1500 base antenna is a discone designed for the reception of signals in a wide range of frequencies, from 70 MHz to 1500 MHz. This antenna is especially useful for scanners and receivers that want to capture a variety of frequencies, such as those used in amateur radio, emergency communications, broadcasting and other similar applications.
The main features of this antenna are:
Frequency Range: 70 MHz to 1500 MHz, covering a wide range of frequencies used in various communications.
Antenna Connector: The antenna has a female PL connector (also known as SO-239 or UHF female connector), which means it can connect to coaxial cables with male PL (UHF male) connectors.
Cable Length: Supplied with a 15 meter long coaxial cable. The cable is RG-58 type and has PL male connectors on one end and BNC male connectors on the other end. RG-58 is a type of coaxial cable commonly used in radio frequency applications.
Antenna Type: This antenna is a discone, which is a type of broadband antenna that provides a relatively uniform response over a wide range of frequencies.

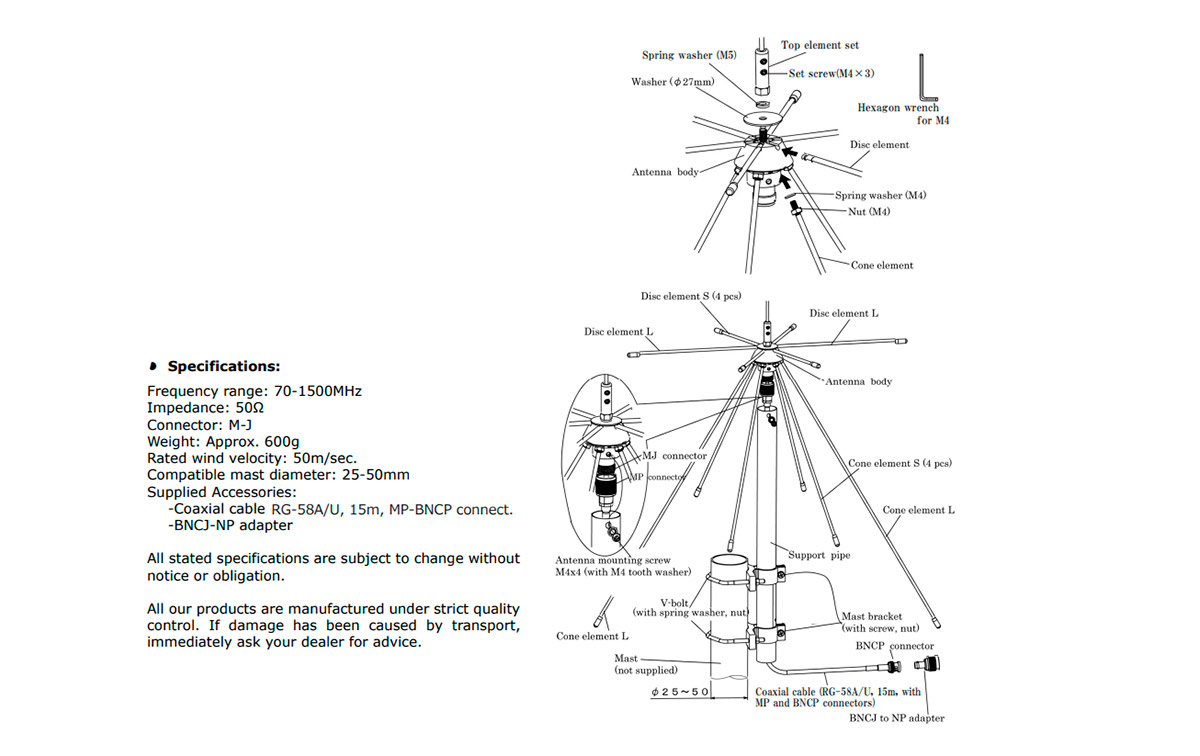

- 1 Ante discono DA1500
- Flange type mast support
- 15 meters RG-58 Cable x 1 PL male and 1 BNC male

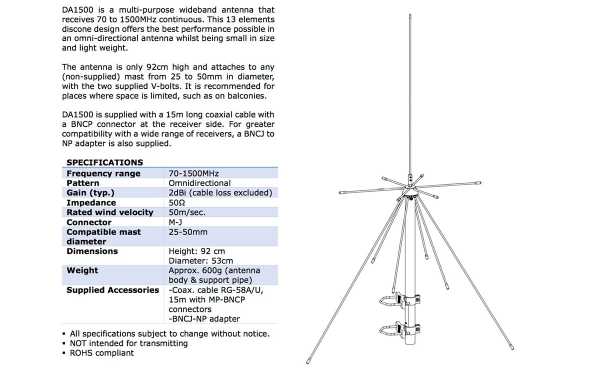

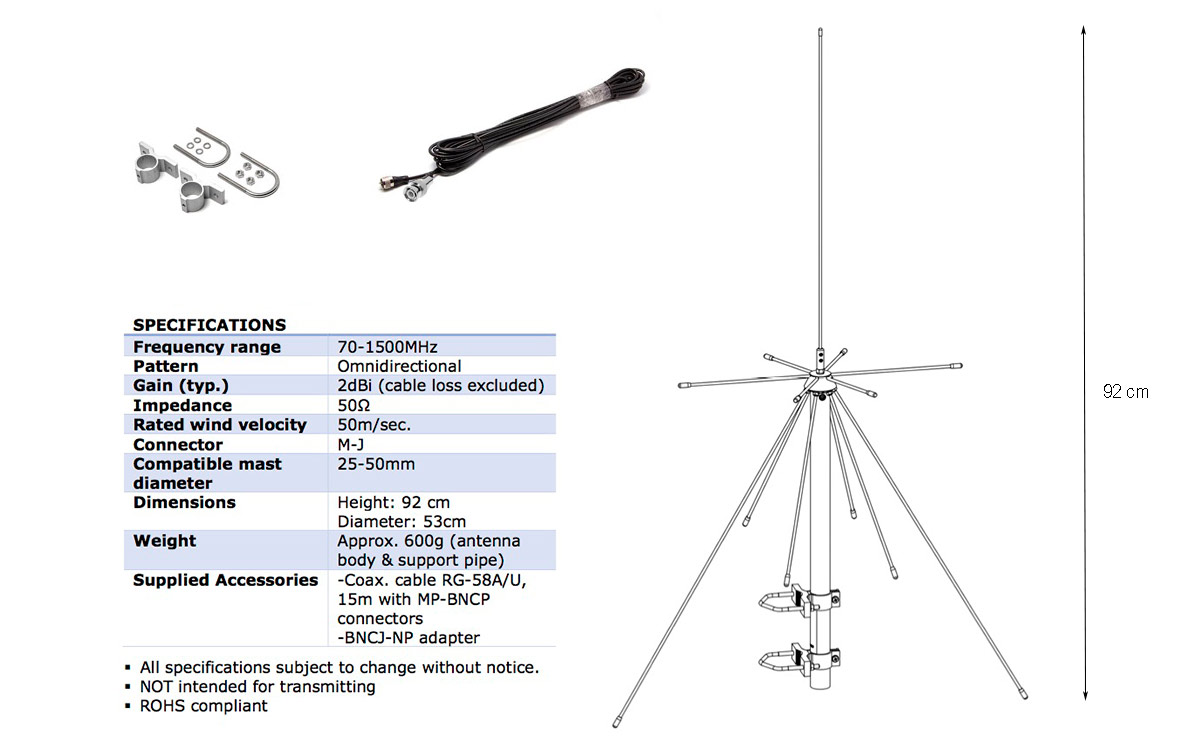

Characteristics
- Reception frequency 70 Mhz- 1.5 Ghz
- Length 15 meters RG-58 cable
- Only valid for reception
- Length 92cm
- Impedance 50 ohms
- Female PL connector
- Mast diameter 25 - 50 mm
- Weight 600 gr.
