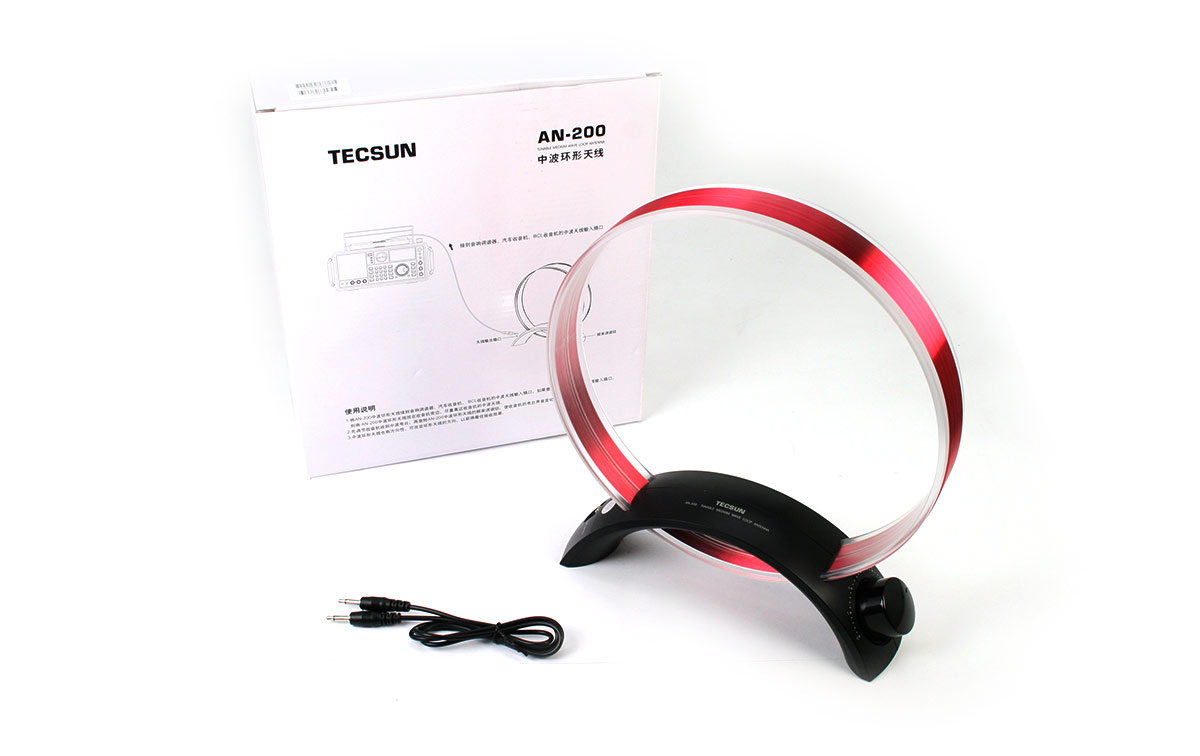

AN-200 TECSUN Loop Antenna. AN-200 loop diameter: diameter 230 mm

TECSUN AN-200

AN-200 TECSUN Loop Antenna. AN-200 loop diameter: 9 inches / 230 mm
The AN-200 tunable medium wave loop antenna is designed to receive AM (medium wave) broadcasts. This antenna covers the frequency of the medium wave broadcasting band. It works well to improve signal reception in places where there is EM1 noise or strong shielding conditions.
Function:

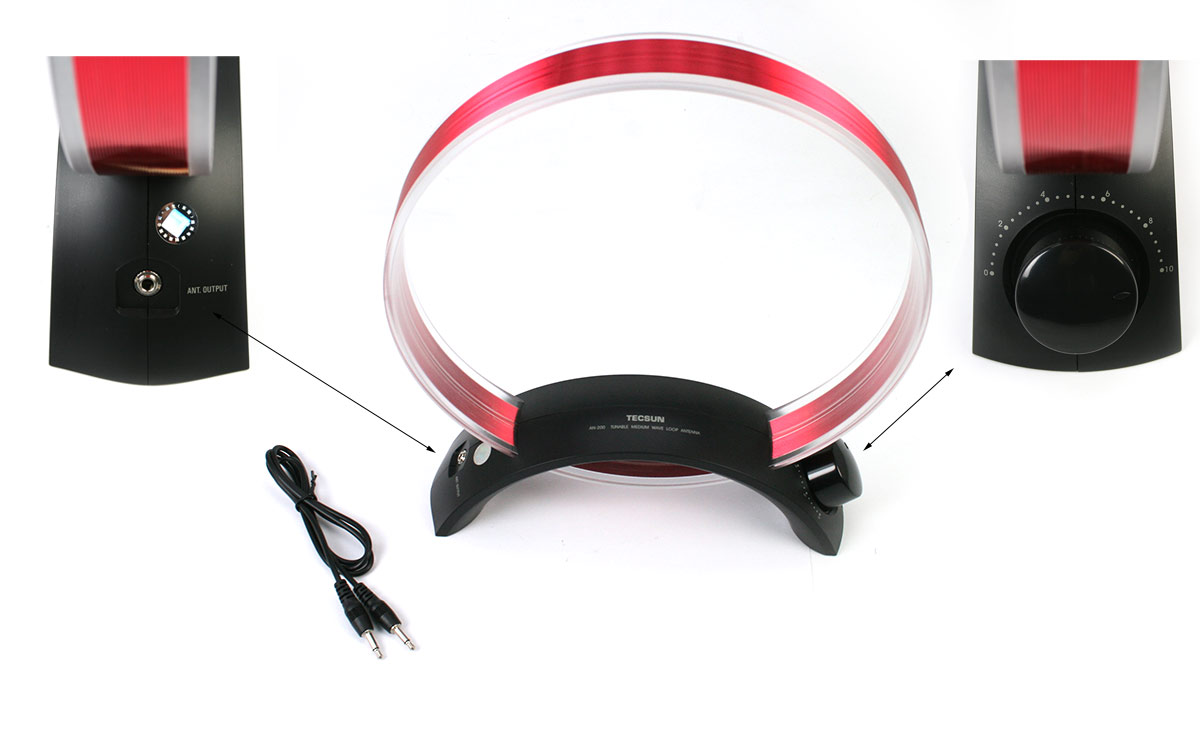

1. Connect the AN-200 medium wave ring antenna to the audio modulator, car radio or radio medium wave line-in jack. If your radio does not have a medium wave line-in plug, the ring antenna can be placed near the radio and near the radio's built-in MW antenna.
2. Set the radio to the medium wave band. Then turn the tunable knob on the AN-200 medium wave ring antenna to receive the best frequency signal until the sound of the broadcast channel is clear and stable.
3. The AN-200 medium wave ring antenna can perform its best function by moving it in the right direction

Characteristic

• Frequency Range 500 1730 Khz
• AM format
• Diameter 23cm
• Cable length 1 meter
• Connectors 2 pins 3.5 mm
• LOOP antenna type
• Copper wire
• Weight 355 grams.
