PWR-4CROSS Komunica: Multiband Mobile Antenna 29/50/144/430 Mhz

PWR-4CROSS

The Komunica PWR-4CROSS is a 4-band mobile antenna designed to operate on the 10 meter, 6 meter, 2 meter and 70 centimeter bands, covering popular frequencies for amateur radio. Here is a description with its key features:

PWR-4CROSS Features:
Bands: Supports 10m, 6m, 2m and 70cm, covering HF, VHF and UHF.
Mobile use: Designed for vehicles, ideal for use on the move.
Compatibility: Compatible with multi-band transceivers.

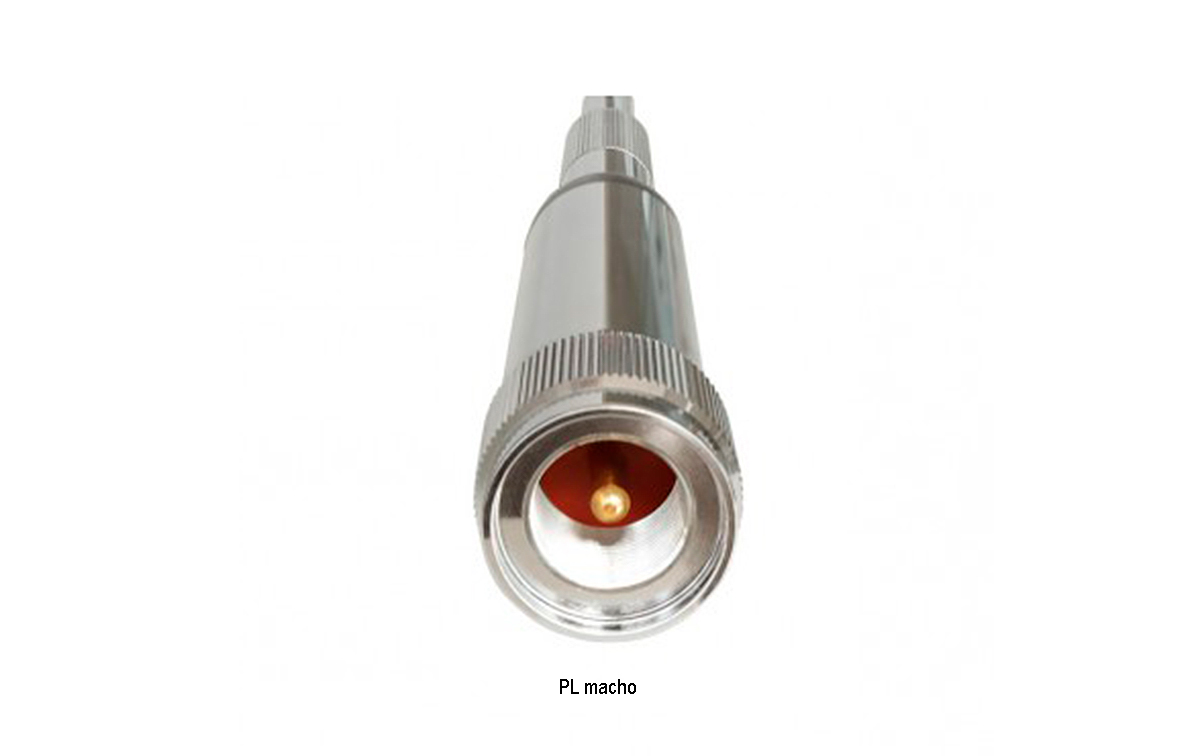

Connector: Uses a standard PL-259 (UHF) connector, common on radios.
Material: Rugged construction to withstand outdoor conditions.
Frequency Range:
- 10 meters (28 MHz)
- 6 meters (50 MHz)
- 2 meters (144 MHz)
- 70 cm (430 MHz)
Adjustable length: Allows you to optimize performance on each band.
Easy mounting: Can be quickly installed on vehicle mounts.
Gain: Provides good gain on each band for long distance contacts.
Portability: Lightweight and easy to install and remove when not in use.
This antenna is an excellent choice for radio amateurs looking for a versatile, multi-band mobile antenna for use in different frequencies and modes of operation.

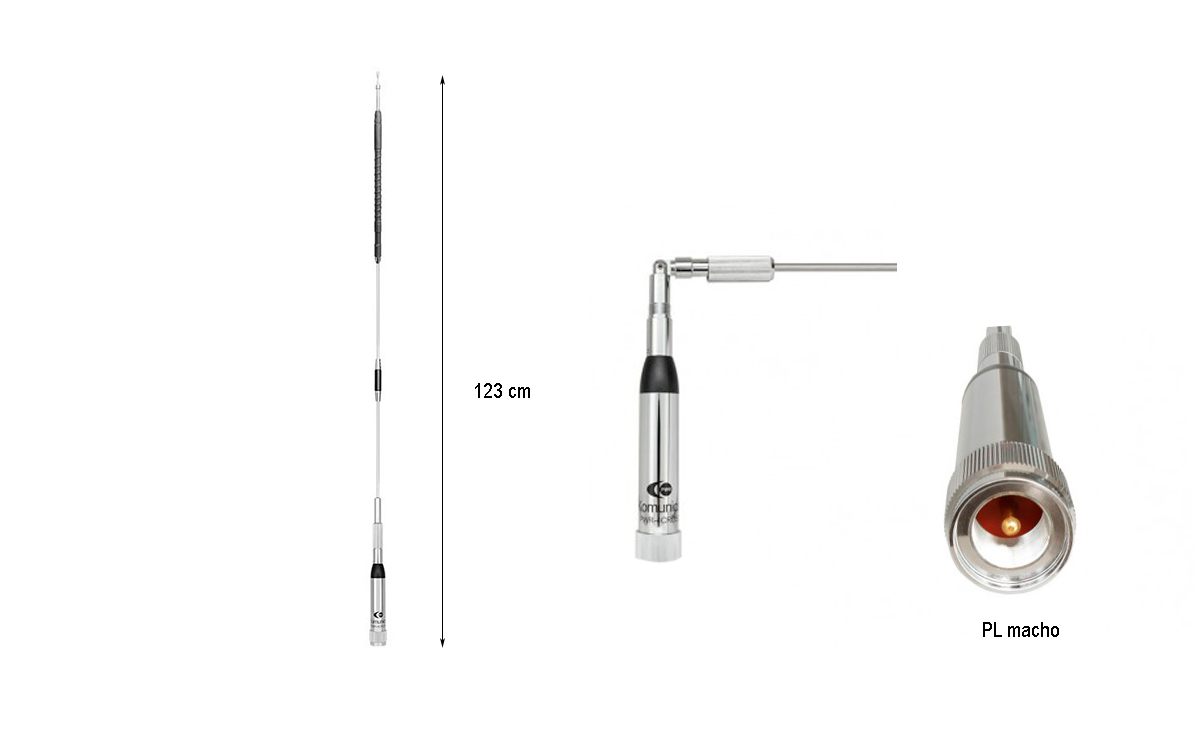

Antenna length 1.23 mts.

• 1 PWR-4CROSS Antenna

Characteristics

• Frequency 1/4 wave type (29/50MHz), 3/8 wave type (144MHz), 3/4 wave type (430MHz)
• Frequency range: 10m / 6m / 2m / 70cm
• Bands 29/50/144/430 Mhz
• Gain:2.15 dBi (10m, 6m, 2m) 5.5 dBi (430MHz)
• Omnidirectional radiation
• Vertical polarization
• Maximum power 60 watts.
• Impedance 50 ohm.
• Material rod stainless steel 17/7 PH
• Material Copper coil
• Length 1230 mm
• Weight 487 gr.
• ROESWR: 1.5
