KENWOOD TK-3180E UHF 407-470 MHz Hi-Specification FM Portable Radio

KENWOOD TK-3180E UHF 407-470 MHz Hi-Specification FM Portable Radio

Make the first review

677,60 VAT included 560,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Envio a partir de 2 días. Delivery price from 6,50€

Description TK31803EUHF

!! FOR QUANTITIES AND QUANTITIES, PLEASE INQUIRE !!



!! SPECTACULAR PRICES''

KENWOOD TK31803EUHF

PROFESSIONAL USE WALKIE-TYPE RADIO WITH 512 UHF CHANNELS 407-470 MHZ, PROGRAMMABLE VIA PC

Portable UHF 407-470 MHz, Priority Scan, VOX, Voice Inversion Segrafonia Included, 12.5-25 kHz Spacing, IP 54/55 and MIL-STD 810/C/D/E/F, Voice Channel Indication, Belt Clip, Antenna.

!! The customer must provide the frequencies to be entered into the walkie-talkie !!

Includes:

KENWOOD TK 3180E 1 KNB33 LITHIUM BATTERY 1 KSC-32E FAST CHARGER 1 ANTENNA 1 BELT CLIP.

Frequency range: 407-470 MHz
512 channels
Output power 5 watts
LCD Display and Keyboard
Transparent Data Mode
Voice Encryptor Included
FleetSync/FleetSync II plus 5-Tone, QT and DQT Signaling
Programming and adjustment via PC

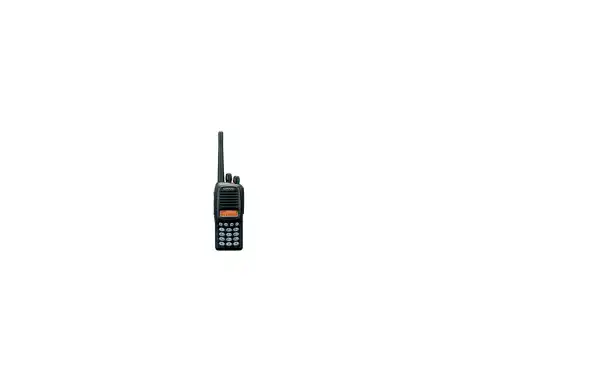

KENWOOD TK 2180E
KENWOOD TK 2180EKENWOOD TK 2180E

CHARACTERISTICS

Technical Specifications

Frequency range - Type E 407-470 MHz
Number of channels 512
Channel frequency dispersion 70 MHz
Channel spacing Width: 25 kHz Medium: 20 kHz Width: 12.5 kHz
Antenna impedance - 50 Ohm Yeah

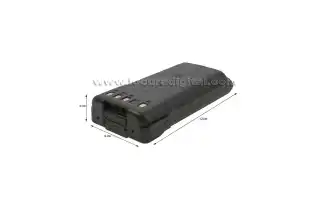

Battery life With KNB-31A: 9 hours With KNB-32N: 14 hours With KNB-33L: 10 hours - 5-5-90 duty cycle -
Battery voltage 7.5 V DC ± 20%
Frequency Tolerance ± 2.5 ppm (-30 °C to 60 °C)
Operating temperature -30 °C to 60 °C
PLL increments per channel 5.0 kHz/6.25 kHz
Dimensions Transceiver: 58 x 136 x 21.50 mm With KNB-31A: 58 x 136 x 39.50 mm With KNB-32N: 58 x 136 x 39.50 mm With KNB-33L: 58 x 136 x 33 mm - Projections not included -
Net weight Transceiver: 260 g With KNB-31A: 530 g With KNB-32N: 560 g With KNB-33L: 400 g

Receiver specifications

Adjacent channel selectivity 73 dB at 25 kHz 73 dB at 20 kHz 63 dB at 12.5 kHz
Audio output power 500 mW distortion less than 3%
Circuitry – Double Conversion Superheterodyne Yeah
Intermodulation Wide/Medium/Narrow: 65 dB
Sensitivity - EIA 12 dB SINAD 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.32 µV at 12.5 kHz
Sensitivity - EN 20 dB SINAD -3 dBµV at 25 kHz -3 dBµV at 20 kHz -2 dBµV at 12.5 kHz
Spurious response rejection 70 dB

Transmitter specifications

RF output power (High/Low) 5 W / 1 W
FM noise (EIA) 45 dB at 25 kHz 45 dB at 20 kHz 40 dB at 12.5 kHz
Microphone impedance 2000 Ohm
Modulation distortion Less than 3%
Modulation limitation ±5.0 kHz to 25 kHz ±4.0 kHz to 20 kHz ±2.5 kHz to 12.5 kHz
Spurious emission (EN) -36 dBm %u2264 1 GHz -30 dBm > 1 GHz
