HYTERA HP-565 V1 Professional Walkie Talkie VHF 136-174 Mhz DMR + Analog

The Hytera HP565 V1 is a professional handheld transceiver from Hytera Communications' HP5 series, designed to deliver secure, clear, and rugged communications in demanding environments. It operates in the VHF 136-174 MHz band and supports both a

Make the first review

432,15 VAT included 357,15€ excl. VAT

available. Envio a partir de 2 días. Delivery price from 30,25€

Description HYTERA HYTHP565V1

The Hytera HP565 V1 is a professional handheld transceiver from Hytera Communications ' HP5 series, designed to deliver secure, clear, and rugged communications in demanding environments. It operates in the VHF 136-174 MHz band and supports both analog and digital (DMR) modes, facilitating the gradual migration from traditional systems to modern digital networks.

Thanks to its ruggedized design and IP67 rating, the HP565 is protected against dust and water, making it ideal for industrial, security, transportation, event, or emergency use. It also meets the MIL-STD-810G military standard, ensuring reliability under extreme temperature, humidity, and vibration conditions.

The Hytera HP565 combines ruggedness with advanced technology: it features a color display, an intuitive user interface, a USB-C port for charging and programming, and optional features such as Bluetooth and GPS. Its 1,500 mAh lithium-ion battery offers approximately 15 hours of runtime on a 5/5/90 cycle, enough for a full workday.

hytera hp565 u1 walkie 400-470 mhz digital dmr-análogico antena 9 cm

Some of the features offered by the Hytera HP565 are:

  • Dual operation: analog + digital (DMR)
  • Operating frequency: VHF136-174 MHz
  • Up to 512 channels and 32 programmable zones
  • Transmission power: 1 W (low) / 4 W (high)

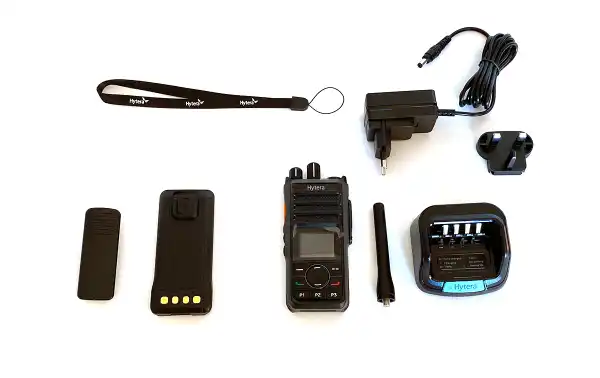

What does the Hytera HP565 include?
  • 1 Hytera HP565 VHF Radio
  • 1 Original Hytera UHF Antenna

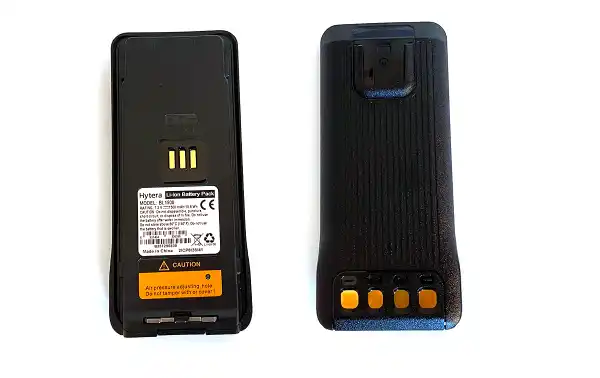

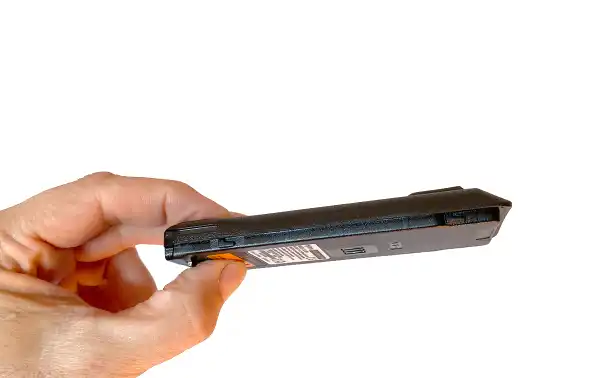

  • 1 1,500 mAh Li-ion battery ref.BL1508
  • 1 Belt Clip
  • 1 Wrist strap

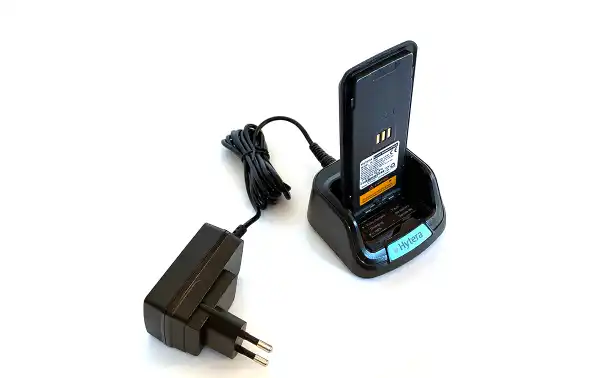

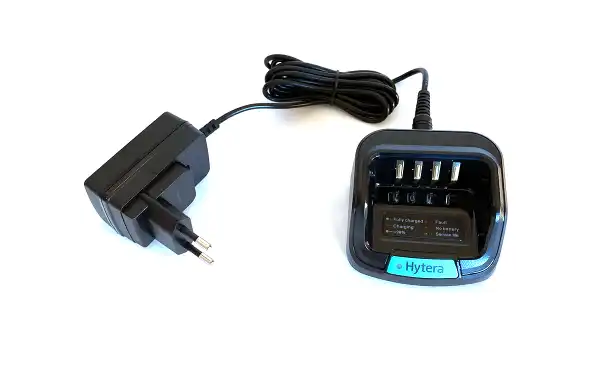

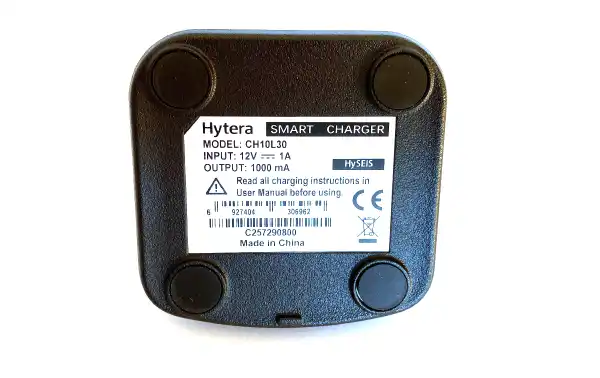

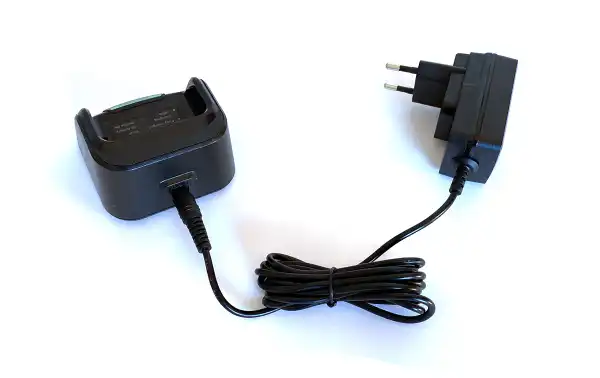

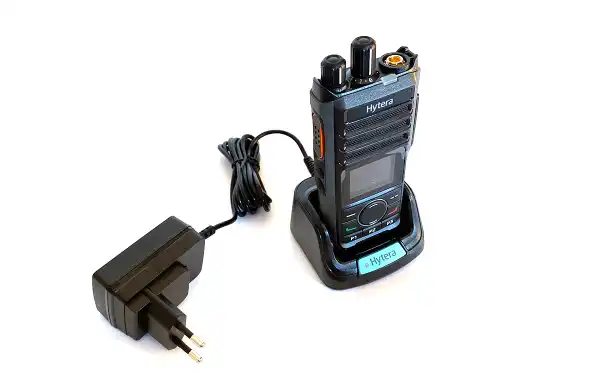

  • 1 Desktop charger with power adapter
  • Quick User Guide

Technical and mechanical characteristics

  • Manufacturer: Hytera Communications Co., Ltd.
  • Model: HP565VHF
  • Type: Professional digital/analog portable radio
  • Frequency: VHF 136-174 MHz
  • Operating modes: Analog + Digital DMR Tier II
  • Programmable channels: up to 512
  • Memory zones: up to 32
  • Operating voltage: 7.4 V nominal
  • Battery: Li-ion 1,500 mAh (optional 2,000 mAh)
  • Estimated autonomy: 15 hours (5/5/90 cycle)
  • Dimensions (H×W×D): 119 × 55 × 30.5 mm
  • Weight: ~270 g (with battery and antenna)
  • Protection: IP67 / MIL-STD-810G

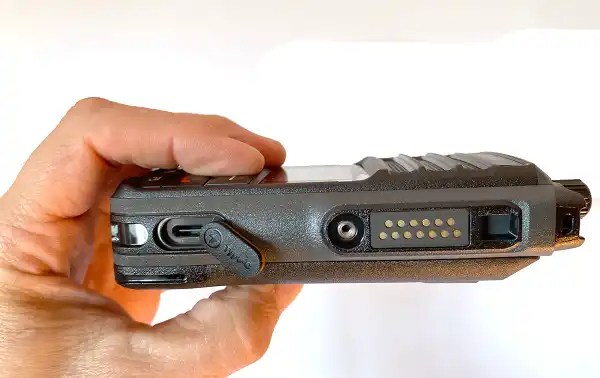

  • Interface: USB-C / Multi-pin side connector for accessories
  • Operating temperature: –30 °C to +60 °C
  • Color: Professional black
  • Audio: High-power speaker with noise cancellation
  • Recommended use: industry, security, transportation, logistics and events
  • Release year: 2023
  • Manufactured and certified by Hytera Communications Ltd.
