HYTERA BP565 U1 IP67 walkie UHF 400 to 470 Mhz.Digital + Analog
HYTERA BP565 U1 IP67 Professional UHF 400-470 MHz Walkie Talkie. Digital DMR + Analog. Color Display. IP67 Protection Rating. The Hytera HP565 U1 is a professional handheld transceiver from the Hytera Communications HP5 series, designed to offer comm moreManufacturer:hyteraReference HYTBP565U1IP67
The Hytera HP565 U1 is a professional handheld transceiver from Hytera Communications ' HP5 series, designed to deliver secure, clear, and rugged communications in demanding environments. It operates in the UHF band (400470 MHz) and supports both analog and digital (DMR) modes, facilitating the gradual migration from traditional systems to modern digital networks.
Thanks to its ruggedized design and IP67 rating, the HP565 is protected against dust and water, making it ideal for industrial, security, transportation, event, or emergency use. It also meets the MIL-STD-810G military standard, ensuring reliability under extreme temperature, humidity, and vibration conditions.
The Hytera HP565 combines ruggedness with advanced technology: it features a color display, an intuitive user interface, a USB-C port for charging and programming, and optional features such as Bluetooth and GPS. Its 1,500 mAh lithium-ion battery offers approximately 15 hours of runtime on a 5/5/90 cycle, enough for a full workday.
Some of the features offered by the Hytera HP565 are:
Dual operation: analog + digital (DMR)
Operating frequency: UHF 400470 MHz
Up to 512 channels and 32 programmable zones
Transmission power: 1 W (low) / 4 W (high)

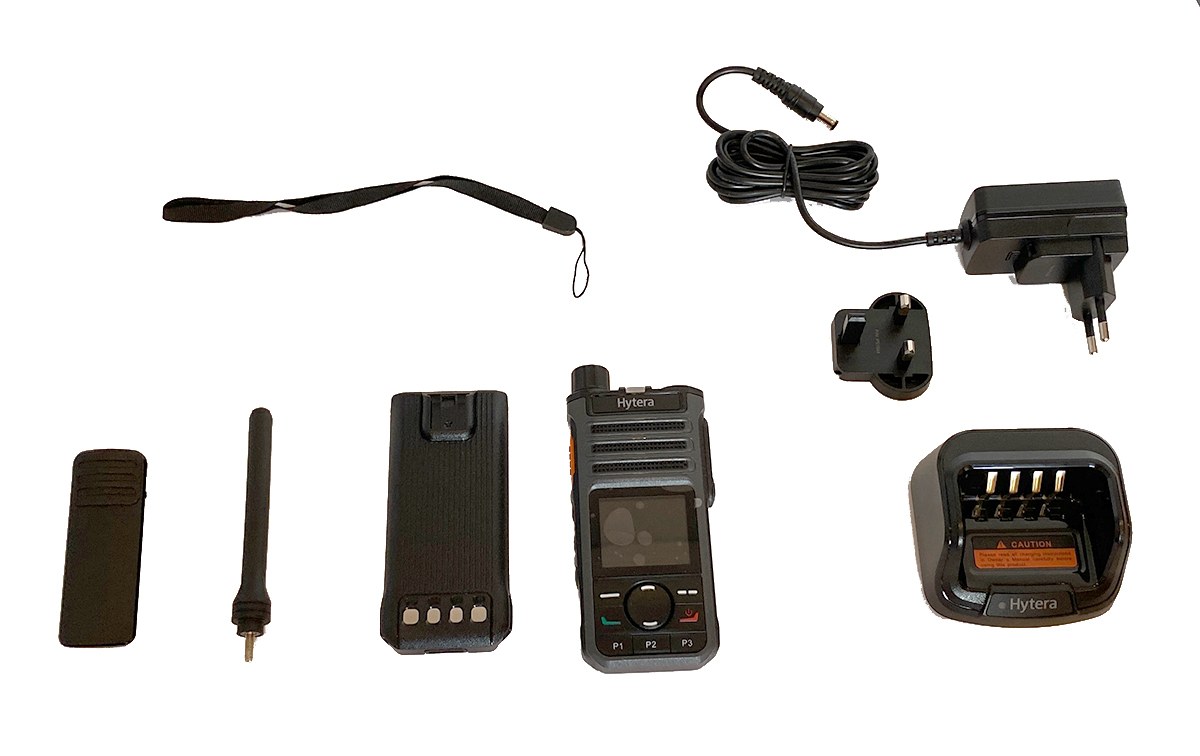

What does the Hytera HP565 include?
1 Hytera HP565 Radio (UHF 400470 MHz)
1 Original Hytera UHF Antenna
1 1,500 mAh Li-ion battery ref.BL1508
1 Belt Clip
1 Wrist strap

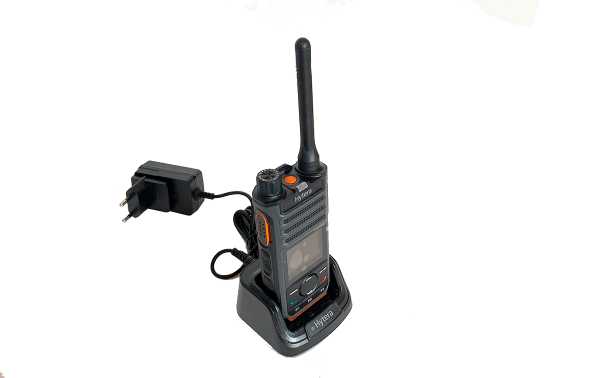

1 Desktop charger with power adapter
Quick User Guide
Technical and mechanical characteristics
Manufacturer: Hytera Communications Co., Ltd.
Model: HP565 UHF
Type: Professional digital/analog portable radio
Frequency: UHF 400470 MHz
Operating modes: Analog + Digital DMR Tier II
Programmable channels: up to 512
Memory zones: up to 32
Operating voltage: 7.4 V nominal
Battery: Li-ion 1,500 mAh (optional 2,000 mAh)
Estimated autonomy: 15 hours (5/5/90 cycle)
Dimensions (H×W×D): 119 × 55 × 30.5 mm
Weight: ~270 g (with battery and antenna)
Protection: IP67 / MIL-STD-810G
Interface: USB-C / Multi-pin side connector for accessories
Operating temperature: 30 °C to +60 °C
Color: Professional Black
Audio: High-power speaker with noise cancellation
Recommended use: industry, security, transportation, logistics and events
Estimated price: 480 (VAT included)
Release year: 2023
Manufactured and certified by Hytera Communications Ltd.
