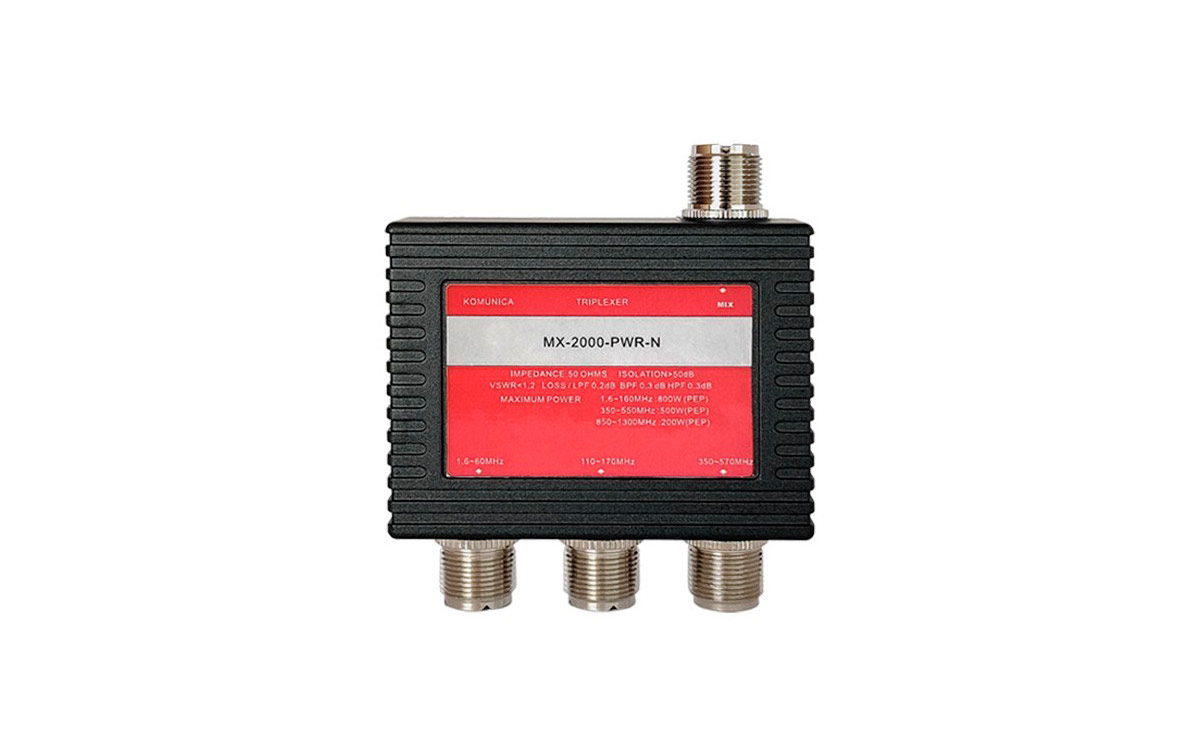

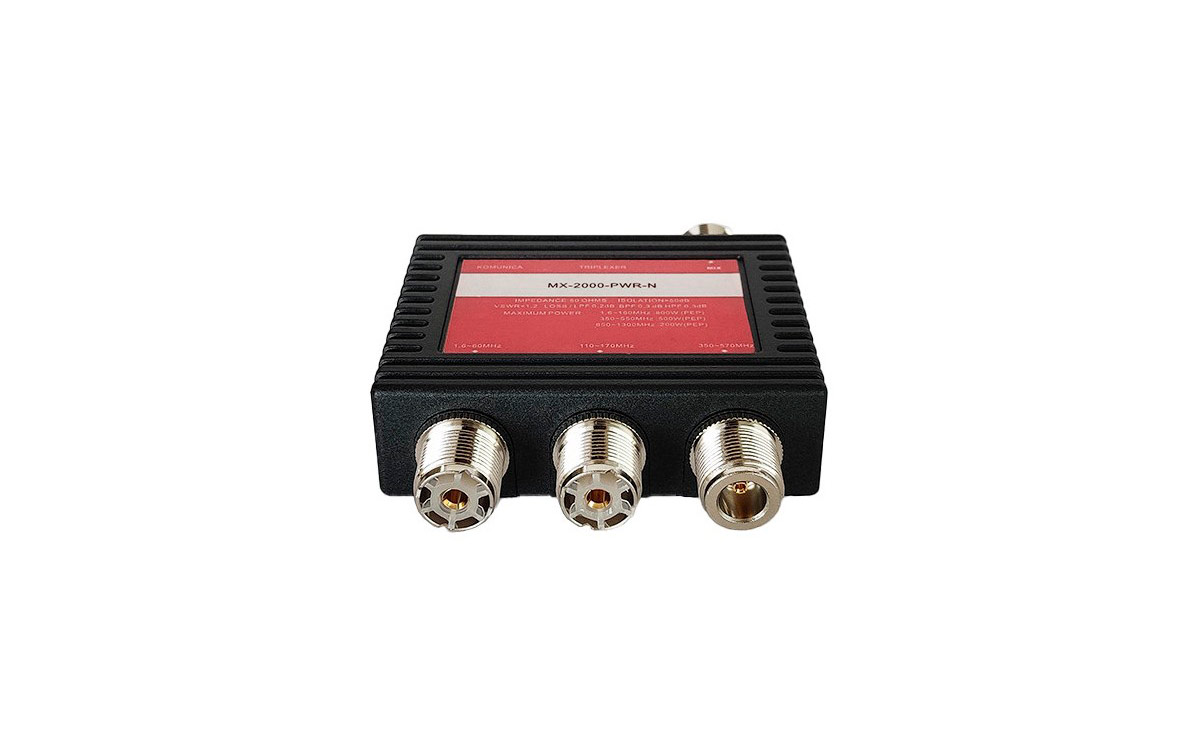

MX-2000-PWR-D Triplexer 1.6 to 60 Mhz / 110 to 170 Mhz / 350 to 570 Mhz

MX-2000-PWR-N

The KOMUNICA MX-2000-PWR-D is a triplexer that provides the ability to operate in three different frequency ranges using a single antenna. This device is especially useful in amateur radio and communications applications where the flexibility to transmit and receive in multiple frequency bands is essential.

Compatible Frequency Ranges:

Frequencies 1.6 to 60 MHz: This frequency range covers from 1.6 megahertz to 60 megahertz. It is commonly used in the HF (high frequency) band and is important for shortwave amateur radio communication, among other applications.

Frequencies 110 to 170 MHz: This frequency range covers from 110 megahertz to 170 megahertz. It is suitable for communications in the VHF (Very High Frequency) band and can include VHF amateur radio applications as well as civil band radio services.

Frequencies 350 to 570 MHz: This frequency range extends from 350 megahertz to 570 megahertz. It is common in the UHF (Ultra High Frequency) band and can include mobile communication applications, such as public safety services and commercial communications.

The MX-2000-PWR-D triplexer allows radio signals from these three different frequency ranges to be routed and combined, simplifying installation and avoiding the need for multiple antennas or complicated configurations. This is beneficial in situations where efficient transmission and reception across multiple frequency bands is required without the need to use multiple antennas.

Characteristics

• A Frequency 1.6 -160 Mhz
• A PL female connector
• A Power 800 watts
• B Frequency 110-170 Mhz
• B PLfemale connector
• B Power 800 watts
• C Frequency 300- 570 Mhz
• C N female connector
• C Power 500 watts
• F Female PL input connector
• B PL female connector
• C N female connector
• F Connector on Chassis female PL input
• Impedance 50 ohms
• Metallic box
• Dimensions 86 x 27 x 65 mm
• Weight 300 gr.
